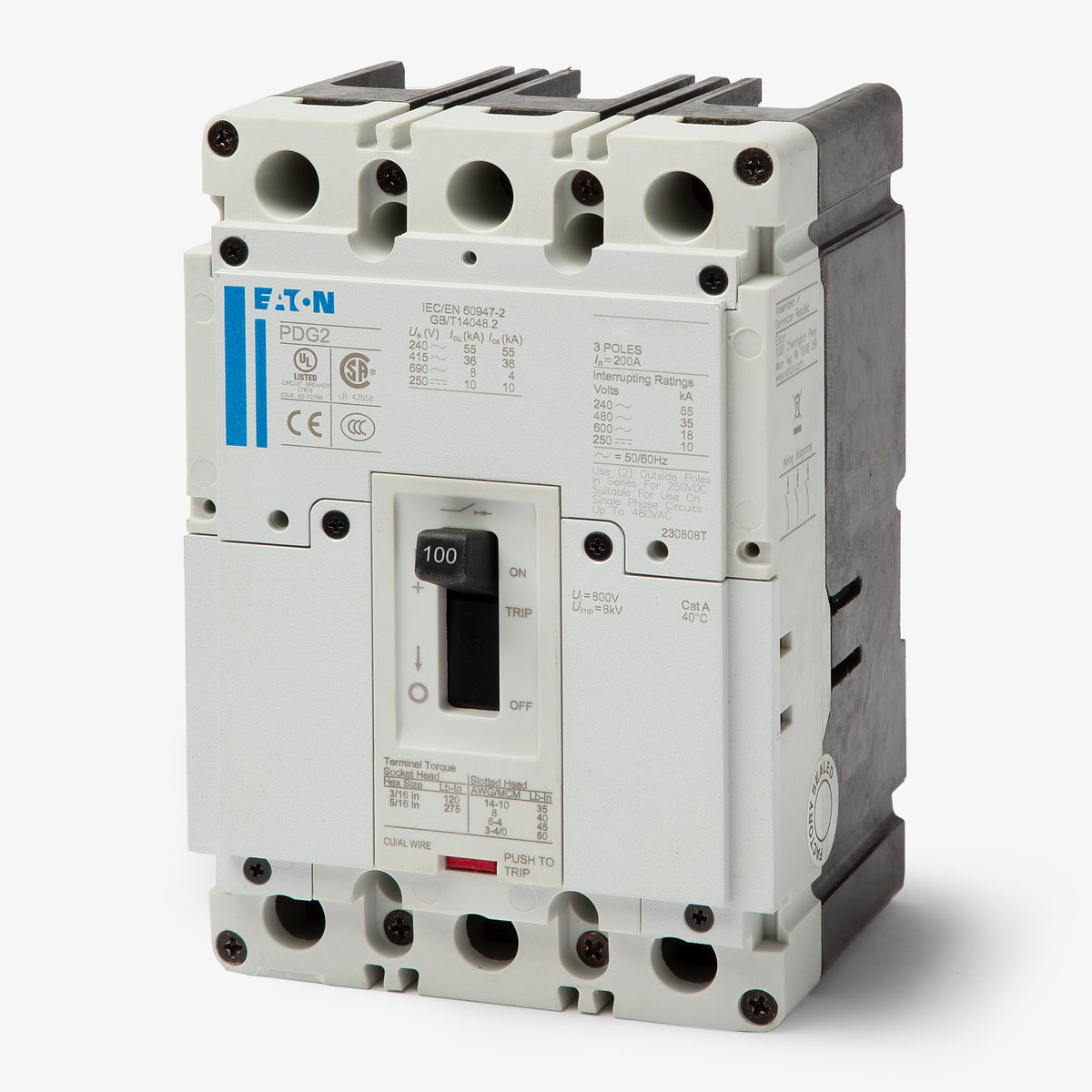

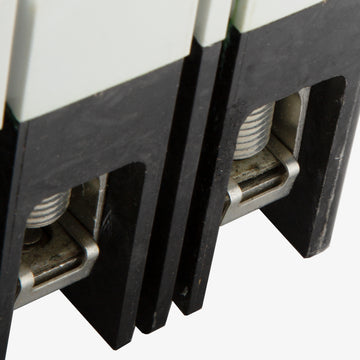

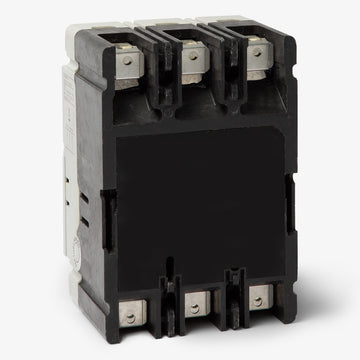

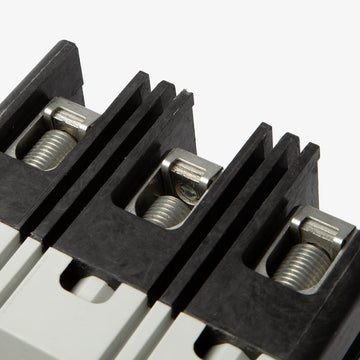

Eaton / Cutler-Hammer PDG23G0100TFFL Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0100TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0100TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0100TFFL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG23G0100TFFL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Handle Mechanism |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDG23G0100TFFL - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Handle Mechanism |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0100TFFL
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0110TFFL
110A 3 Pole Molded Case Circuit Breaker
Description
Constructed for heavy-duty applications, this 3-pole, 100A molded case circuit breaker belongs to the Eaton Power Defense Frame 2 series. It delivers robust overcurrent protection for 600VAC commercial and industrial networks. The unit installs into Eaton panelboards, switchboards, and enclosures. Facility managers can use this breaker as a direct substitute for discontinued FD3100 models. It provides a 35kAIC rating at 480V, fixed thermal-magnetic trip functions, and load-side lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Handle Mechanism |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhat legacy circuit breaker does the PDG23G0100TFFL directly replace?
This Power Defense Frame 2 unit is the direct, modern upgrade path for the discontinued Eaton Series C FD3100 molded case circuit breaker. When upgrading, you will need the appropriate Power Defense mounting hardware, as the physical mounting arrangement differs from the legacy Series C platform.
What does the L suffix in the PDG23G0100TFFL catalog number signify?
The L suffix indicates that this breaker ships with standard wire terminals (lugs) on the load side only. This is the correct configuration when the line side of the breaker will connect directly to a panelboard or switchboard bus.
Can I adjust the trip settings on the PDG23G0100TFFL?
No. This breaker is equipped with a fixed thermal and fixed magnetic trip unit, denoted by the TFF designation in the catalog number. It provides reliable, non-adjustable long-time and instantaneous (LI) overload and short-circuit protection.
What does the G stand for in the PDG23G0100TFFL catalog number?
The G designates Eaton's globally rated interrupting capacity for this specific frame. In this case, it indicates a high interrupting rating of 35 kAIC at 480VAC, making it suitable for standard commercial and industrial power distribution systems.
Does the PDG23G0100TFFL accept both aluminum and copper wiring?
Yes. The factory-installed load-side lugs are dual-rated for both aluminum and copper conductors, accepting wire sizes ranging from 14 AWG up to 1/0 AWG.
