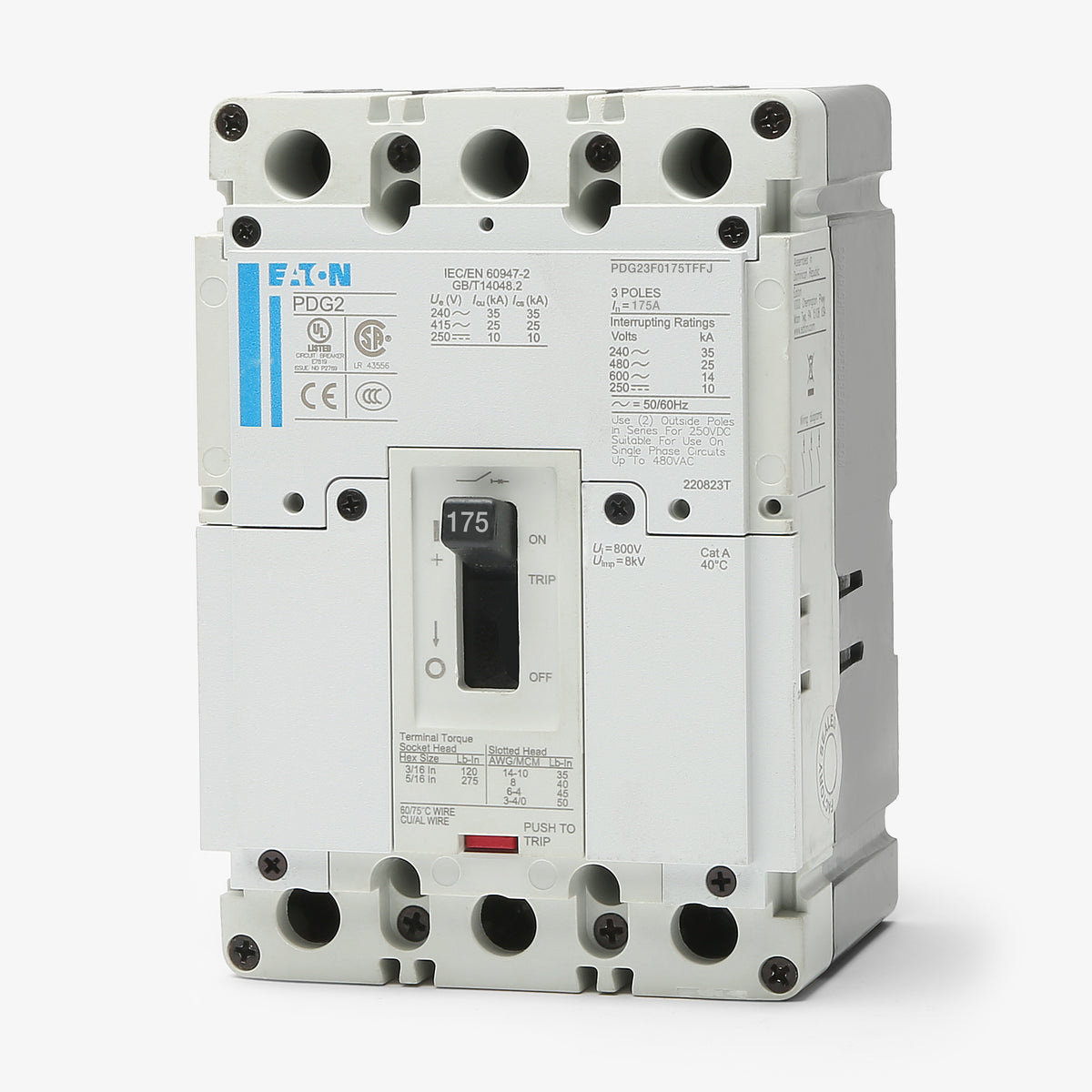

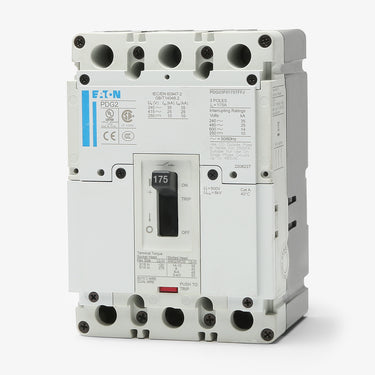

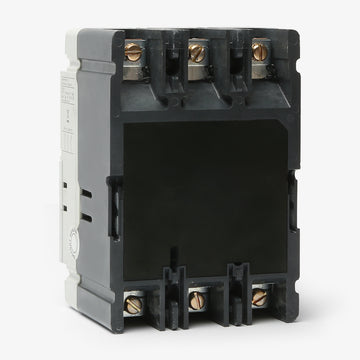

Eaton / Cutler-Hammer PDG23F0175TFFJ Molded Case Circuit Breaker
- 175A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0175TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0175TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23F0175TFFJ - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0175TFFJ
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0175TFFL
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23F0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Description
Operating within the Power Defense Frame 2 family, the Eaton PDG23F0175TFFJ is a 3-pole, 175A molded case circuit breaker. It is engineered for commercial, industrial, and marine environments requiring dependable power distribution up to 600VAC. This unit mounts into Eaton Power Defense enclosures and panelboards. For maintenance scenarios, it acts as a seamless cross-reference replacement for the older FDB3175.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0175TFFJ |
| Series | PDG2 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |

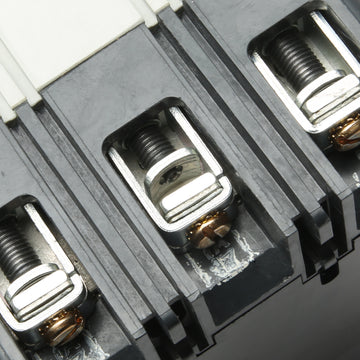

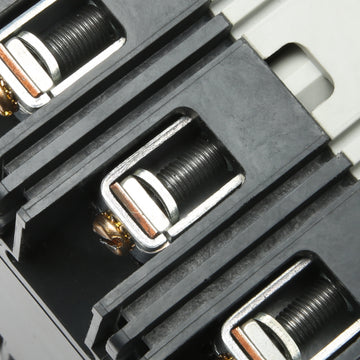

| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Enclosures, Panelboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Terminal Shields, Padlock Attachment |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Global Ratings, Current Limiting, Molded Case Circuit Breaker |
Product FAQs
7 answersWhich legacy Cutler-Hammer circuit breaker does the PDG23F0175TFFJ replace?
This Power Defense Frame 2 breaker acts as a direct cross-reference replacement for the older FDB3175 molded case circuit breaker.
How do I mount the PDG23F0175TFFJ onto a DIN rail?
Although it features a standard panel mount design, you can install this Frame 2 breaker onto a DIN rail by using a compatible Eaton adapter, such as part number PDG2XDIN75.
Is the PDG23F0175TFFJ compatible with standard Eaton panelboards?
Yes, this 175A breaker is engineered for seamless integration into Eaton Power Defense enclosures and standard commercial panelboards.
What does the TFFJ designation mean in the PDG23F0175TFFJ catalog number?
The TFFJ suffix indicates that the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic settings, along with standard line and load side lugs.
What wire material and gauge can be used with the terminals on this breaker?
The factory-installed lugs are rated for both aluminum and copper conductors, accepting wire sizes from 4 AWG up to 4/0 AWG.
Does this Power Defense Frame 2 breaker provide adjustable trip settings?
No, the PDG23F0175TFFJ features a fixed thermal and fixed magnetic trip unit. It provides reliable Long-Time and Instantaneous (LI) protection without the need for field adjustments.
What global safety standards does the PDG23F0175TFFJ meet?
As part of the globally rated Power Defense platform, this breaker meets major industry safety standards including UL 489, CSA, IEC 60947-2, and CCC.
