Eaton / Cutler-Hammer PDG23G0175TFFJ Molded Case Circuit Breaker
- 175A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0175TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0175TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

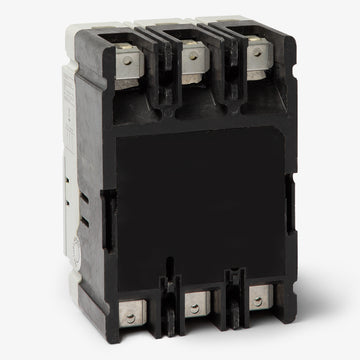

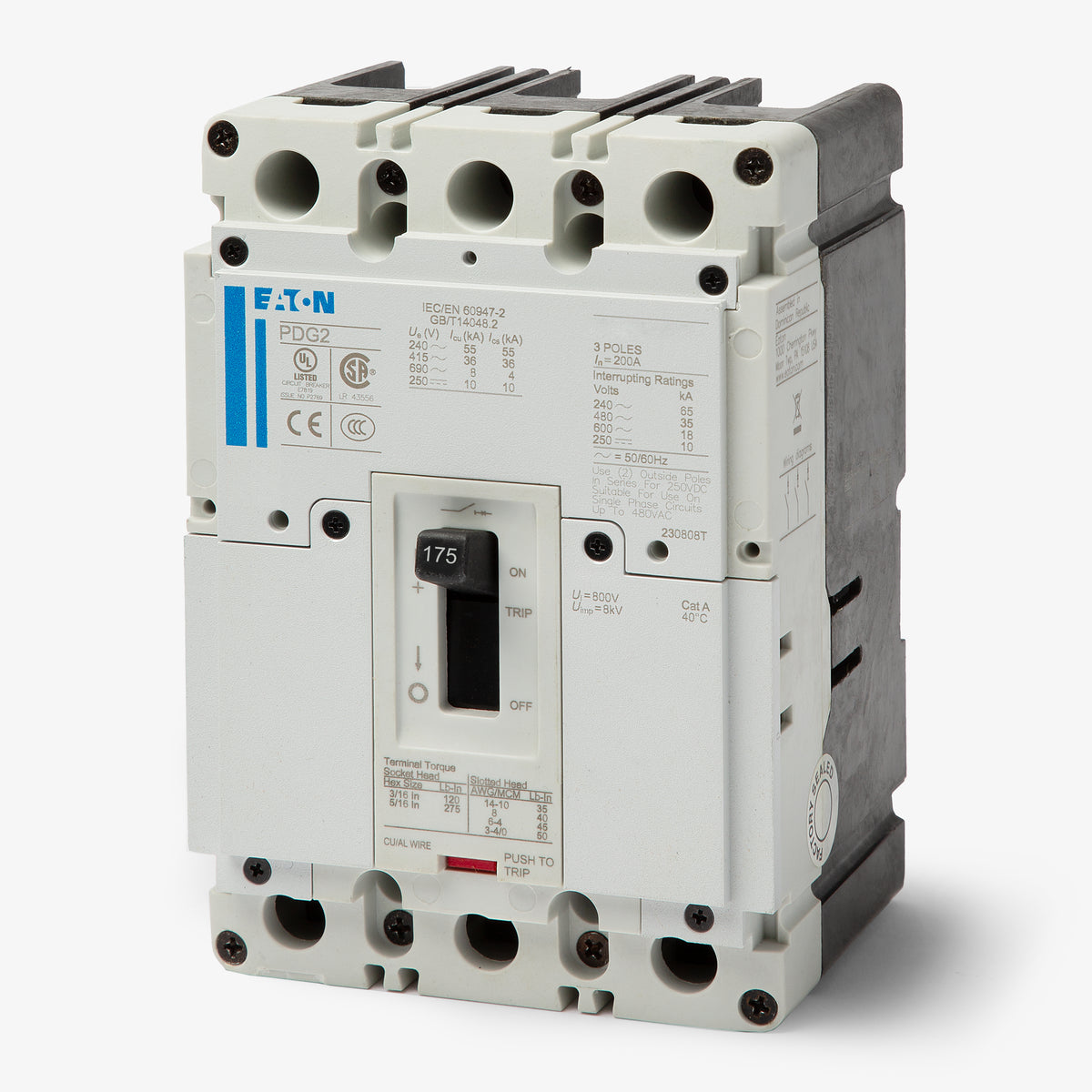

Eaton / Cutler-Hammer PDG23G0175TFFJ - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0175TFFJ
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0175TFFL
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Description
Operating within the Power Defense Frame 2 family, this 175A, three-pole circuit breaker utilizes fixed thermal and magnetic trip units. It offers dependable fault clearing for marine and commercial facilities. The PDG23G0175TFFJ integrates smoothly into modern Eaton panelboards while replacing discontinued HFD3175 and JGE3175FA breakers. Standard line and load lugs come pre-installed for efficient wiring. Capable of interrupting 35kA at 480VAC, the current-limiting device maintains high safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0175TFFJ |
| Series | PDG2 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant |
Product FAQs
8 answersWhat does the J suffix indicate in the PDG23G0175TFFJ catalog number?

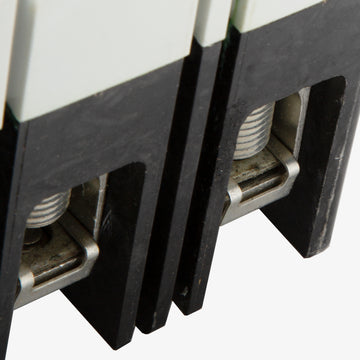

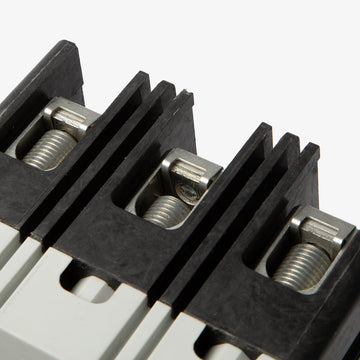

The J suffix indicates that this circuit breaker is factory-equipped with standard pressure-type line and load lugs. These terminals are sized to accept 4 AWG to 4/0 AWG conductors.
Can I replace a legacy Eaton Series C FD3175 breaker with this Power Defense model?
Yes, the Power Defense Frame 2 series serves as the direct replacement for legacy Series C F-frame breakers, including FD and HFD models. The physical footprint is highly similar, and terminal lugs can often be interchanged between the two frames.
Can I reuse my existing Series C accessories on this Power Defense breaker?
No. While the breaker itself is the modern replacement for Series C F-frame models, internal accessories like shunt trips and auxiliary contacts, as well as external accessories like handle mechanisms, are not cross-compatible. You must source Power Defense-specific accessories for the PDG2 frame.
Are the thermal or magnetic trip settings adjustable on the PDG23G0175TFFJ?
No. The TFF designation in the part number indicates a thermal-magnetic trip unit with fixed thermal and fixed magnetic (instantaneous) settings. Neither the long-time nor the instantaneous trip points can be field-adjusted.
What equipment is this breaker designed to be installed in?
It is designed to integrate seamlessly into Eaton Power Defense panelboards (such as the Pow-R-Line Xpert series), switchboards, and dedicated enclosures. If retrofitting this breaker into an older legacy Cutler-Hammer panelboard, a new Power Defense connector kit will be required.
Is this 175A breaker rated for 100 percent continuous load?
No. Standard PDG (Power Defense Global) breakers carry an 80 percent continuous current rating per UL guidelines. For continuous loads lasting three hours or more, the total load must not exceed 80 percent of the 175A rating. Eaton uses the PDF prefix for their 100 percent rated equivalents.
Does this breaker support direct current (DC) systems?
Yes. It is rated for up to 250VDC with a 10kA interrupting capacity. Proper installation requires wiring multiple poles in series according to Eaton manufacturer guidelines to safely break the DC arc.
Can the standard line and load lugs be removed for busbar connections?
Yes. The included standard lugs can be unbolted and removed to expose the breaker terminals, allowing for direct connection to panelboard busbars or the installation of alternate terminal options such as spreaders or multi-wire lugs.
