Eaton/Cutler-Hammer PDG23G0175TFFL Circuit Breaker
Eaton/Cutler-Hammer
PDG23G0175TFFL
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG23G0175TFFL
Quantity
Core Specs
See full specsShop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23G0175TFFL 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23G0175TFFL 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Eaton/Cutler-Hammer |
| Amperage | 175 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Load Side Terminals (PDG2X3TA225) |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Quantity
Eaton/Cutler-Hammer PDG23G0175TFFL 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Eaton/Cutler-Hammer |
| Amperage | 175 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Load Side Terminals (PDG2X3TA225) |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0175TFFJ
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0175TFFL
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Description

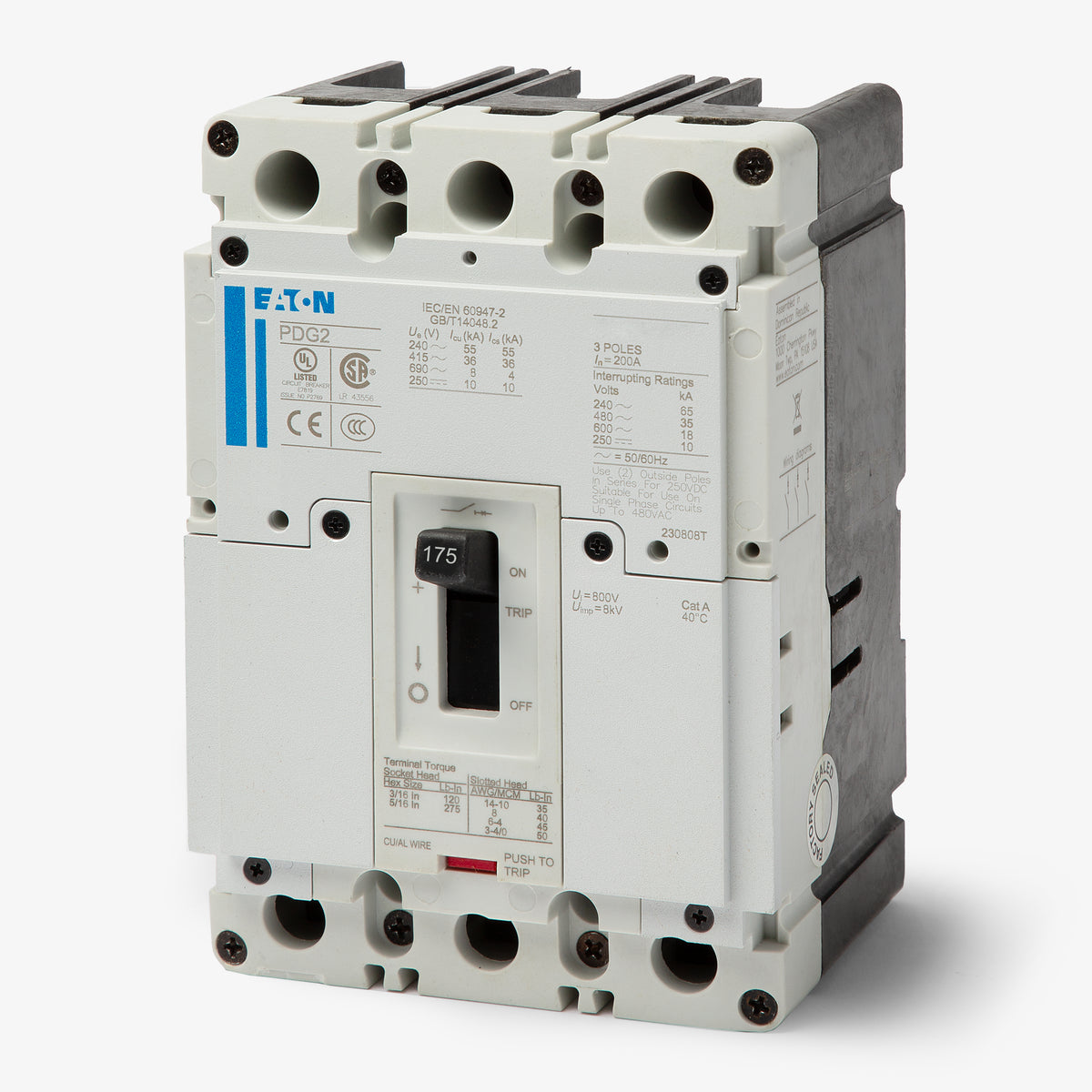

Eaton/Cutler-Hammer PDG23G0175TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23G0175TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 175 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0175TFFL includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Eaton/Cutler-Hammer |
| Amperage | 175 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Load Side Terminals (PDG2X3TA225) |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs

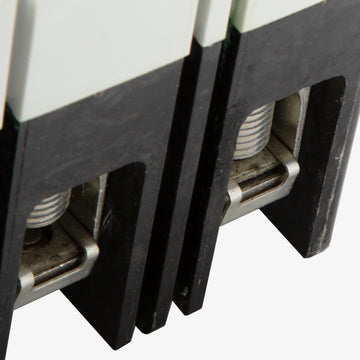

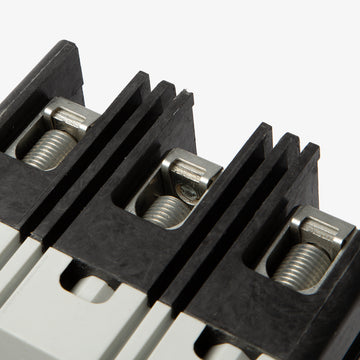

6 answersWhat wire sizes and materials do the standard lugs on the PDG23G0175TFFL accept?
The factory-installed standard line and load lugs accept 4 AWG to 4/0 AWG conductors and are rated for use with both aluminum and copper wire.
Can the trip settings on this Power Defense circuit breaker be adjusted in the field?
No, this breaker is equipped with a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip thresholds are permanently set at the factory and cannot be modified.
Is this Eaton circuit breaker suitable for direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for DC applications with an interrupting capacity of 10kA at 250VDC.
Which panelboards are compatible with the PDG23G0175TFFL?
This Frame 2 circuit breaker is designed for panel mount installation directly into compatible Eaton Power Defense panelboards and switchboards.
What does the TFFL suffix in the catalog number signify?
In Eaton Power Defense nomenclature, TFF indicates a fixed thermal and fixed magnetic trip unit, while the L signifies that the breaker comes equipped with standard line and load side lug terminals.
Does this catalog number represent a fully assembled unit or just the frame?
The PDG23G0175TFFL ships as a complete breaker, meaning the Frame 2 base and the trip unit are fully assembled from the factory and ready for installation.
