Eaton / Cutler-Hammer PDG23F0225TFFJ Molded Case Circuit Breaker
- 225A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0225TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0225TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

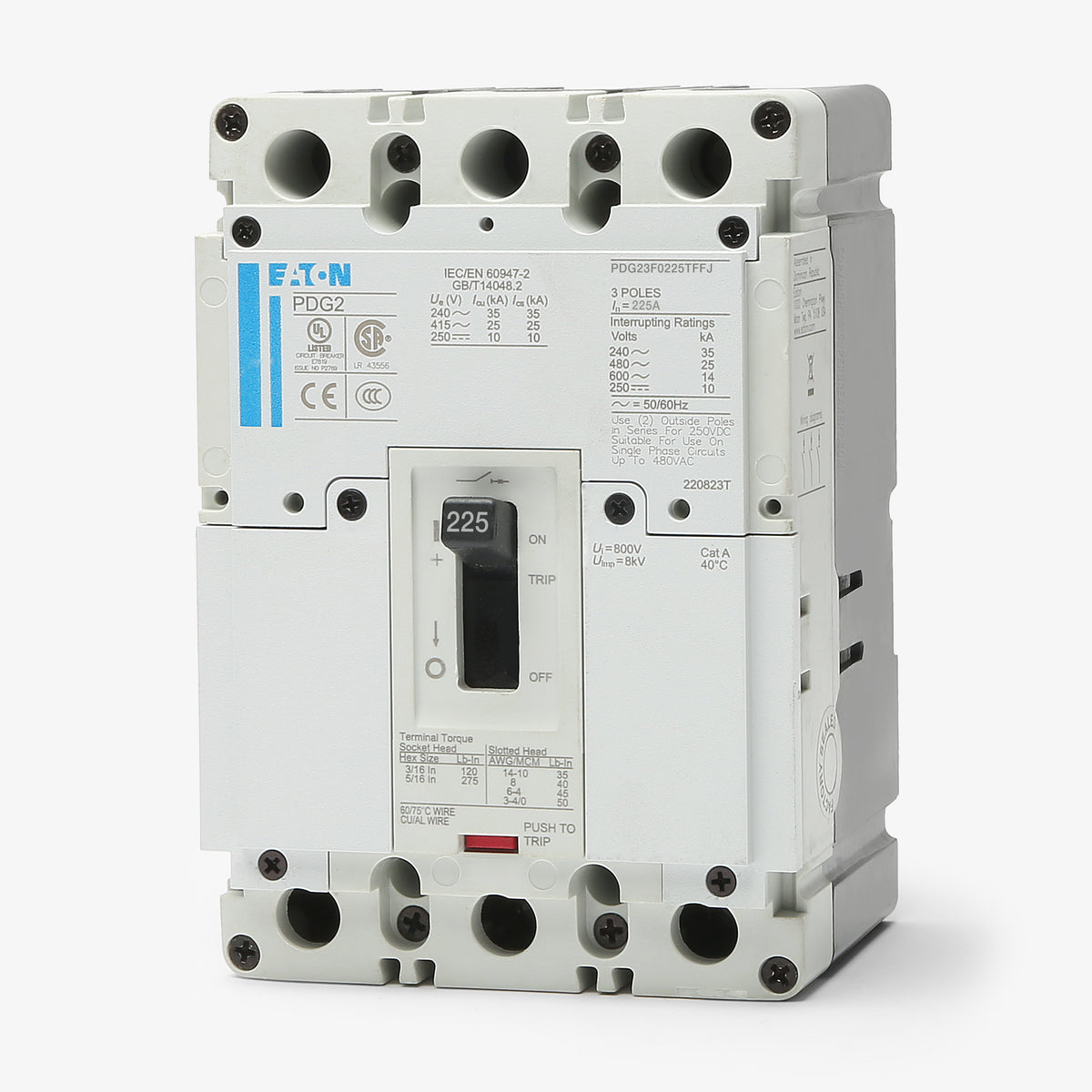

Eaton / Cutler-Hammer PDG23F0225TFFJ - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton/Cutler-HammerPDG23G0225TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23G0225TFFJ
225A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0225TFFL
225A 3 Pole Molded Case Circuit Breaker
Description
Providing 225 amps of reliable power distribution, the Eaton PDG23F0225TFFJ is a Frame 2 MCCB designed for commercial and industrial use. It utilizes a fixed thermal-magnetic (LI) trip mechanism to protect against overloads and short circuits across three phases. This panel-mount breaker integrates into Eaton Power Defense switchboards and enclosures. It provides a seamless upgrade path for aging FDB3225 units. Featuring a 25 kAIC rating at 480VAC, it comes standard with line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0225TFFJ |
| Series | PDG2 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Handle Mechanism |
|---|---|

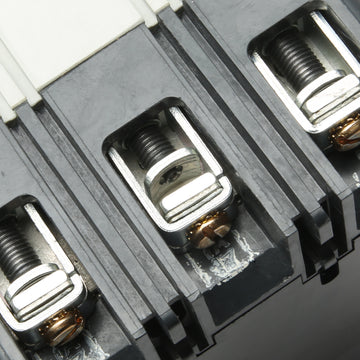

| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
7 answersCan the PDG23F0225TFFJ be used to replace older Cutler-Hammer FDB breakers?
Yes, this Power Defense Frame 2 breaker provides a direct upgrade path for aging FDB3225 units. It offers modern protection while fitting similar footprint requirements.
What type of wire connections are standard on the PDG23F0225TFFJ?
This breaker comes standard with line and load lugs that accept 4 AWG to 4/0 AWG aluminum or copper wire. Ensure proper torque specifications are followed during installation.
Is the trip unit on the PDG23F0225TFFJ adjustable?
No, this model features a fixed thermal and fixed magnetic (LI) trip unit. If your application requires adjustable long-time or instantaneous settings, you will need a breaker with an electronic trip unit.
Which enclosures and panels are compatible with this 225A breaker?
The PDG23F0225TFFJ is designed for integration into Eaton Power Defense panelboards, switchboards, and compatible industrial enclosures.
Can this Eaton Frame 2 breaker be used in DC applications?
Yes, it is rated for up to 250VDC with a 10kAIC interrupting capacity, making it suitable for specific direct current systems alongside its standard AC ratings.
What global safety standards does the Power Defense PDG23F0225TFFJ meet?
The Power Defense series is a globally accepted platform. It carries certifications for UL, CSA, IEC, and CCC standards, ensuring compliance across multiple regions.
What does the F designate in the PDG23F0225TFFJ catalog number?
In the Eaton Power Defense nomenclature, the F indicates an interrupting rating of 25kAIC at 480VAC.
