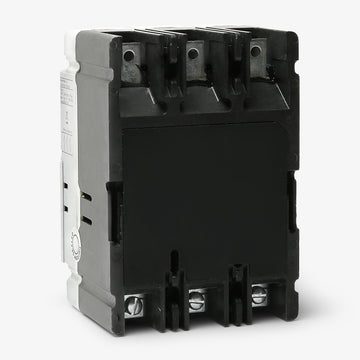

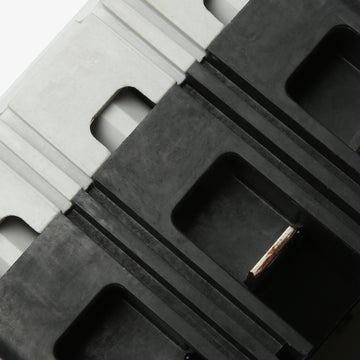

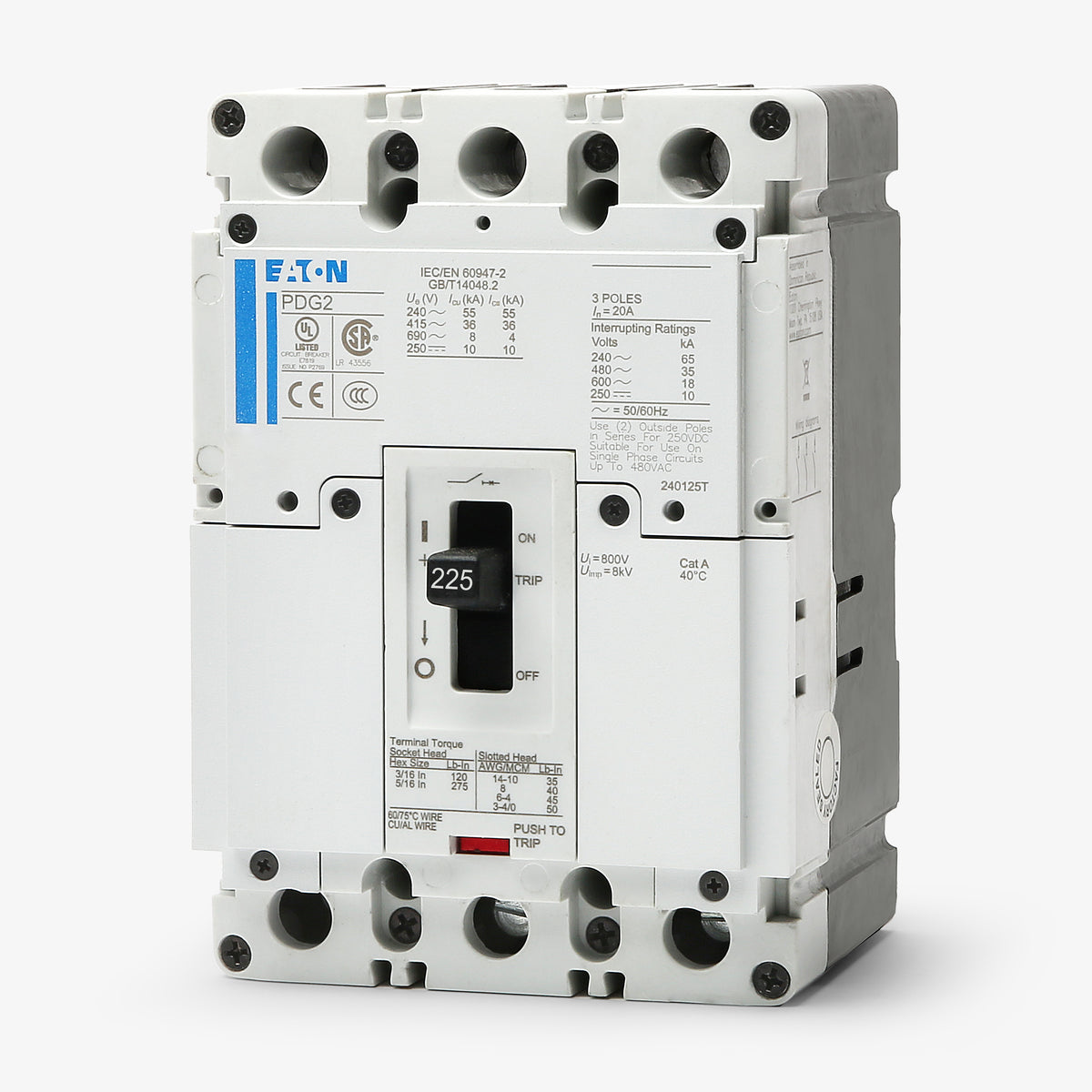

Eaton / Cutler-Hammer PDG23G0225TFFJ Molded Case Circuit Breaker
- 225A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0225TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0225TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0225TFFJ - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton/Cutler-HammerPDG23M0225TFFJ
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0225TFFL
225A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23P0225TFFL
225A 3 Pole Molded Case Circuit Breaker
Description
Part of the advanced Power Defense Frame 2 series, this 225A molded case circuit breaker delivers 35kAIC interrupting capacity at 480VAC. It installs into Eaton switchboards and enclosures, coming standard with line and load lugs for immediate wiring. Designed to modernize commercial electrical systems, it seamlessly replaces older Series C FD3225 and Series G EGS3225FFG models while maintaining the same physical footprint. Global ratings ensure compliance across diverse industrial applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0225TFFJ |
| Series | PDG2 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Enclosures, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Handle Mechanism |
|---|---|

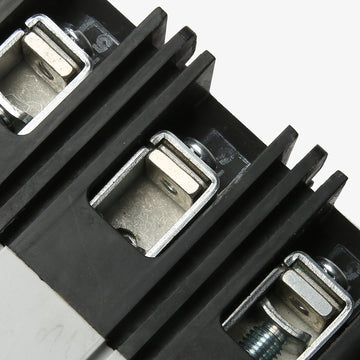

| Accessories | Line and Load Lugs Included (PDG2X3TA225K) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant, Global Rated |
Product FAQs
5 answersWhat enclosures and panelboards are compatible with the PDG23G0225TFFJ?
This Power Defense Frame 2 breaker is designed for installation in Eaton Power Defense enclosures, Pow-R-Line panelboards, and compatible switchboards.
What wire sizes are accepted by the standard lugs on this 225A breaker?
The included line and load lugs accept aluminum or copper conductors ranging from 4 AWG to 4/0 AWG.
Are the thermal and magnetic trip settings adjustable on the PDG23G0225TFFJ?
No, this model features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without field adjustability.
Can the Power Defense PDG23G0225TFFJ replace older Eaton or Cutler-Hammer breakers?
Yes, the Power Defense Frame 2 series is designed to modernize commercial electrical systems. It can seamlessly replace older Series C FD3225 and Series G EGS3225FFG models while maintaining the same physical footprint.
Does the PDG23G0225TFFJ support DIN rail mounting?
Yes, while it is primarily a panel mount breaker, the PDG23G0225TFFJ also supports DIN rail mounting for versatile installation in industrial control panels.
