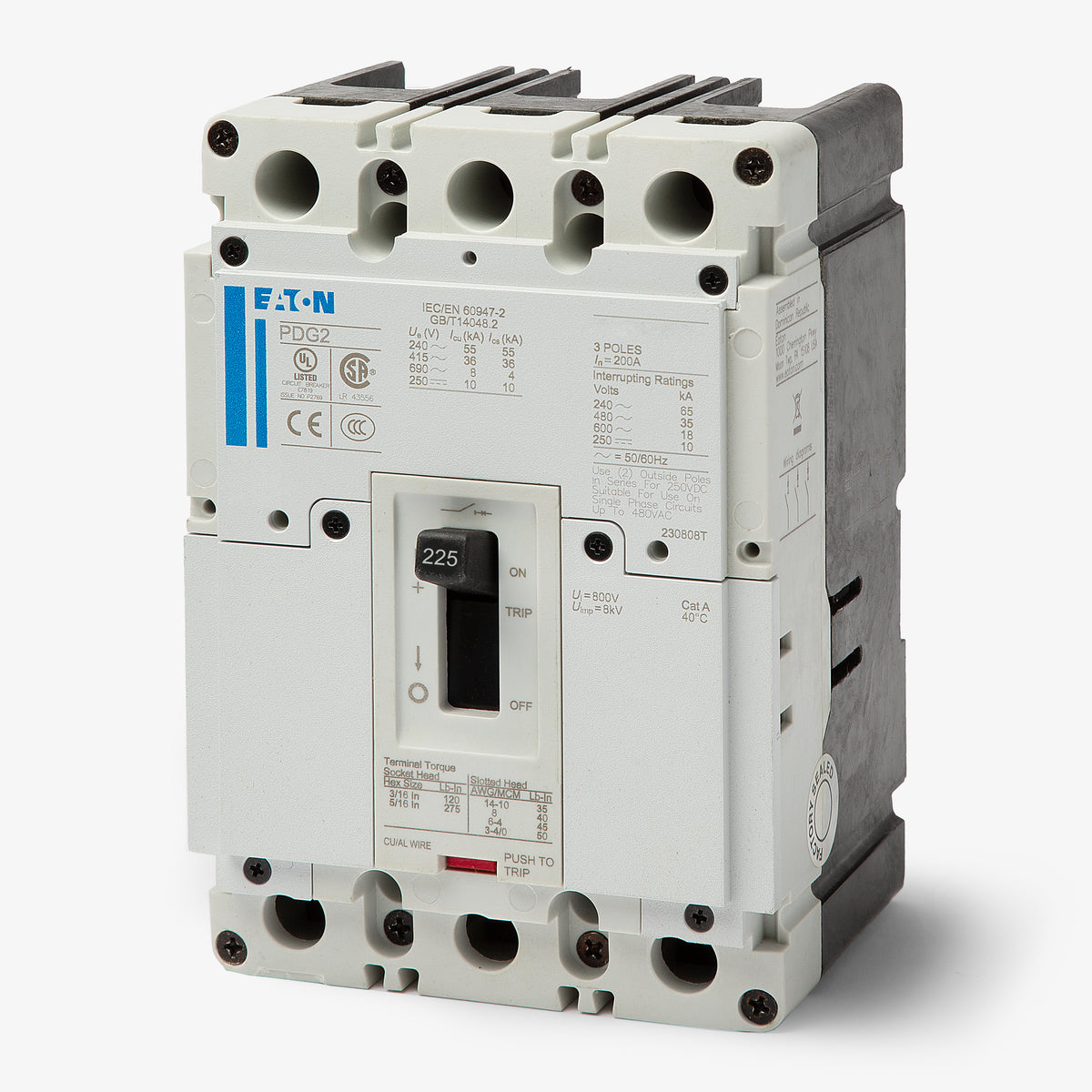

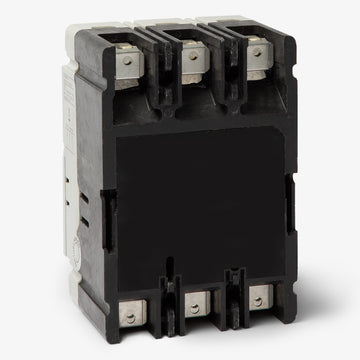

Eaton/Cutler-Hammer PDG23G0225TFFL Circuit Breaker
- 225A
- 3 Pole
- Panel Mount
Eaton/Cutler-Hammer
PDG23G0225TFFL
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG23G0225TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23G0225TFFL 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23G0225TFFL 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Quantity
Eaton/Cutler-Hammer PDG23G0225TFFL 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0225TFFL
225A 3 Pole Molded Case Circuit Breaker
Eaton/Cutler-HammerPDG23M0225TFFJ
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23P0225TFFL
225A 3 Pole Molded Case Circuit Breaker
Description
Eaton/Cutler-Hammer PDG23G0225TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23G0225TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 225 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 35kAIC at 480V. The PDG23G0225TFFL includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
5 answersCan I use the PDG23G0225TFFL to replace a legacy Cutler-Hammer Series C breaker?
Yes. The Power Defense PDG2 frame is a direct modern replacement for legacy Eaton and Cutler-Hammer Series C F-frame breakers. Because this specific unit has a 35kA interrupting rating at 480VAC, it is a direct match for replacing legacy FD type breakers such as the FD3225.
Is the PDG23G0225TFFL suitable for reverse feed applications?
Yes. Eaton Power Defense PDG2 thermal magnetic circuit breakers can be reverse fed or backfed in most applications. Always consult local codes and verify you are using the proper retaining brackets or hold-down kits required by the enclosure manufacturer when backfeeding.
What do the letters TFFL stand for in the part number PDG23G0225TFFL?
The TFFL suffix indicates the trip unit and terminal configuration. It stands for a thermal magnetic trip unit with fixed thermal and fixed magnetic settings, and standard load side lugs included.
What types of enclosures and equipment are compatible with the PDG23G0225TFFL?
This breaker is designed for use in Eaton Power Defense panelboards, switchboards, and enclosed circuit breaker housings. It is not physically compatible with older Series C panelboard handle mechanisms without using an updated kit.

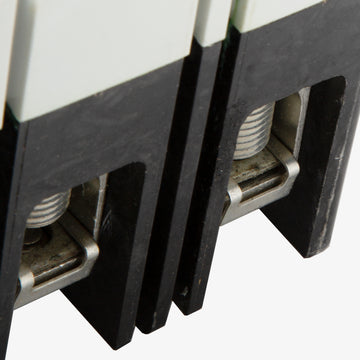

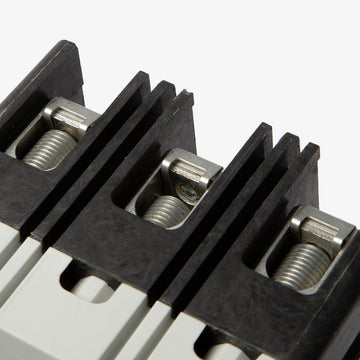

Does this breaker come with lugs on both the line and load sides?
No. The PDG23G0225TFFL comes with standard aluminum lugs on the load side only. The line side is configured for direct mounting to the bus in Eaton Power Defense panelboards and switchboards.
