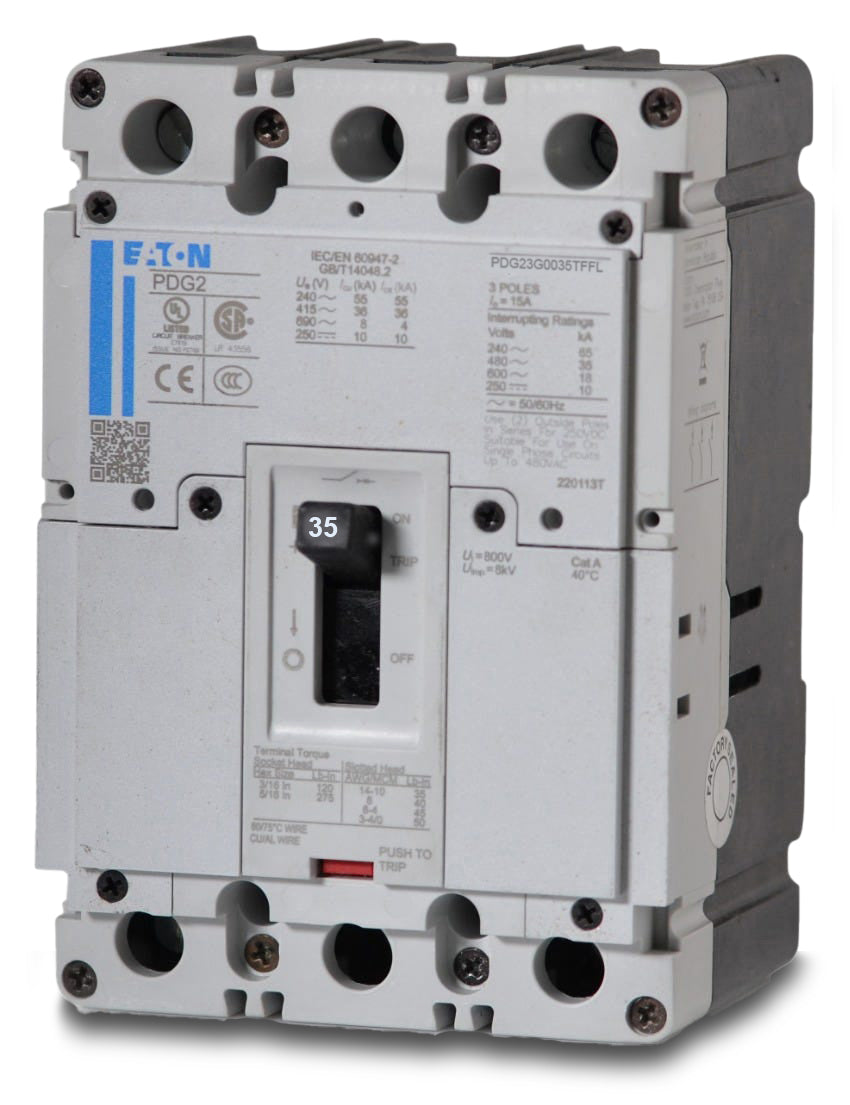

Eaton/Cutler-Hammer PDG23G0035TFFL Circuit Breaker
Eaton/Cutler-Hammer
PDG23G0035TFFL
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG23G0035TFFL
Quantity
Core Specs
See full specsShop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23G0035TFFL 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23G0035TFFL 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 35 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | AWG 14 to AWG 1/0 |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock, Terminal Shields, Multi-Wire Connector |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
Quantity
Eaton/Cutler-Hammer PDG23G0035TFFL 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 35 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | AWG 14 to AWG 1/0 |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock, Terminal Shields, Multi-Wire Connector |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
Similar Items
Eaton / Cutler-HammerPDG23G0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton/Cutler-HammerPDG23G0040TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Description

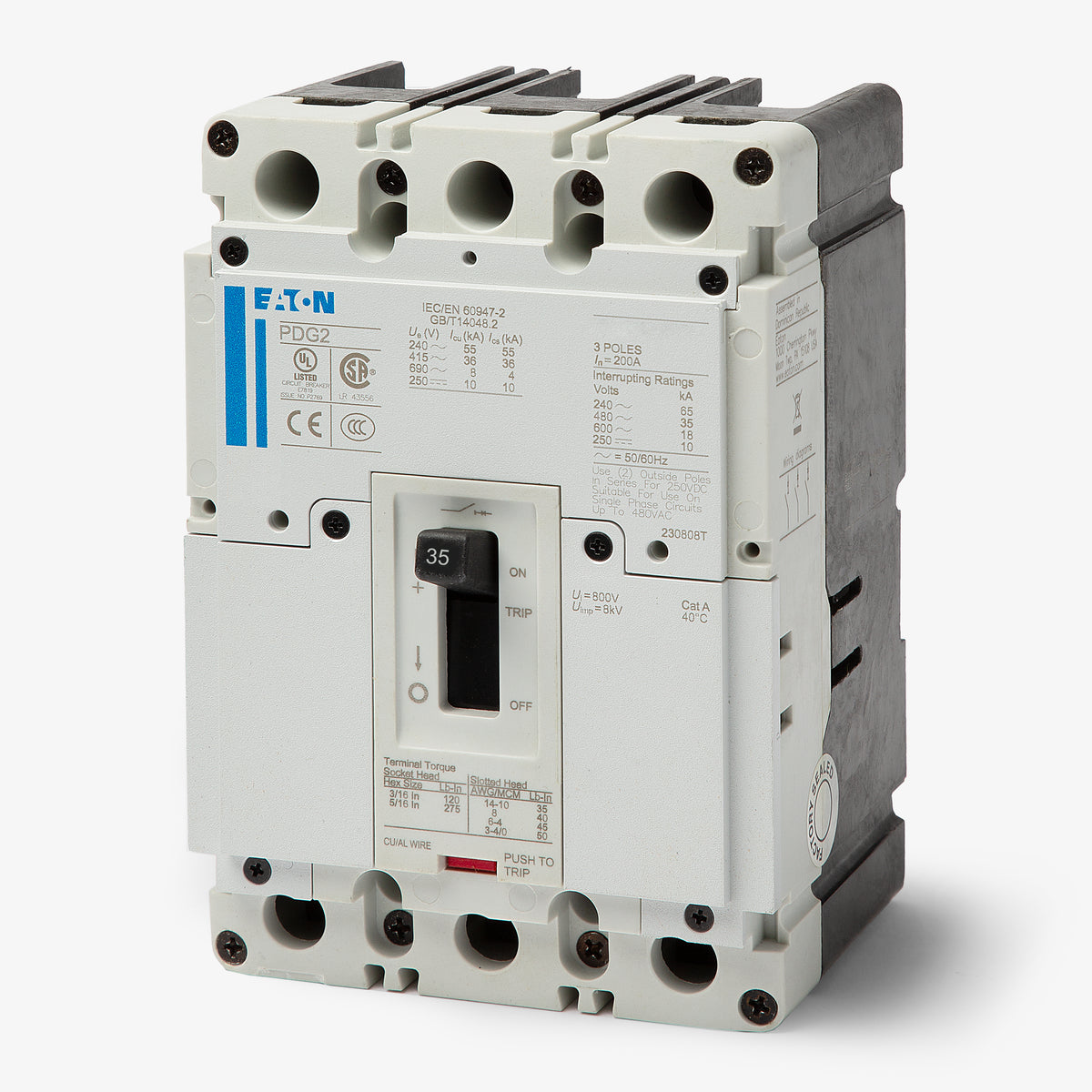

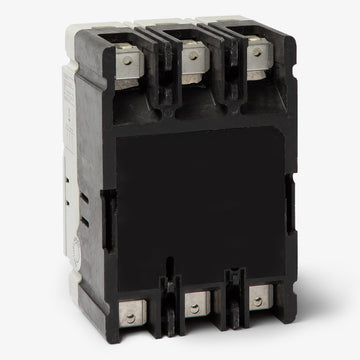

Eaton/Cutler-Hammer PDG23G0035TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23G0035TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 35 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0035TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 35 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | AWG 14 to AWG 1/0 |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock, Terminal Shields, Multi-Wire Connector |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
Product FAQs
5 answersCan the PDG23G0035TFFL replace older Eaton Series C breakers?
Yes, this Power Defense Frame 2 breaker serves as a direct replacement for discontinued 35-amp, 3-pole Series C F-Frame breakers, such as the FD3035. You will need to use updated Eaton mounting hardware when retrofitting this into existing equipment.
Can I install this Power Defense breaker in a legacy Pow-R-Line panelboard?
Yes, but you cannot use the existing Series C mounting hardware. UL requires the installation of a new Pow-R-Line Xpert connector kit to safely mount and connect the breaker in legacy assemblies.
What does the TFF in the PDG23G0035TFFL catalog number indicate?
The TFF designates the trip unit type. It specifies that the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic protection settings.
What type of protection does the LI trip function provide?
The LI designation indicates that the breaker provides Long-Time overload protection and Instantaneous short-circuit protection. Because this specific model has fixed settings, these trip thresholds cannot be adjusted in the field.
Are terminals included with the PDG23G0035TFFL?

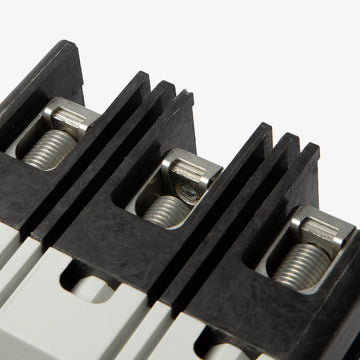

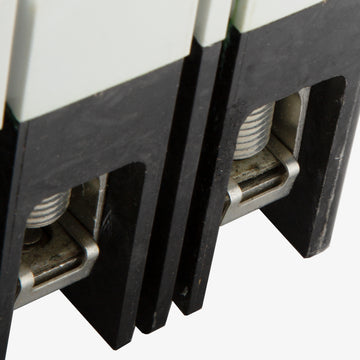

Yes, this breaker comes equipped with standard load-side lugs. Line-side connections are typically made via the bolt-on connector kit specific to your Eaton panelboard or switchboard.
