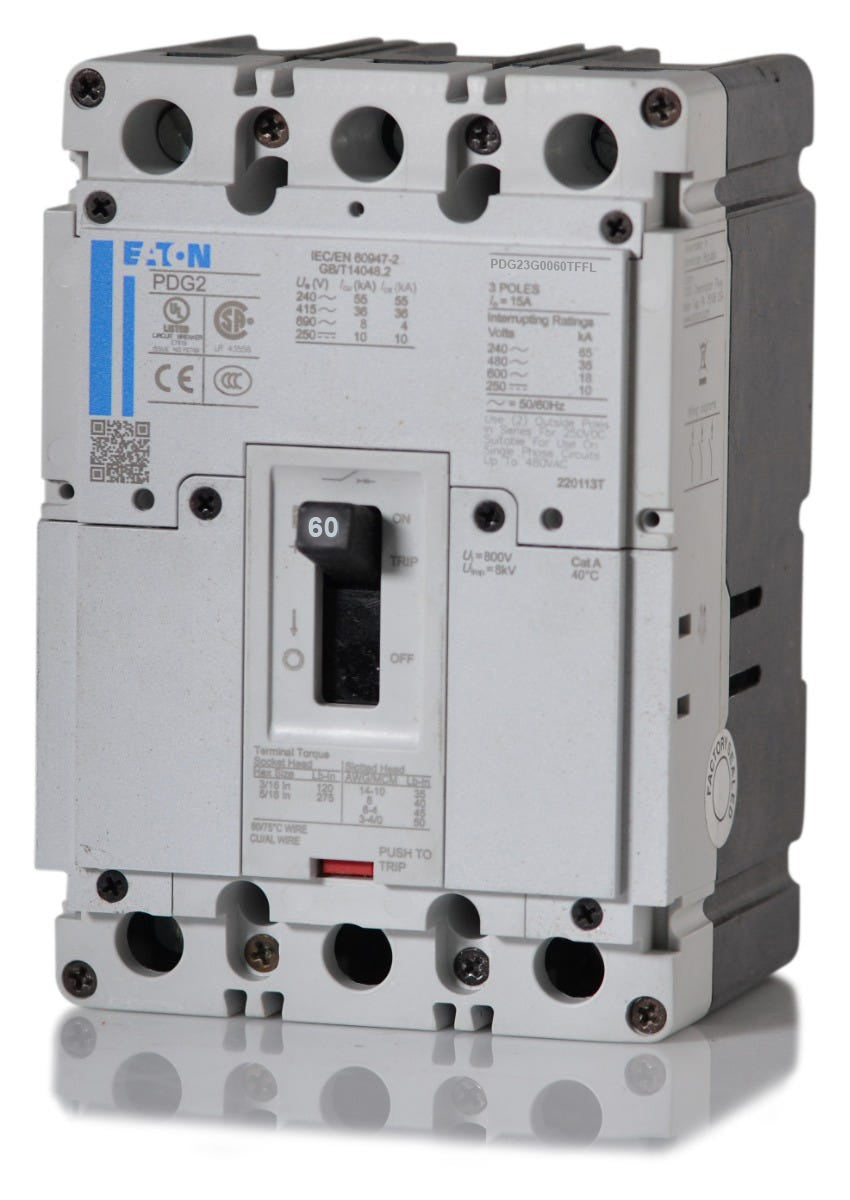

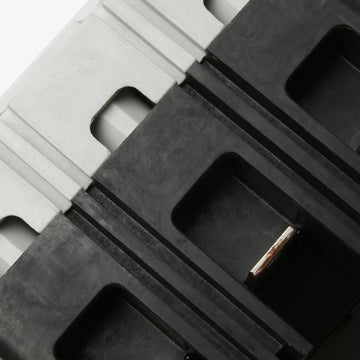

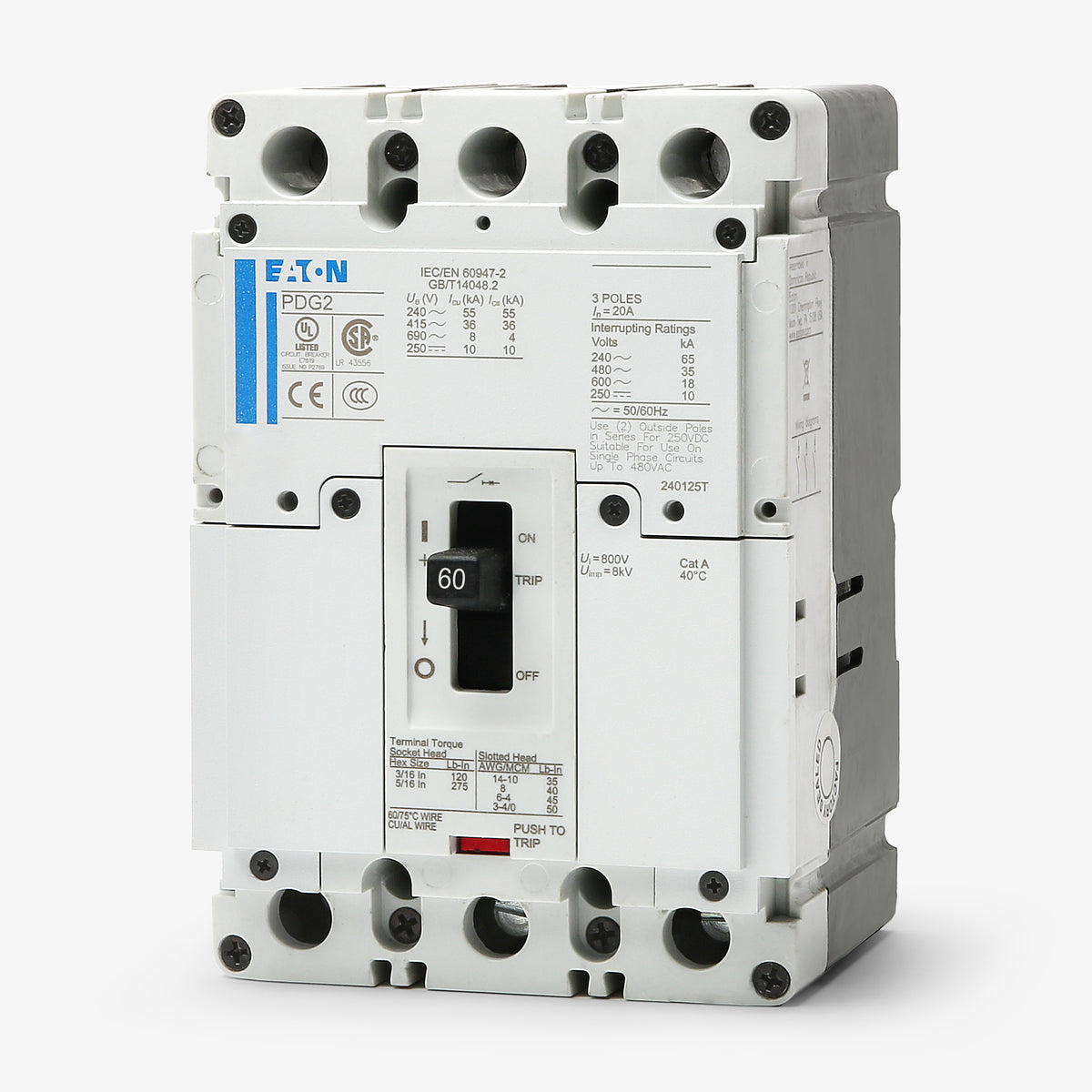

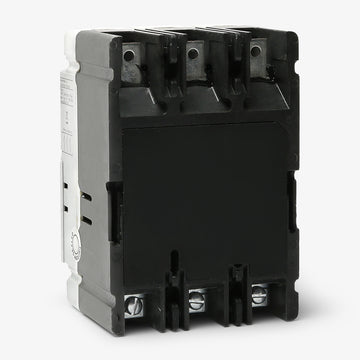

Eaton / Cutler-Hammer PDG23G0060TFFL Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0060TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0060TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0060TFFL - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG23G0060TFFL - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDG23G0060TFFL - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0060TFFL
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Description
Part of the advanced Power Defense series, the Eaton PDG23G0060TFFL is a 3-pole molded case circuit breaker designed for commercial, industrial, and marine environments. It delivers dependable performance for demanding electrical infrastructure. This Frame 2 MCCB mounts into Eaton Power Defense enclosures, Pow-R-Line panelboards, and switchboards. It seamlessly replaces legacy Series C (FD3060) and Series G (EGS3060FFG) breakers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
6 answersCan the PDG23G0060TFFL replace an older Series C breaker?
Yes, this Power Defense Frame 2 breaker is a direct drop-in replacement for legacy Series C F-Frame breakers, including the FD3060, as well as Series G EGS3060FFG models. It utilizes the same footprint for seamless upgrades in Eaton panelboards.
What does the G in the PDG23G0060TFFL catalog number indicate?
In Eaton's Power Defense nomenclature, the G designates the interrupting capacity. For this Frame 2 model, it signifies a rating of 35kAIC at 480VAC.
What do the letters TFF stand for in the part number?
The letters TFF indicate that the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic settings. This provides standard long-time and instantaneous (LI) overcurrent protection.

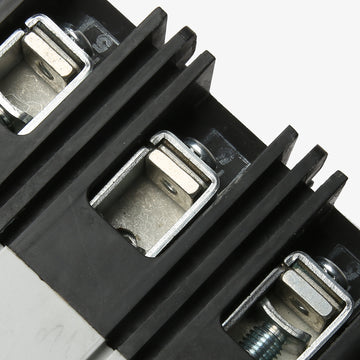

Why does this breaker specify load-side terminals only?
Because the PDG23G0060TFFL is a bolt-on breaker designed for Pow-R-Line panelboards, the line side bolts directly to the busbar. The L in the catalog number indicates it includes standard lugs on the load side, which accept 14 AWG to 1/0 AWG aluminum or copper wire.
Can this breaker be mounted on a DIN rail?
While its primary connection type is bolt-on for Eaton panelboards and switchboards, the Power Defense Frame 2 series can be adapted for DIN rail mounting in compatible enclosures using the appropriate Eaton mounting hardware.
Does this breaker provide adjustable trip settings?
No, the PDG23G0060TFFL features fixed thermal and fixed magnetic trip settings. If your application requires adjustable overcurrent protection, you will need a Power Defense model equipped with an electronic trip unit, such as the PXR series.
