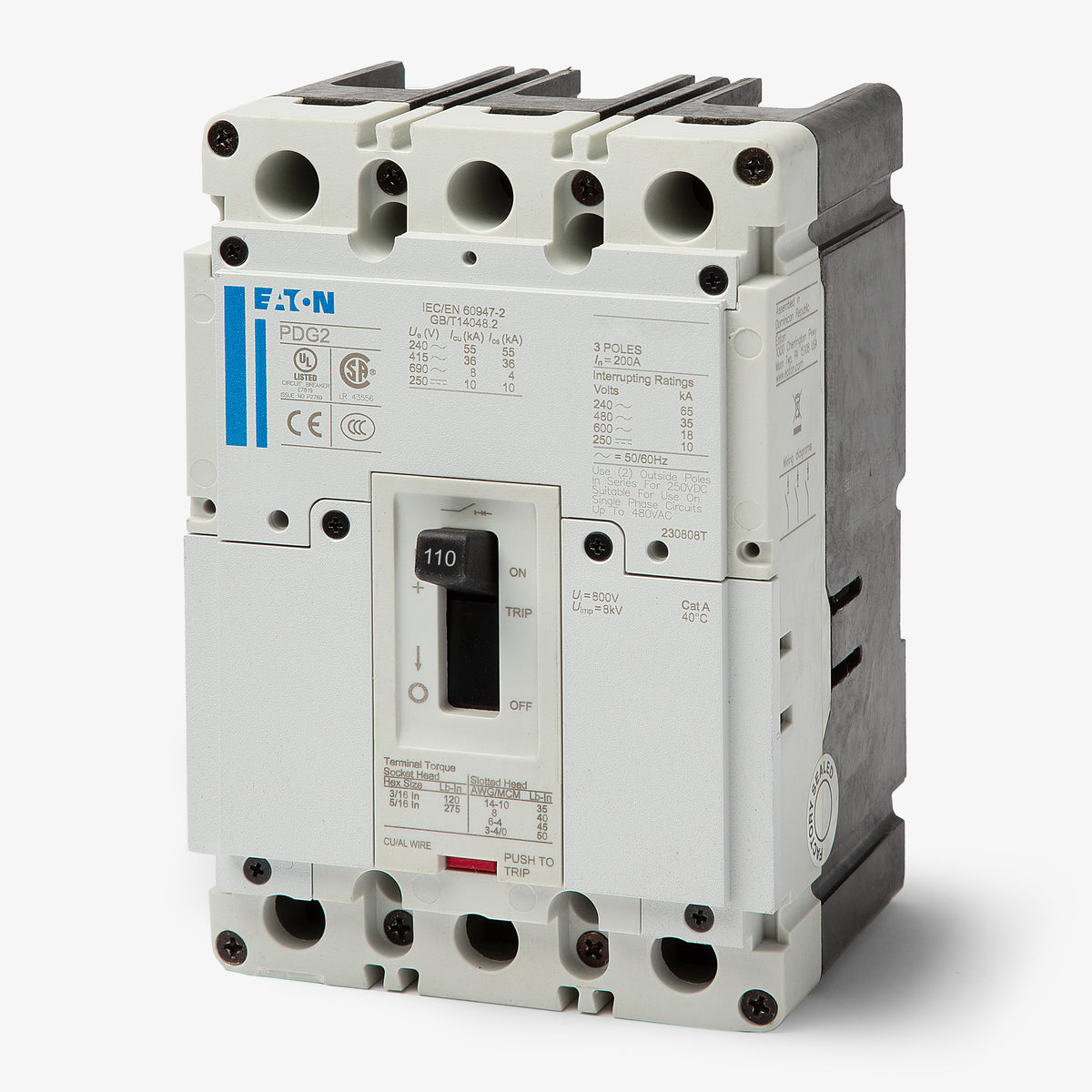

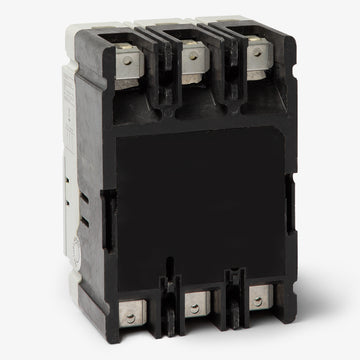

Eaton / Cutler-Hammer PDG23G0110TFFL Molded Case Circuit Breaker
- 110A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0110TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0110TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0110TFFL - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0100TFFL
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the PDG23G0110TFFL provides robust long-time and instantaneous (LI) protection. This 3-pole, 110A molded case circuit breaker from the Power Defense Frame 2 series features a fixed thermal-magnetic trip unit. It installs into Eaton panelboards and enclosures, serving as a functional replacement for legacy EGE3110FFG and HFD3110 breakers. Rated at 35kAIC at 480VAC, this current-limiting MCCB includes load side lugs and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|

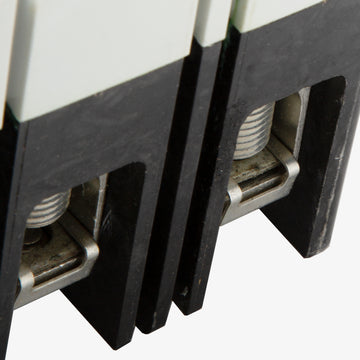

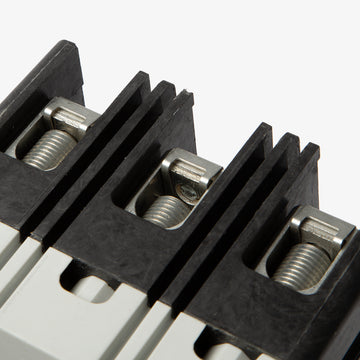

| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
4 answersIs the PDG23G0110TFFL a direct replacement for older Eaton Series C breakers?
Yes, the Power Defense Frame 2 (PDG2) series directly replaces legacy Eaton Series C F-Frame breakers, including FD and HFD models. Note that updated Eaton mounting hardware is required when upgrading to the Power Defense platform.
What does the G in the PDG23G0110TFFL catalog number indicate?
The G designates the global interrupting rating tier for this Frame 2 breaker, which provides 35kAIC at 480VAC and 65kAIC at 240VAC.
What do the letters TFFL indicate in the PDG23G0110TFFL catalog number?
In the Eaton Power Defense nomenclature, T stands for Thermal-Magnetic, the two Fs indicate Fixed Thermal and Fixed Magnetic trip settings, and L specifies standard line and load lugs.
Are the trip settings adjustable on the PDG23G0110TFFL?
No, this breaker features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings, meaning the trip curve cannot be field-adjusted.
