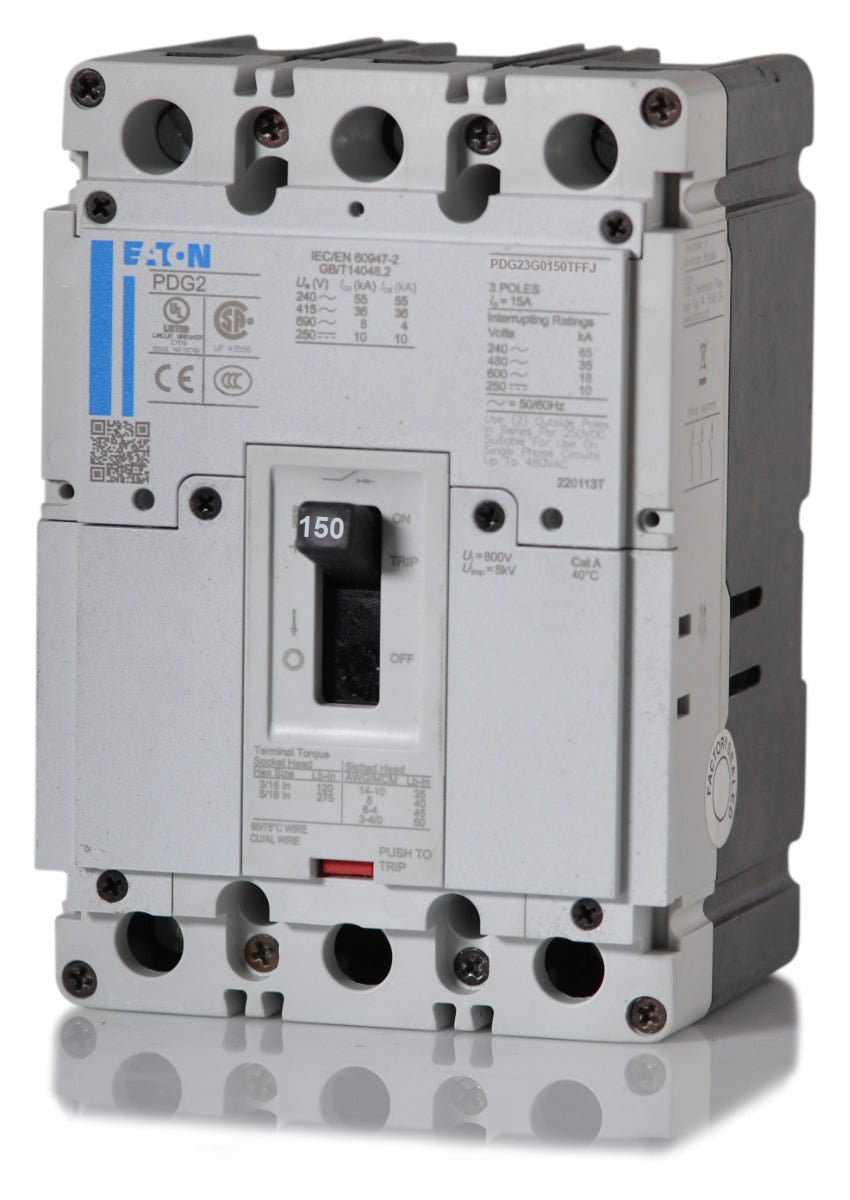

Eaton / Cutler-Hammer PDG23G0150TFFJ Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0150TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0150TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0150TFFJ - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0150TFFJ
150A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0150TFFL
150A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0175TFFJ
175A 3 Pole Molded Case Circuit Breaker
Description
Part of the advanced Power Defense series, this 150-amp, three-pole MCCB provides reliable long-time and instantaneous protection. It serves industrial applications requiring robust current-limiting capabilities. The PDG23G0150TFFJ mounts into Eaton panelboards, serving as a modern upgrade for older FD3150 units. It comes equipped with standard line and load terminals. Rated at 35kA interrupting capacity at 480VAC, the Frame 2 device utilizes fixed thermal and magnetic trip settings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0150TFFJ |
| Series | PDG2 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Global Rated, RoHS Compliant |
Product FAQs
5 answersIs the PDG23G0150TFFJ a direct replacement for an older Series C FD3150 breaker?
Yes, the Power Defense Frame 2 series is the modern upgrade and direct replacement for legacy Cutler-Hammer Series C F-Frame breakers, including the 150A 3-pole FD3150. While the electrical characteristics are identical, new Eaton mounting hardware is required during installation due to a different physical mounting footprint.
Can I reuse the terminal lugs from my legacy F-Frame breaker on this Power Defense model?
Yes. Eaton designed the Power Defense Frame 2 platform to be fully compatible with legacy Series C F-Frame terminals. You can safely swap the line and load lugs between the two frames if your current setup requires a specific terminal configuration.
Are the thermal or magnetic trip characteristics adjustable on this model?
No, this breaker features a fixed thermal and fixed magnetic trip unit, as indicated by the TFF in the catalog number. It provides factory-calibrated long-time and instantaneous (LI) protection that cannot be altered in the field.
Can this molded case circuit breaker be utilized in DC electrical distribution?
Yes, the PDG23G0150TFFJ is certified for direct current applications. It carries a maximum rating of 250VDC with a 10kA interrupting capacity, making it suitable for DC panels or industrial systems operating within those parameters.
Do the factory-installed feed-thru lugs accept aluminum conductors?
Yes, the standard line and load lugs included with this breaker are dual-rated for both aluminum (Al) and copper (Cu) wire. They securely terminate conductor sizes ranging from 4 AWG to 4/0 AWG.
