Eaton / Cutler-Hammer PDG23G0200TFFJ Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0200TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0200TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

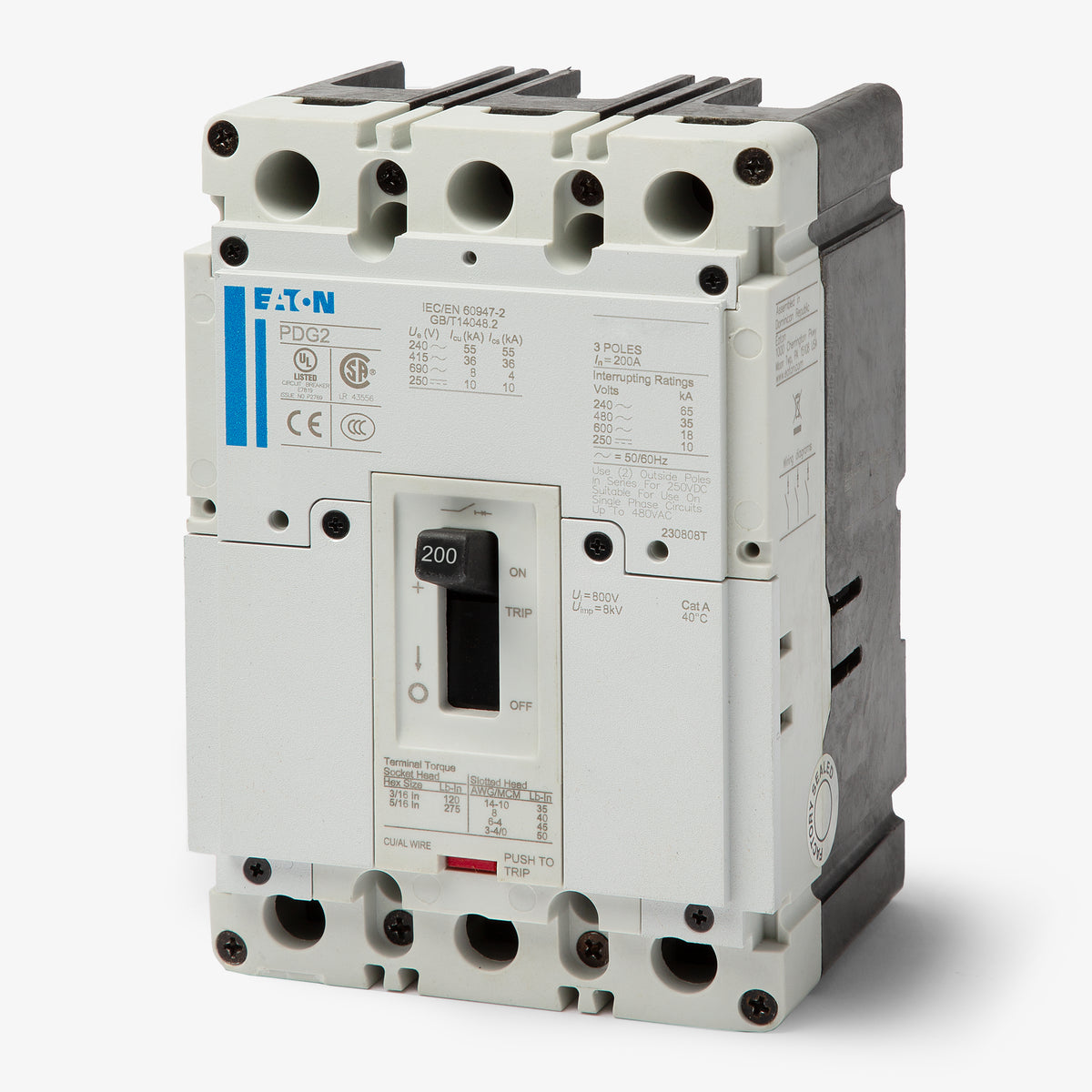

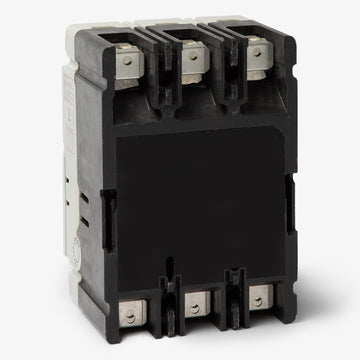

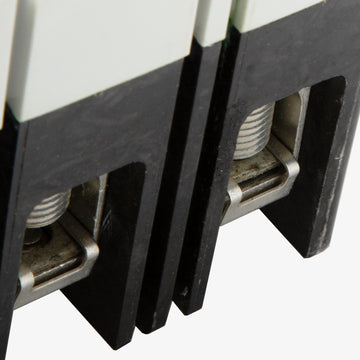

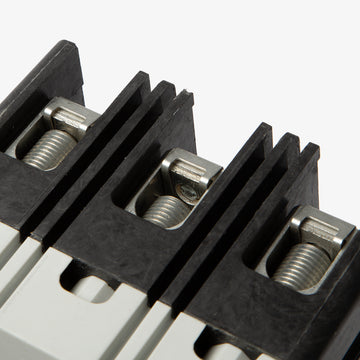

Eaton / Cutler-Hammer PDG23G0200TFFJ - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23P0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Description
Part of Eaton's globally recognized Power Defense series, the PDG23G0200TFFJ is a 3-pole, 200A molded case circuit breaker designed for robust industrial power distribution. It mounts into Eaton Series C and Power Defense panelboards, offering a seamless replacement for older FD3200 models. This Frame 2 breaker provides fixed thermal and magnetic protection (LI) with a 35kAIC rating at 480V. The "J" catalog suffix designates the inclusion of standard line and load-side lug terminals.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0200TFFJ |
| Series | PDG2 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Line and Load Terminals (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant, Common Trip, Trip-Free Mechanism |
Product FAQs
4 answersCan the PDG23G0200TFFJ replace older Eaton Series C breakers?
Yes. The Eaton Power Defense Frame 2 series is an exact dimensional replacement for legacy Eaton and Cutler-Hammer Series C F-Frame breakers, including the FD, FDB, and HFD series. It uses the identical mounting footprint for easy retrofitting into existing Pow-R-Line panelboards.
What do the letters TFF signify in the PDG23G0200TFFJ catalog number?
In Eaton Power Defense nomenclature, TFF indicates the breaker is equipped with a thermal magnetic trip unit featuring fixed thermal and fixed magnetic settings. The trip curve is factory set and cannot be adjusted in the field.
Can this Frame 2 breaker be mounted on a DIN rail?
While natively designed for panel mounting in Eaton panelboards, the PDG23G0200TFFJ can be mounted on a standard DIN rail. This installation requires the separate purchase of an Eaton Power Defense Frame 2 DIN rail adapter bracket.
Which panelboards are compatible with the PDG23G0200TFFJ?
This 200A breaker is engineered for Eaton distribution systems and mounts directly into Pow-R-Line 1a through 4 panelboards. It is fully compatible with both modern Power Defense and legacy Series C panelboard chassis.
