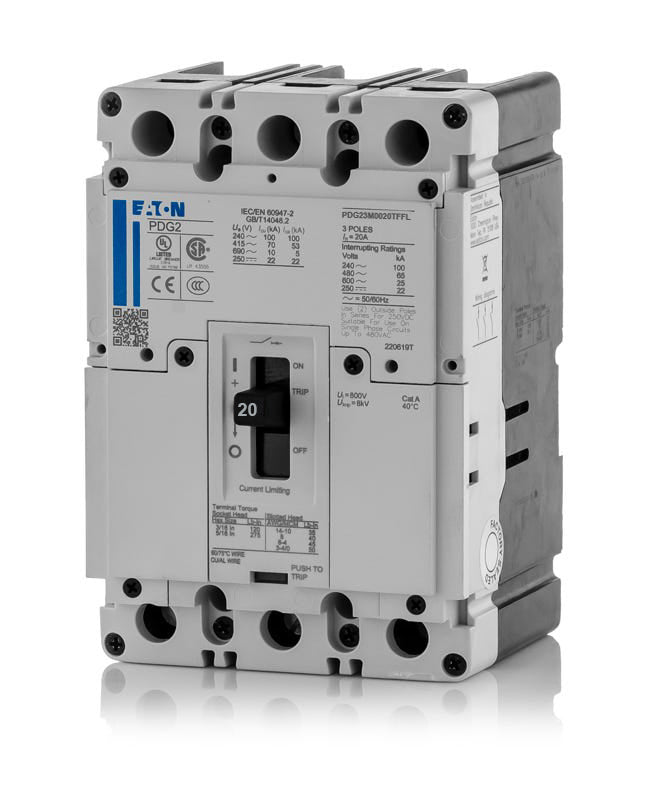

Eaton / Cutler-Hammer PDG23M0020TFFL Molded Case Circuit Breaker
- 20A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23M0020TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23M0020TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23M0020TFFL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG23M0020TFFL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism, Padlock Attachment, Terminal Shields, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDG23M0020TFFL - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism, Padlock Attachment, Terminal Shields, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0025TFFL
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0015TFFL
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0015TFFJ
15A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Eaton PDG23M0020TFFL is a 3-pole, 20A molded case circuit breaker from the Power Defense Frame 2 series. It provides reliable overcurrent protection for demanding electrical systems. This unit installs into Eaton Power Defense and Series C panelboards. It also serves as an exact drop-in replacement for legacy HFD3020 breakers, simplifying facility upgrades.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism, Padlock Attachment, Terminal Shields, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
7 answersWhat do the "TFF" and "L" suffixes in PDG23M0020TFFL designate?
The "TFF" indicates the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic protection settings. The "L" indicates that standard line and load lugs are factory-installed on the breaker.
Can this Power Defense Frame 2 breaker replace a legacy Series C F-Frame breaker?
Yes, the Eaton Power Defense Frame 2 (PDG2) series is designed to share the exact physical footprint, mounting dimensions, and panelboard spacing as legacy Series C F-Frame breakers, such as the FD, HFD, and FDC series.
Are internal accessories like auxiliary switches and shunt trips field-installable on this model?
Yes, Power Defense Frame 2 circuit breakers feature modular accessory pockets. This allows electricians to quickly install common internal accessories in the field without needing to break the factory seal on the trip unit.
What does the "M" performance tier indicate in the catalog number?
The "M" designates this as a medium performance breaker within the Power Defense globally rated (PDG) lineup, which corresponds to its 65kAIC interrupting rating at 480VAC.
Can the PDG23M0020TFFL be reverse-fed in a panelboard or enclosure?
Yes, standard Power Defense breakers with thermal-magnetic trip units do not have line and load wiring restrictions. They are suitable for reverse-feed applications, unlike models equipped with certain electronic trip units.
Are the factory-installed terminals rated for both aluminum and copper conductors?
Yes, the standard line and load lugs included with this breaker are dual-rated for both aluminum and copper wire, accepting conductor sizes from 14 AWG up to 4 AWG.
Can this thermal-magnetic breaker be used in DC voltage applications?
Yes, this specific thermal-magnetic model carries a DC interrupting rating of 22kAIC at 250VDC. Frame 2 Power Defense breakers with electronic trip units are typically restricted to AC applications only, making this fixed thermal-magnetic model the correct choice for DC circuits.
