Eaton / Cutler-Hammer QPGFEP2050 GFEP Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
QPGFEP2050
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QPGFEP2050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

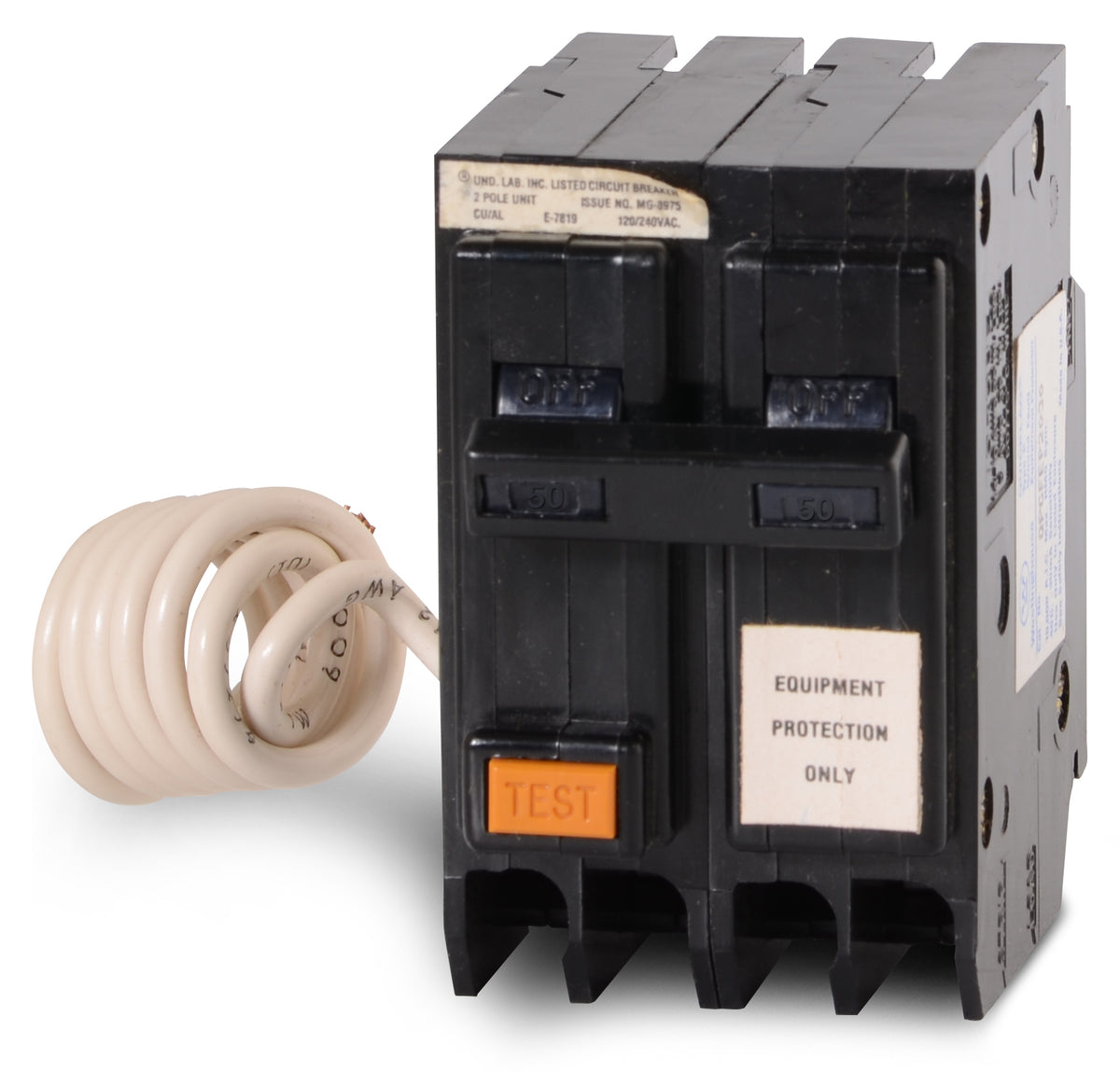

Eaton / Cutler-Hammer QPGFEP2050 - 50A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQPGFEP2020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP2050
50A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2050
50A GFEP Miniature Circuit Breaker
Description
Part of the Quicklag family, the Eaton QPGFEP2050 provides dedicated 30mA ground-fault equipment protection for commercial and industrial environments. This 50-amp, two-pole breaker is engineered to prevent equipment damage from low-level ground faults. It installs into Eaton Quicklag panelboards via a simple plug-on mounting style. The unit accepts 14-4 AWG wiring through reliable box lug terminals. This HACR-rated breaker features a 10 kAIC interrupting capacity at 120/240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QPGFEP2050 |
| Series | QPGFEP |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich panelboards accept the QPGFEP2050 breaker?
This plug-on breaker is engineered for Eaton Quicklag panelboards, including commercial Pow-R-Line series panels configured for Type QP branch breakers.
What is the difference between this GFEP breaker and a standard GFCI?
The QPGFEP2050 provides Ground Fault Equipment Protection with a 30mA trip threshold to prevent damage to machinery. Standard GFCI breakers trip at 5mA for personnel protection.
What applications are best suited for a 30mA GFEP breaker?
GFEP breakers are commonly installed for heat trace cables, snow melting equipment, and dedicated industrial machinery where standard 5mA personnel protection would cause nuisance tripping.
How do I connect the neutral for this equipment protection breaker?
This unit features a pigtail neutral design. You must connect the attached white pigtail wire directly to the panelboard neutral bar to enable the ground fault sensing circuitry.
Can the QPGFEP2050 be installed in standard residential loadcenters?
Although it shares a similar 1-inch per pole width with residential BR frame breakers, the QPGFEP series features a specific plug-on mounting clip designed exclusively for commercial Eaton Quicklag panelboards.
Does the QPGFEP2050 require regular testing?
Yes, this breaker includes a built-in test button. It is recommended to test the ground fault circuitry monthly to ensure the equipment protection features are functioning correctly.
