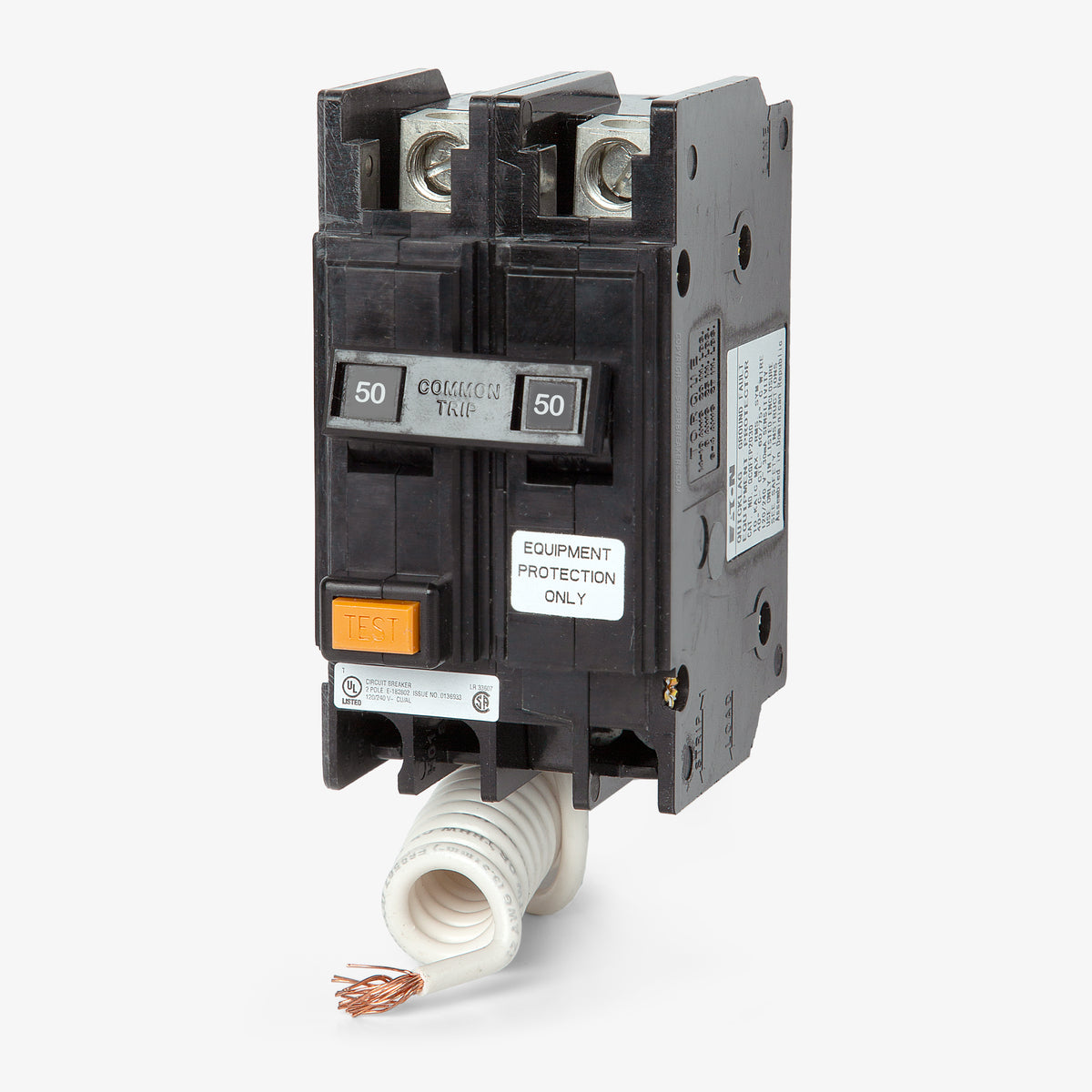

Eaton / Cutler-Hammer QCGFEP2050 GFEP Miniature Circuit Breaker
- 50A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFEP2050
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFEP2050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFEP2050 - 50A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFEP2030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFEP2015
15A GFEP Miniature Circuit Breaker
Description
Engineered to prevent machinery damage, the Eaton QCGFEP2050 offers dedicated equipment ground-fault protection. With a 50A capacity and 30mA sensitivity, it handles commercial loads while monitoring for leakage currents. This two-pole breaker mounts into Eaton Quicklag panelboards. It utilizes a panel-mount form factor and comes standard with box lugs for 14-4 AWG wiring. Capable of interrupting 10 kAIC at 120/240 VAC, the thermal-magnetic device is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGFEP2050 |
| Series | QCGFEP |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Panelboards, Quicklag Enclosures |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, DIN Rail Adapter |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 30mA Trip Sensitivity |
Product FAQs
5 answersWhat panelboards accept the QCGFEP2050?
It installs in Eaton Quicklag panelboards and enclosures configured for QC-frame breakers. Note that the QC frame utilizes a cable-in/cable-out mounting design rather than a standard busbar plug-on connection.
What is the ground fault trip threshold for this breaker?

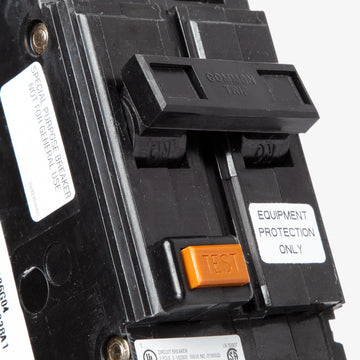

This Ground Fault Equipment Protector (GFEP) features a 30 mA trip threshold. This rating is specifically calibrated to protect machinery and equipment, such as heat trace systems, from damaging line-to-ground faults.
Is the QCGFEP2050 suitable for Class A personnel protection?
No. GFEP devices are rated for equipment protection at 30 mA. They do not meet the 5 mA trip threshold required for Class A personnel GFCI protection in residential or commercial applications.
How are the line, load, and neutral connections configured?

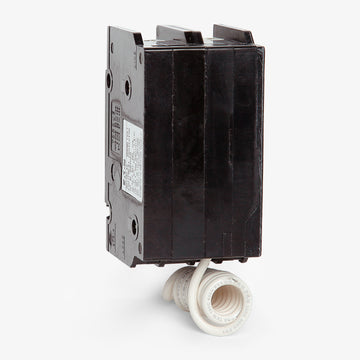

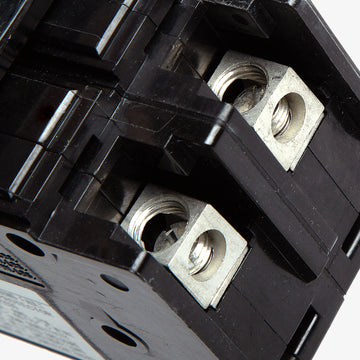

The breaker uses a cable-in/cable-out design for the phase conductors, utilizing box lugs that accept 14-4 AWG aluminum or copper wire. A factory-installed pigtail neutral is provided to connect to the panel neutral bar for the internal ground fault sensing circuitry.
Can this Eaton breaker replace a Cutler-Hammer QCGFEP2050?
Yes. Eaton manufactures this breaker under the same catalog number to directly replace legacy Cutler-Hammer and Westinghouse QC-frame GFEP breakers.
