Eaton / Cutler-Hammer RGH320035E - 2000A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU RGH320035E

Eaton / Cutler-Hammer RGH320035E - 2000A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU RGH320035E
Select Item Condition
Earn 19335 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer RGH320035E - 2000A 3 Pole Molded Case Circuit Breaker

New

$19335.40 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

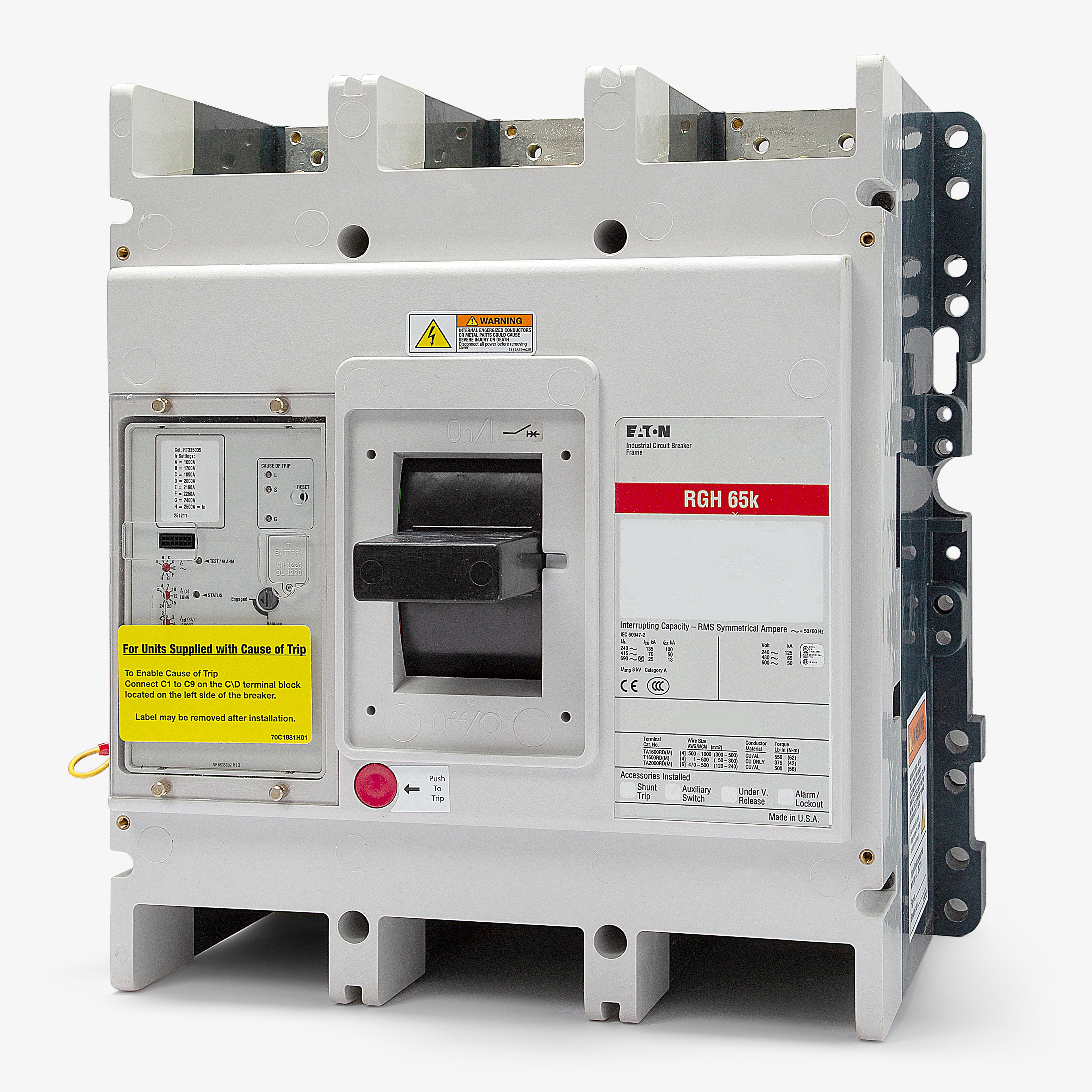

Delivering advanced circuit protection, the Eaton RGH320035E is a 3-pole, 2000A MCCB from the Series G lineup. It is built to handle heavy electrical loads while providing comprehensive system safety. This RG-frame breaker mounts into Eaton Pow-R-Line switchboards and motor control centers. It comes equipped with imperial tapped terminals and is capable of reverse feed applications. The integrated Digitrip 310 trip unit provides adjustable LSG protection and a 65kAIC rating at 480VAC.

Specifications

Brand Eaton / Cutler-Hammer
Series RGH
Part Number RGH320035E
Amperage 2000A
Amperage Range 1000-2000A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 125kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC
Mounting Style Unit Mount

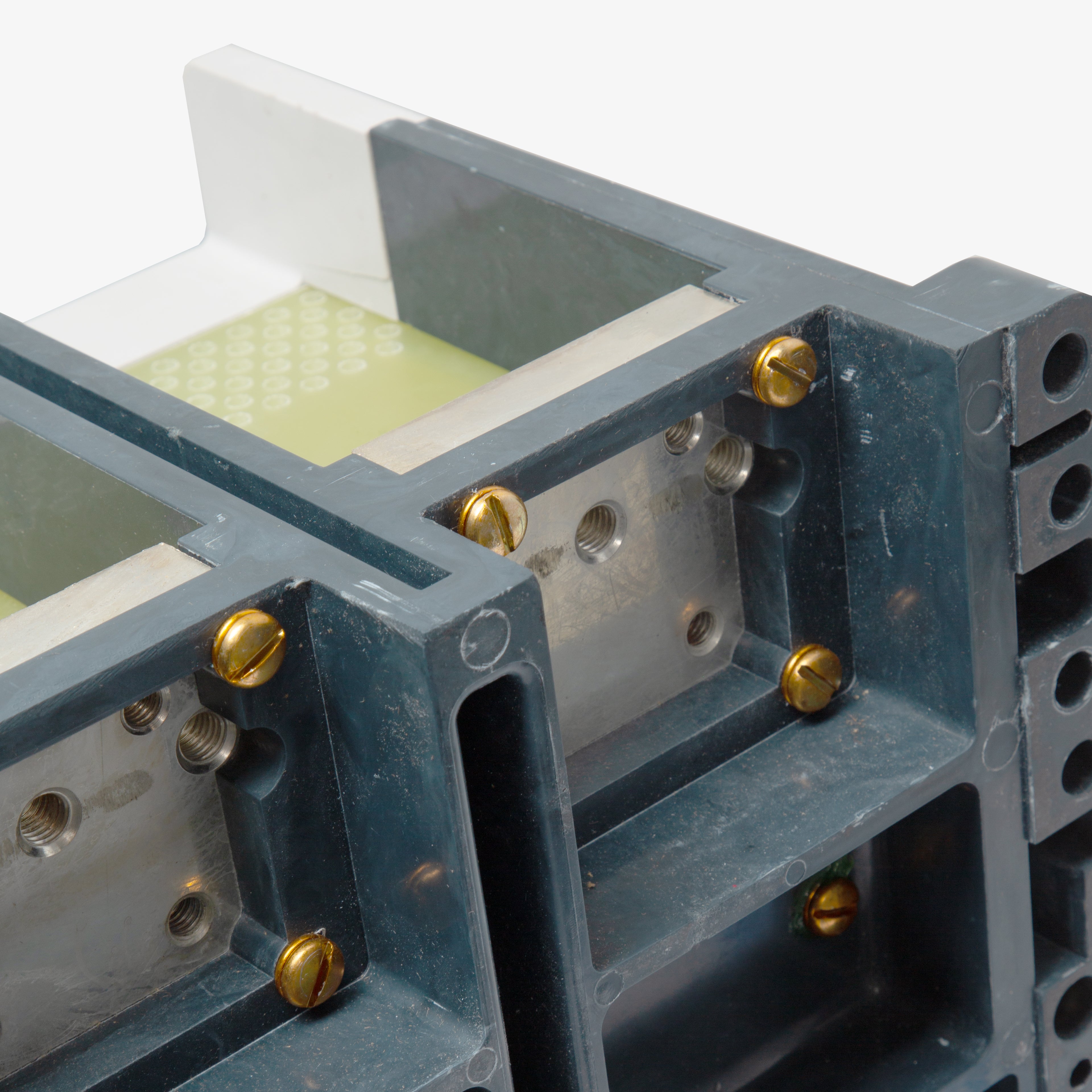

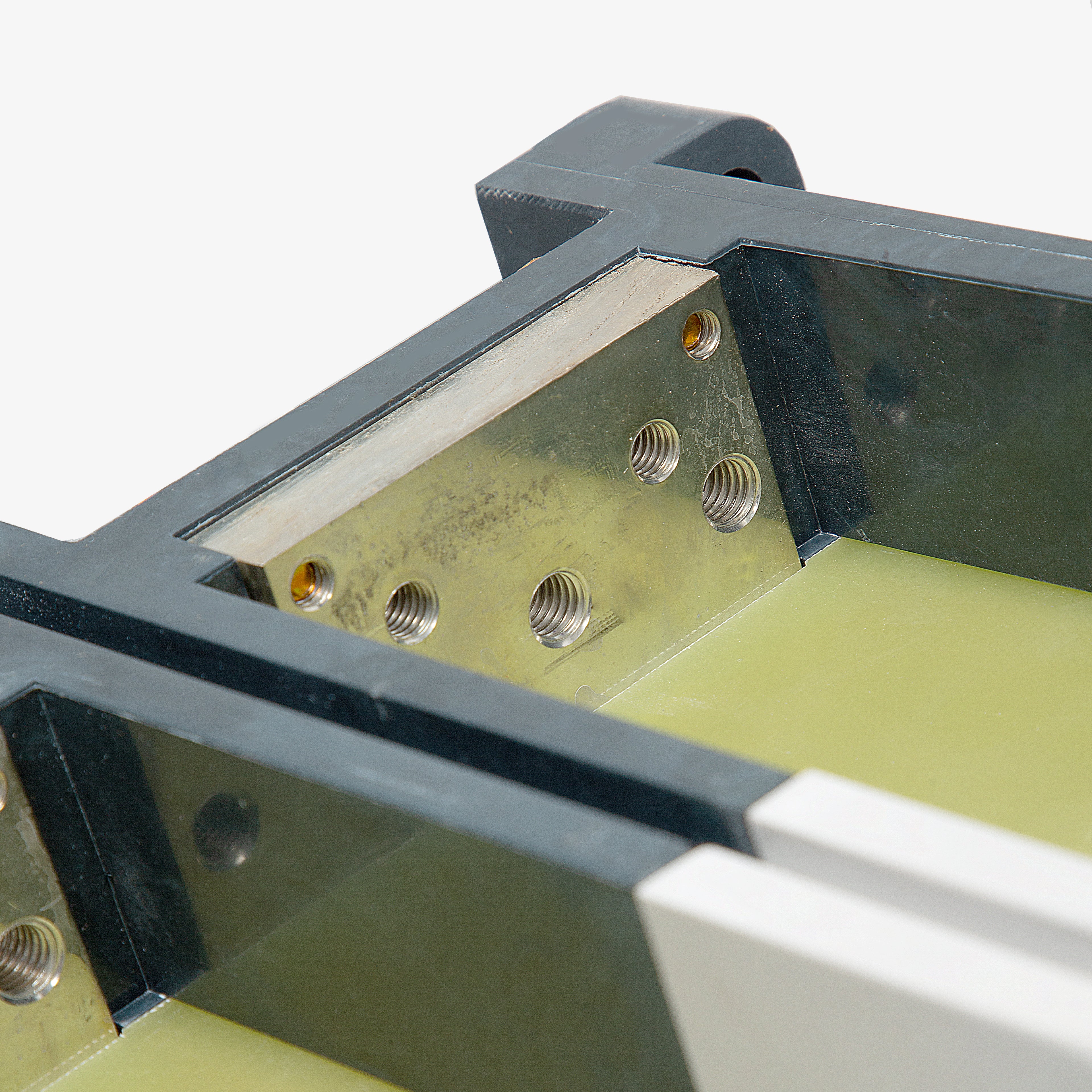

Terminal Type Stud/Tapped Pad
For Use With Eaton Pow-R-Line Switchboards, Motor Control Centers
Trip Technology Electronic Trip
Trip Function Code LSG
Trip Function Long-Time, Short-Time, Ground Fault
Trip Adjustability Adjustable
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits
Accessories Imperial Tapped Terminals
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CCC, CE, CSA, IEC, UL
Temp Rating 40C
Construction Features 80% Rated, Reverse Feed, True RMS Sensing, Zone Selective Interlocking, Ground Fault Protection
