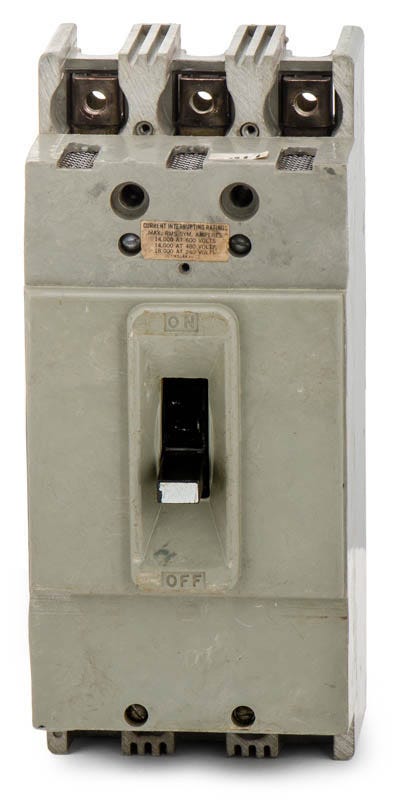

Federal Pacific HF631070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Federal Pacific
HF631070
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
HF631070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific HF631070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
HF631030 - 30A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for older systems, the Federal Pacific HF631070 70A, 3-pole molded case circuit breaker utilizes fixed thermal-magnetic trip elements to deliver consistent commercial protection. Designed for Federal Pacific F-Frame panelboards, this bolt-on breaker restores functionality to legacy infrastructure. It is fully compatible with existing hardware and crosses to the UBIF070. With a 22kAIC rating at 480VAC, it safely clears high-level faults in industrial setups.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631070-R |
| Series | HF |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Product FAQs
7 answersWhich panelboards accept the Federal Pacific HF631070?
This breaker is specifically designed to restore functionality to legacy Federal Pacific F-Frame panelboards. It is fully compatible with existing F-Frame hardware.
What is the recommended cross-reference for the discontinued HF631070?
The UBIF070 is a verified, drop-in substitute that matches the physical dimensions and electrical specifications of this legacy Federal Pacific breaker.
What type of connections are required for installing the HF631070?
Installation requires bolting the breaker directly to the panelboard bus. The load side features mechanical lugs that accommodate 14 to 1/0 AWG wiring.
How does the interrupting capacity scale with different system voltages?
The fault-clearing capacity decreases as system voltage increases. It provides 25kAIC at 240VAC, 22kAIC at 480VAC, and 14kAIC at 600VAC for commercial and industrial applications.
Can the trip curve be adjusted for specific load requirements?
No. This breaker utilizes fixed thermal and fixed magnetic trip elements, meaning the Long-Time and Instantaneous protection thresholds cannot be modified in the field.
What type of fault protection does the thermal-magnetic mechanism provide?
The thermal element provides Long-Time protection against sustained overloads, while the magnetic element delivers Instantaneous protection to safely clear short circuits.
What is the difference between the 250A frame and 70A trip rating on this breaker?
The 250A frame size dictates the physical dimensions and maximum current capacity the breaker housing can handle, while the 70A trip rating is the specific current limit at which this unit will open the circuit.
