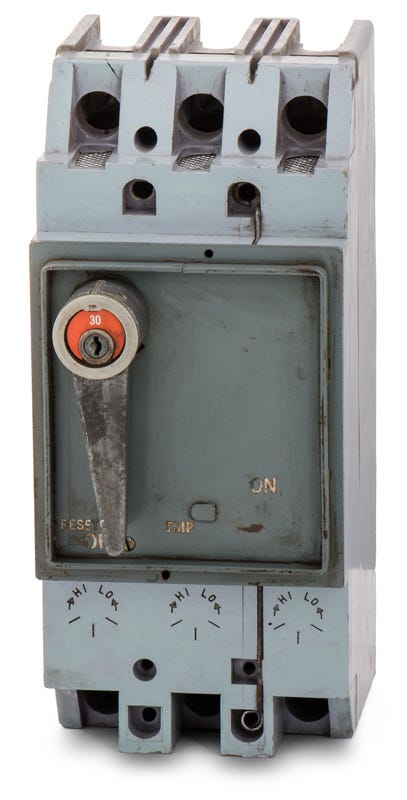

Federal Pacific HF631030R HF631030 - 30A 3 Pole Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Federal Pacific
HF631030R
HF631030 - 30A 3 Pole Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
HF631030R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific HF631030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker

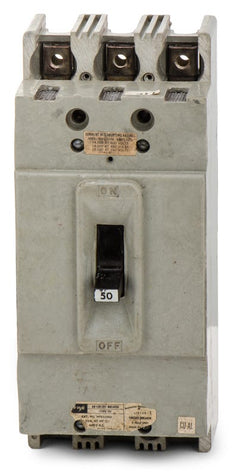

50A 3 Pole Molded Case Circuit Breaker
Description
Part of Federal Pacific's legacy HF series, this 3-pole, 30A molded case circuit breaker provides dependable long-time and instantaneous (LI) protection for 600VAC industrial systems. Designed as an exact replacement, it installs into Federal Pacific F-Frame panelboards. The bolt-on mounting ensures a secure connection without aftermarket adapters, simplifying facility maintenance. It features fixed thermal-magnetic trip units and a 22kAIC rating at 480VAC.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631030R-R |
| Series | HF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Product FAQs
5 answersIs the HF631030 an H-Frame or F-Frame circuit breaker?
The HF631030 belongs to the Federal Pacific H-Frame breaker family, but it is engineered specifically to mount directly into Federal Pacific F-Frame panelboards. This allows for direct replacement without aftermarket adapters.
Are the thermal and magnetic trip settings adjustable on the HF631030?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory-set and cannot be field-adjusted.
Is the Federal Pacific HF631030 still in active production?
No, Federal Pacific Electric (FPE) legacy molded case circuit breakers are obsolete and no longer manufactured. Exact replacements are sourced to maintain existing infrastructure without requiring a complete panelboard retrofit.
Is the HF631030 part of the recalled Federal Pacific Stab-Lok series?
No, the HF series consists of commercial-grade, bolt-on molded case circuit breakers designed for industrial applications. They are entirely different from the residential Stab-Lok plug-on breakers and do not share the same design flaws.
How is the HF631030 installed into the panelboard?
This is a bolt-on circuit breaker. The line side connections bolt directly to the bus bars of an FPE F-Frame panelboard, while the load side utilizes the included lug terminals for wire connections.
