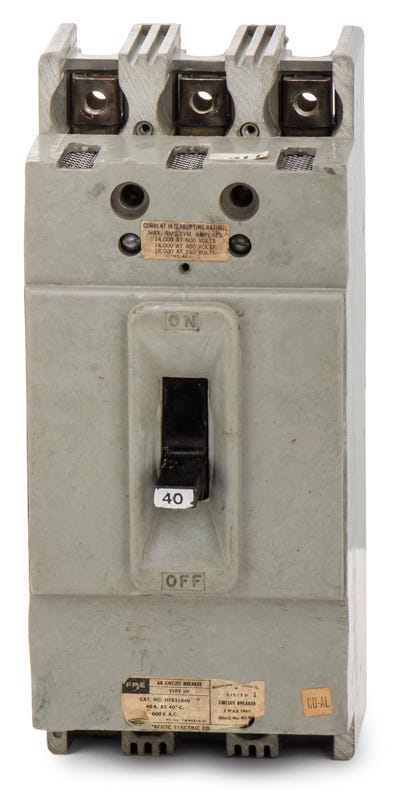

Federal Pacific HF631040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Federal Pacific
HF631040
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
HF631040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific HF631040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
HF631030 - 30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Constructed for industrial environments, this 3-pole, 40A molded case circuit breaker provides essential thermal-magnetic protection. It is fully rated for operation in 600VAC distribution networks. Designed to maintain existing infrastructure, it installs into Federal Pacific F-Frame panelboards. The bolt-on configuration guarantees a stable connection without requiring panel modifications. This legacy breaker features a 22kAIC rating at 480VAC and includes load side lugs.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631040-R |
| Series | HF |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Common Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the HF631040?
This breaker is engineered specifically for Federal Pacific F-Frame panelboards. It allows facilities to replace aging or failed components directly without upgrading the entire panel enclosure.
What protection functions does the HF631040 provide?
It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) protection. The thermal mechanism protects against sustained overcurrents, while the magnetic mechanism provides immediate tripping during short circuits.
Is the Federal Pacific HF series still being manufactured?
No, Federal Pacific Electric (FPE) circuit breakers are obsolete. The HF631040 is utilized as a direct replacement component to service and maintain existing legacy FPE electrical systems.
What type of terminations are provided on the HF631040?
This breaker includes load-side lug terminals designed to accept 14 AWG to 1/0 AWG conductors. Installers must ensure proper torque is applied to the lugs to maintain a secure connection and prevent overheating under load.
How is the HF631040 secured within the panelboard?
It utilizes a bolt-on mounting style that fastens directly to the panelboard bus. This provides a rigid, high-conductivity connection for industrial applications without the need for aftermarket mounting kits.
What safety procedures apply when installing this replacement breaker?
Installation must be performed by a qualified electrician. The panelboard must be completely de-energized before unbolting the old unit, and the replacement must be verified to match the system's voltage and fault current requirements.
