Federal Pacific NE237030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Federal Pacific
NE237030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE237030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

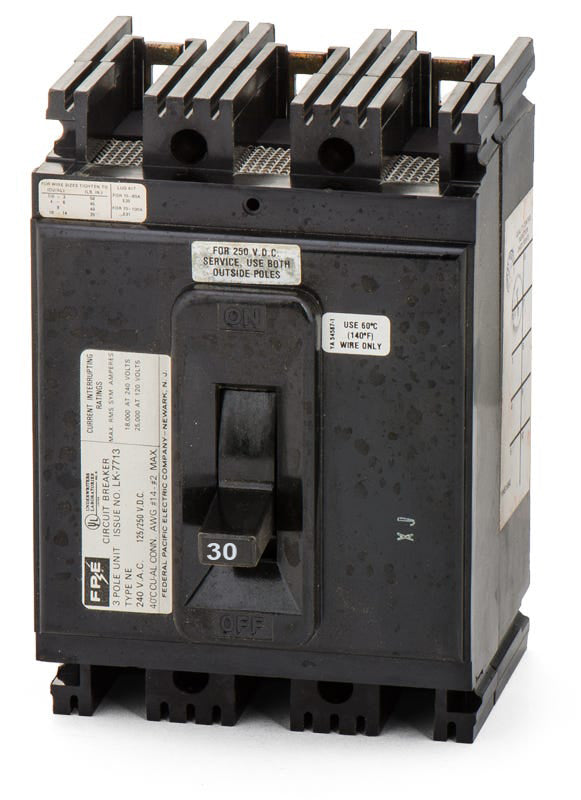

Federal Pacific NE237030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker

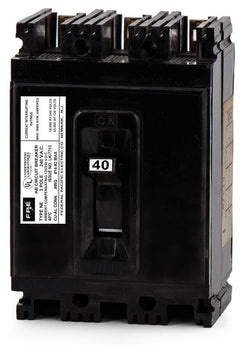

40A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Federal Pacific NE237030 is a 3-pole molded case circuit breaker from the legacy N-Frame series. This bolt-on breaker serves as an exact replacement component, ensuring a seamless fit into existing Federal Pacific NE panelboards without requiring aftermarket adapters. Rated for 18kAIC at 240VAC, it delivers robust fault interruption. The unit features a non-interchangeable thermal-magnetic trip and is reverse-feed suitable for versatile wiring.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE237030 |
| Series | NE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE-7 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersIs the NE237030 compatible with Stab-Lok residential load centers?
No. The NE237030 is a commercial-grade bolt-on molded case circuit breaker designed exclusively for legacy Federal Pacific NE panelboards. It will not fit in residential Stab-Lok enclosures.
Does this breaker require aftermarket adapters to fit into an FPE NE panelboard?
No. The NE237030 is an exact replacement component built to the original NE-7 frame specifications, ensuring a direct bolt-on fit into existing Federal Pacific NE panelboards without modification kits.
What does the LI trip function code indicate on the NE237030?
The LI designation means the breaker is equipped with a thermal-magnetic trip unit providing Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. Both the thermal and magnetic trip points are fixed and non-adjustable.
Are Federal Pacific NE237030 breakers still manufactured by the original company?
Federal Pacific Electric (FPE) is no longer in business. Replacement NE237030 breakers are sourced from existing legacy inventory or specialized aftermarket manufacturers to maintain existing NE panelboards.
Can the NE237030 be used in reverse-feed wiring configurations?
Yes. This breaker features a non-interchangeable thermal-magnetic trip unit that is suitable for reverse-feed applications, allowing for versatile wiring in commercial distribution systems.
What safety standards apply to the NE-7 frame breakers?
These breakers were built to meet UL 489, NEMA AB-1, and CSA C22.2 No. 5.1 standards for molded case circuit breakers. Always verify that the 18kA available fault current rating meets the requirements of your specific installation point before energizing.
