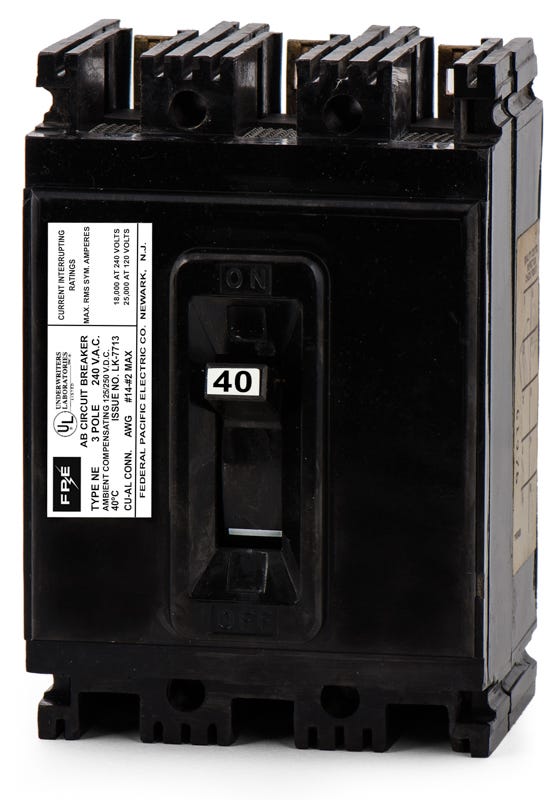

Federal Pacific NE233040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Federal Pacific
NE233040
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE233040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE233040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

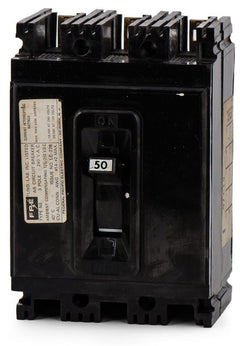

50A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Part of the classic N-Frame family, the Federal Pacific NE233040 restores functionality to aging commercial electrical systems. This 40-amp, three-pole molded case circuit breaker utilizes a fixed thermal-magnetic trip unit to defend against overloads and short circuits. Designed specifically for Federal Pacific NE panelboards, it provides a seamless bolt-on fit. The breaker is rated for 18kAIC at 240VAC and supports reverse-feed applications. It serves as an equivalent for UBINE233040.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233040-R |
| Series | NE |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the NE233040 circuit breaker?
This breaker is designed specifically for legacy Federal Pacific NE panelboards. It can also be mounted in Federal Pacific CDP panelboards when using the appropriate NEF1K twin branch mounting hardware strap kit.
Is there a direct aftermarket replacement for the Federal Pacific NE233040?
Yes, the UBINE233040 is a direct aftermarket equivalent that matches the physical dimensions and electrical specifications of the original Federal Pacific N-Frame breaker.
Does this breaker support reverse-feed applications?
Yes, the NE233040 features a non-interchangeable trip design that is suitable for reverse-feed installations, allowing it to be back-fed in compatible panel configurations.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the NE233040 utilizes a fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
How does this breaker connect to the panelboard bus?
The NE233040 utilizes a bolt-on mounting style for a secure connection to the panelboard bus. It includes load side lugs that accommodate 14 AWG to 2 AWG wire.
