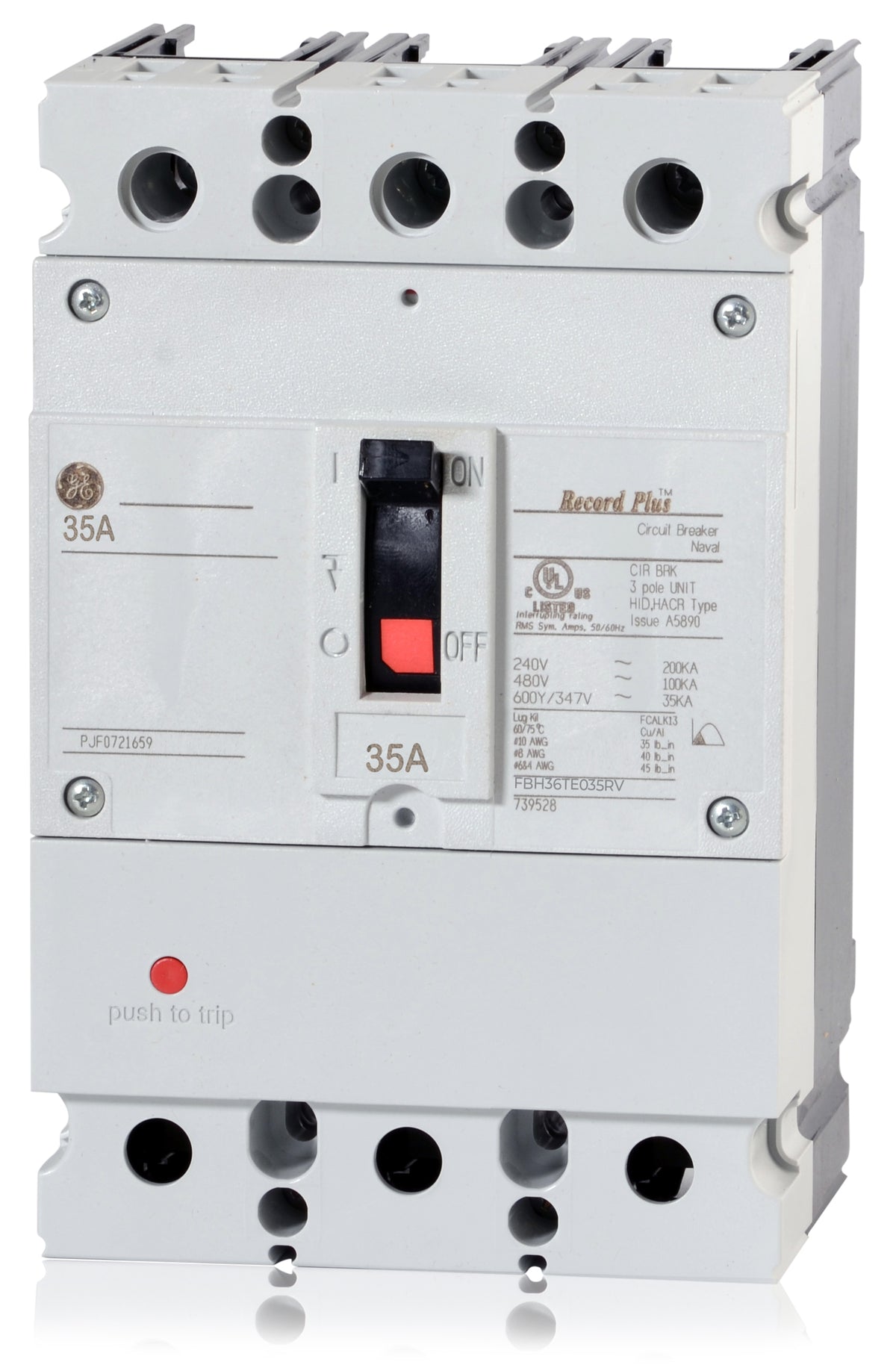

ABB / General Electric FBH36TE035RV Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
ABB / General Electric
FBH36TE035RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE035RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBH36TE035RV - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBH36TE045RV
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE025RV
25A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial applications, the FBH36TE035RV is a 3-pole, 35A molded case circuit breaker from the GE Record Plus family. Equipped with load lugs and panel connections, this breaker mounts seamlessly into GE A-Series Type AD panelboards. Its double-break rotary contact structure ensures rapid arc extinguishing and reliable performance. With an interrupting capacity of 100 kAIC at 480VAC and 85 kAIC at 500VDC, it handles severe electrical faults. The unit is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | FBH |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards (Type AD), GE Record Plus Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter, Terminal Shields, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Line Connections for AD Panels |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Extra High Interrupting Capacity |
Product FAQs
6 answersWhich panelboards are compatible with the FBH36TE035RV breaker?
This Record Plus FBH series breaker is designed for use in GE A-Series panelboards (Type AD) and GE Record Plus panelboards. It features a bolt-on connection for secure unit mounting within these specific enclosures.
What wire sizes and materials are accepted by the lugs on this 35A breaker?
The factory-installed lugs accept 14 to 2 AWG copper wire or 12 to 2 AWG aluminum wire. Ensure proper torque specifications are followed during installation to maintain a secure connection.
Can the FBH36TE035RV be used in DC applications?
Yes, this thermal magnetic breaker is rated for DC applications up to 500VDC, where it provides an interrupting capacity of 85kAIC.
What is the maximum interrupting capacity of this FBH series breaker?
This breaker offers a high interrupting capacity of up to 200kAIC at 240VAC and 100kAIC at 480VAC, making it suitable for commercial and industrial systems with high available fault currents.
Are the trip settings adjustable on the FBH36TE035RV?
No, this breaker features a thermal magnetic trip unit with fixed thermal and fixed magnetic settings for both long-time and instantaneous protection.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Record Plus series breakers like the FBH36TE035RV may carry either GE or ABB branding depending on the manufacturing date, but they are physically and electrically identical.
