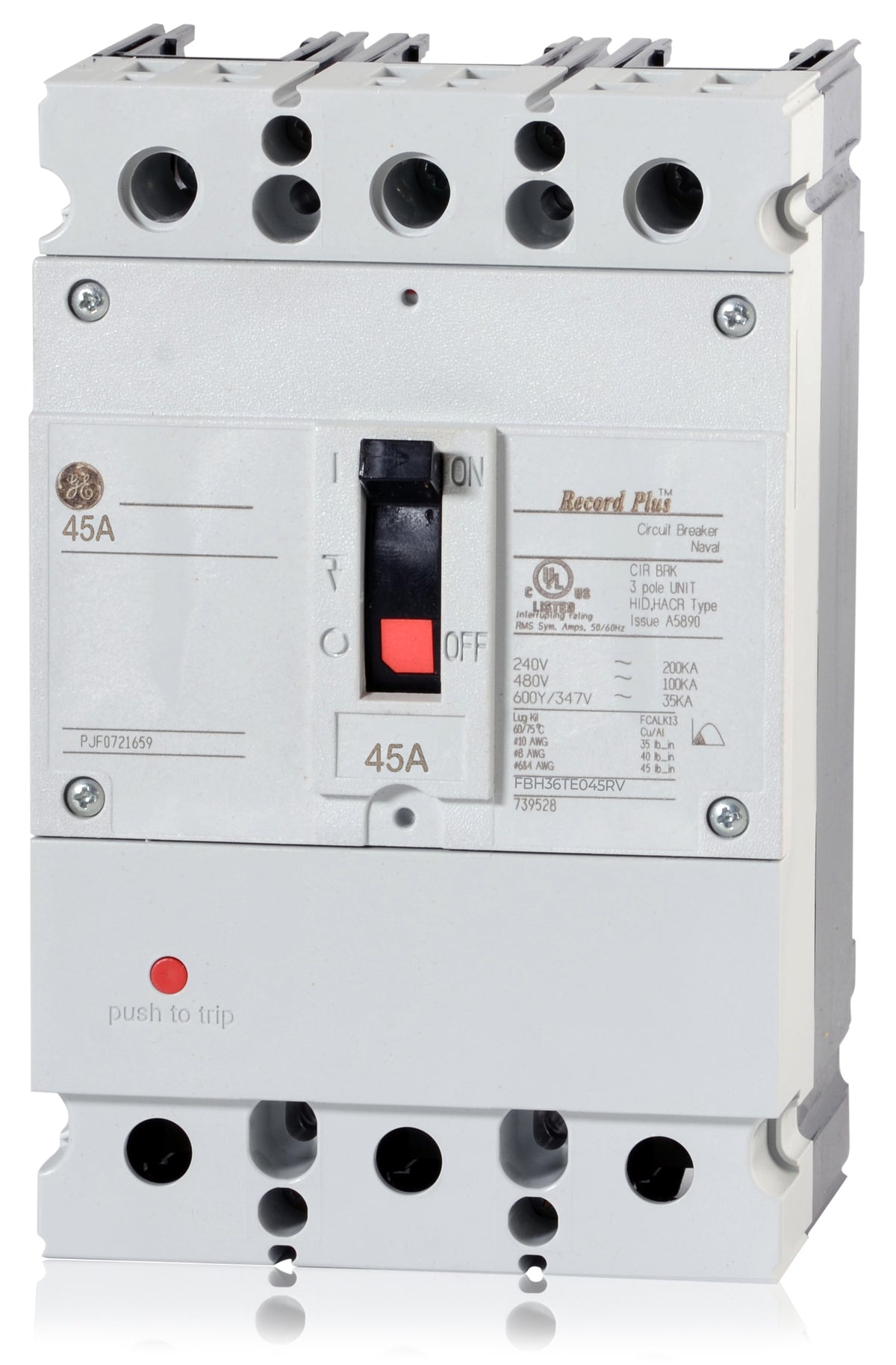

ABB / General Electric FBH36TE045RV Molded Case Circuit Breaker
- 45A
- 3 Pole
- Unit Mount
ABB / General Electric
FBH36TE045RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE045RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBH36TE045RV - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBH36TE035RV
35A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE025RV
25A 3 Pole Molded Case Circuit Breaker
Description
The FBH36TE045RV is a 3-pole, 45A molded case circuit breaker from GE's Record Plus F-Frame family. It utilizes a double-break rotary contact structure for enhanced interruption in commercial applications. Configured with the "RV" suffix, this unit mount MCCB includes specialized line connections to install into GE A-Series (Type AD) panelboards. Delivering 100 kAIC at 480VAC, it features fixed thermal-magnetic trip settings and is HACR and Naval rated for reliable LI protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | FBH |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards (Type AD), GE Record Plus Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter, Terminal Shields, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Line Connections for AD Panels |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Extra High Interrupting Capacity |
Product FAQs
6 answersWhich panelboards are compatible with the FBH36TE045RV?
This breaker is designed for installation in GE A-Series (Type AD) and GE Record Plus panelboards. The RV suffix indicates it includes the specific line connections required for Type AD panels.
What wire sizes are accepted by the terminals on this breaker?
The included load-side lugs accept wire gauges from 14 AWG to 4 AWG.
Is the FBH36TE045RV suitable for direct current (DC) systems?
Yes, it is rated for use in DC applications up to 500VDC, where it provides an interrupting capacity of 85kA.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the FBH36TE045RV may feature either GE or ABB branding, but the physical and electrical specifications are identical.
How does the FBH36TE045RV mount inside the panel?
It features a unit mount, bolt-on connection. It fastens directly to the panelboard bus or mounting plate rather than snapping into place.
What frame size is the FBH36TE045RV?
This breaker is built on the Record Plus FB100 frame. It utilizes a compact design and a double-break rotary contact structure for enhanced short-circuit interruption.
