ABB / General Electric FBH36TE040RV Molded Case Circuit Breaker
- 40A
- 3 Pole
- Unit Mount
ABB / General Electric
FBH36TE040RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE040RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

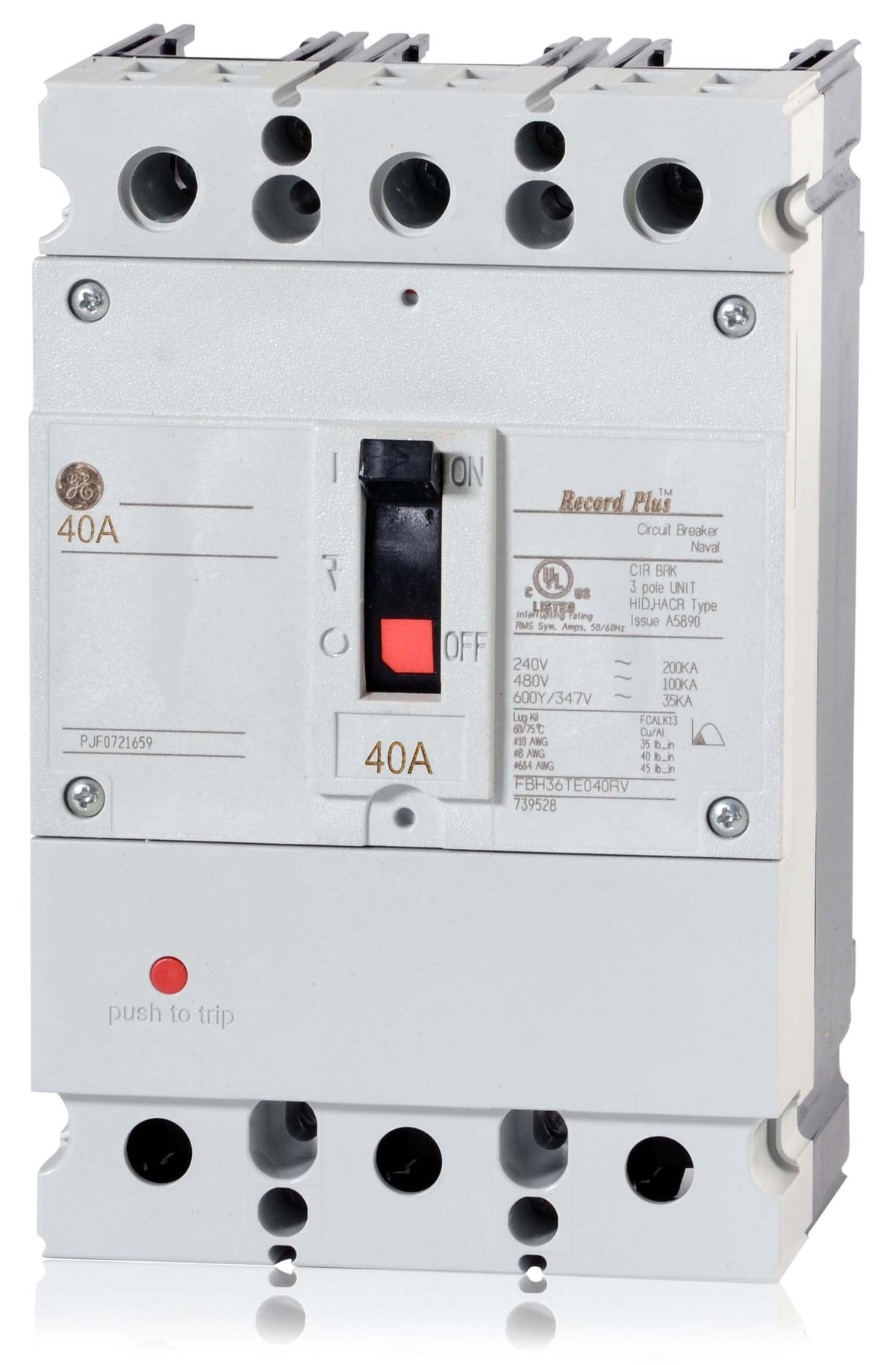

ABB / General Electric FBH36TE040RV - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBH36TE035RV
35A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE025RV
25A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding commercial and industrial environments, the GE FBH36TE040RV is a 3-pole, 40A molded case circuit breaker from the Record Plus family. It features fixed thermal and magnetic trip units for reliable overcurrent protection. This unit mount MCCB installs into GE A-Series Type AD and Record Plus panelboards. It comes equipped with load lugs and is fully rated for reverse feed applications. Rated at 100kAIC at 480VAC, this current-limiting breaker ensures robust safety.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBH36TE040RV |
| Series | FBH |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards (Type AD), GE Record Plus Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Naval Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards accept the FBH36TE040RV circuit breaker?
This Record Plus FB frame breaker is compatible with GE A-Series (Type AD) and GE Record Plus panelboards.
What are the acceptable wire sizes for the lugs on this breaker?
The factory-installed terminals accept 14 to 2 AWG copper conductors or 12 to 2 AWG aluminum conductors.
Are the thermal and magnetic trip elements adjustable on this model?
No. The FBH36TE040RV features a fixed thermal and fixed magnetic trip unit, providing non-adjustable long-time and instantaneous (LI) protection.
Can the FBH36TE040RV be applied in direct current systems?
Yes, this breaker is rated for DC applications with an interrupting capacity of 85kA at 500VDC.
Why does this Record Plus breaker show both ABB and General Electric branding?
ABB acquired GE Industrial Solutions. As a result, Record Plus FB frame breakers may feature either GE or ABB labels depending on when they were manufactured, but the physical hardware and UL listings remain identical.
