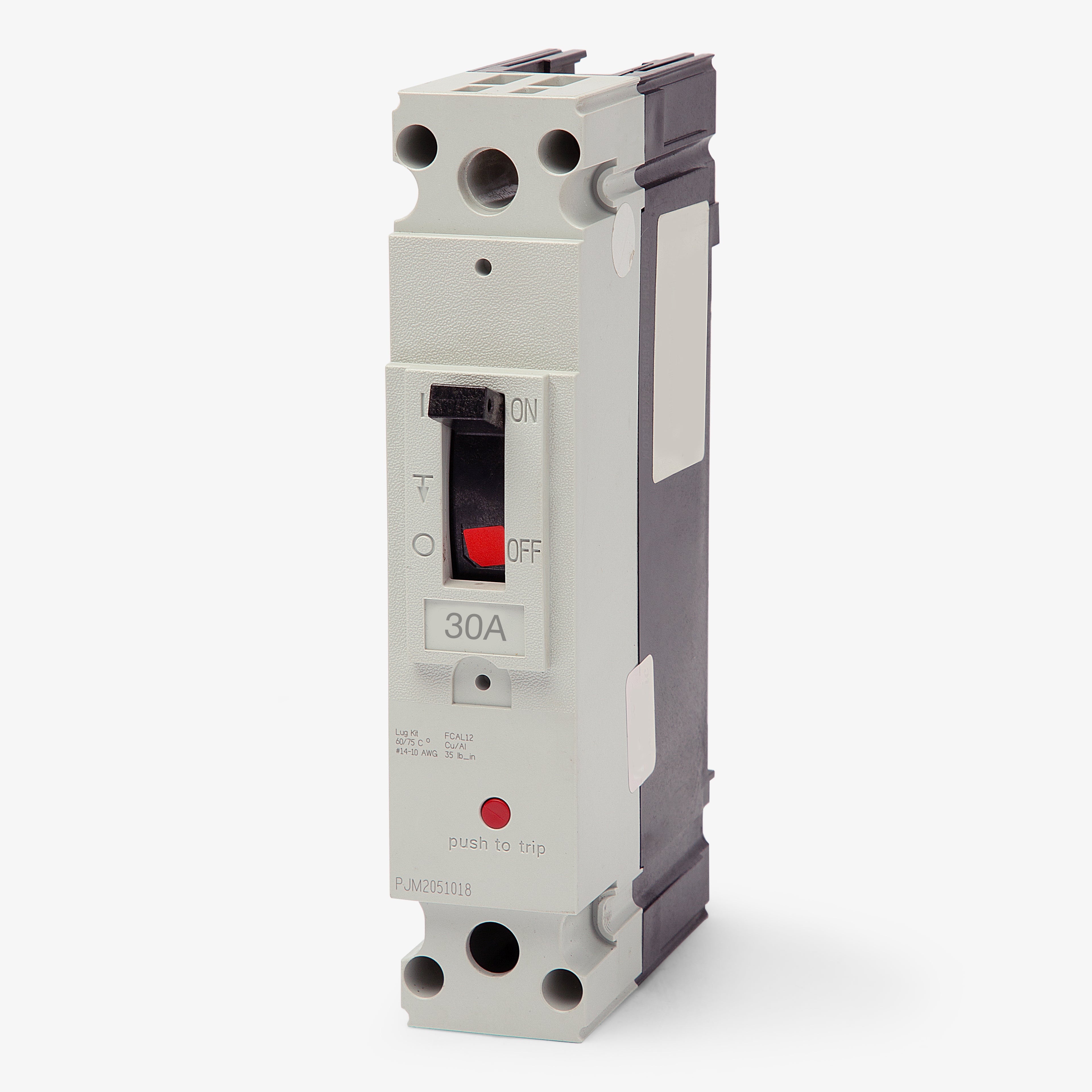

ABB / General Electric FBN16TE030RV Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
FBN16TE030RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN16TE030RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN16TE030RV - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN16TE020RV
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN16TE015RV
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE030RV
30A 2 Pole Molded Case Circuit Breaker
Description
Delivering reliable thermal-magnetic protection, the GE FBN16TE030RV is a 30A, 1-pole molded case circuit breaker from the Record Plus series. It is engineered to handle commercial and industrial loads with a 65kAIC rating at 277VAC. This breaker is factory-equipped with load lugs and line connectors to fit GE Type AD panelboards. It serves as an upgrade for older TED113030 models. Its current-limiting architecture ensures rapid fault clearing and enhanced system safety.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN16TE030RV |
| Series | FBN |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 277VAC, 25kA @ 347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the FBN16TE030RV circuit breaker?
This breaker is designed for bolt-on installation in GE Type AD panelboards, which are part of the A-Series panelboard family.
Can the FBN16TE030RV replace older GE circuit breakers?
Yes, this Record Plus FB frame breaker serves as a direct upgrade and replacement for legacy GE TED113030 models.
What wire sizes and materials are compatible with the terminals on this breaker?
The factory-installed lugs are rated for both copper and aluminum conductors ranging from 10 AWG to 4 AWG.
What does the N in the FBN16TE030RV part number signify?
The N indicates the normal interrupting capacity tier for the Record Plus FB frame, which provides a 65kAIC rating at 277VAC.
Why is this breaker branded as both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Record Plus FB frame breakers may carry either the ABB or GE logo, but they are identical in fit, form, and function.
Is this breaker suitable for 480Y/277V distribution systems?
Yes, this 1-pole breaker is rated for 277VAC, making it appropriate for 277V branch circuits derived from a 480Y/277V solidly grounded wye system.
Are the thermal and magnetic trip settings adjustable on this model?
No, the FBN16TE030RV features a fixed thermal and fixed magnetic trip unit. The 30A rating and instantaneous trip points cannot be modified in the field.
