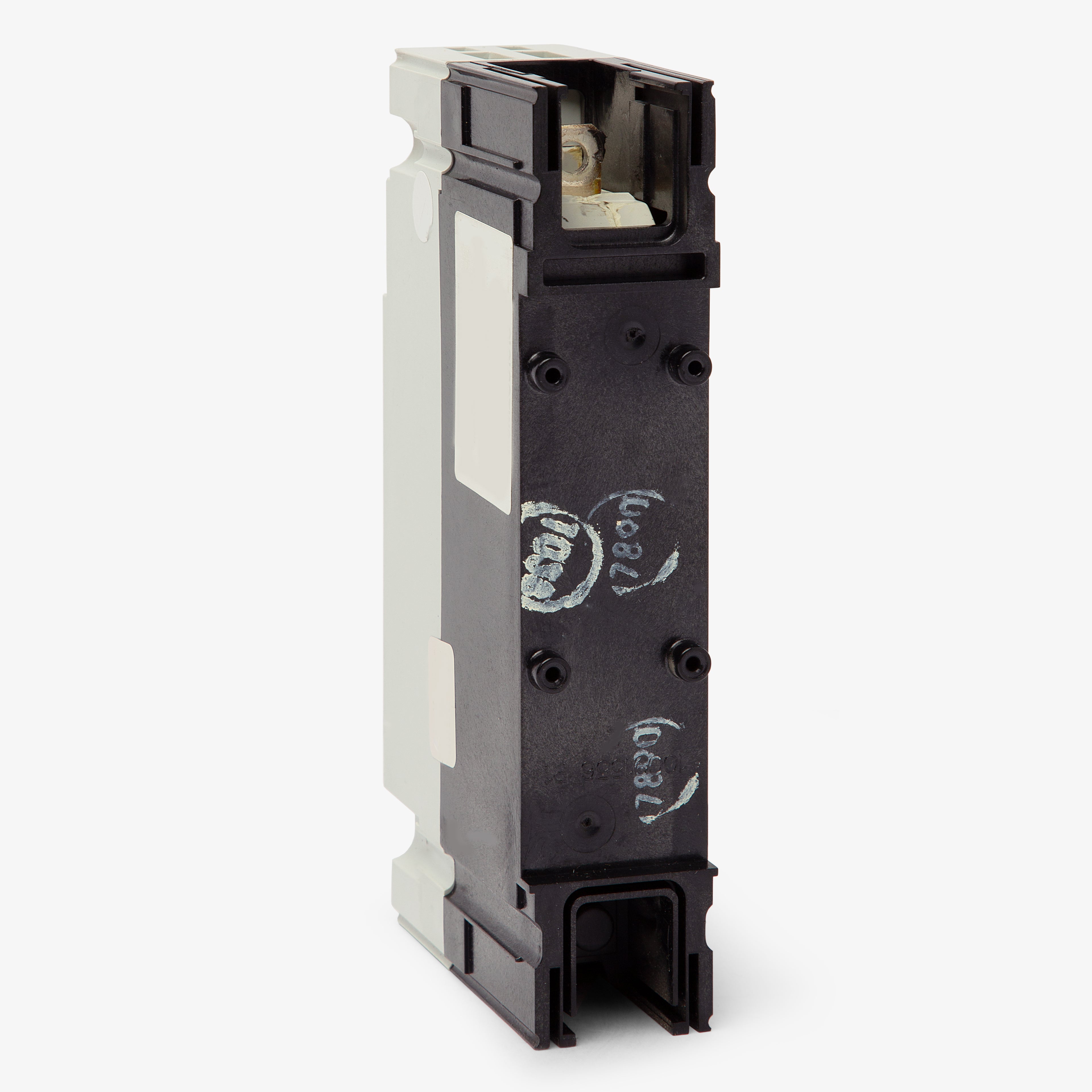

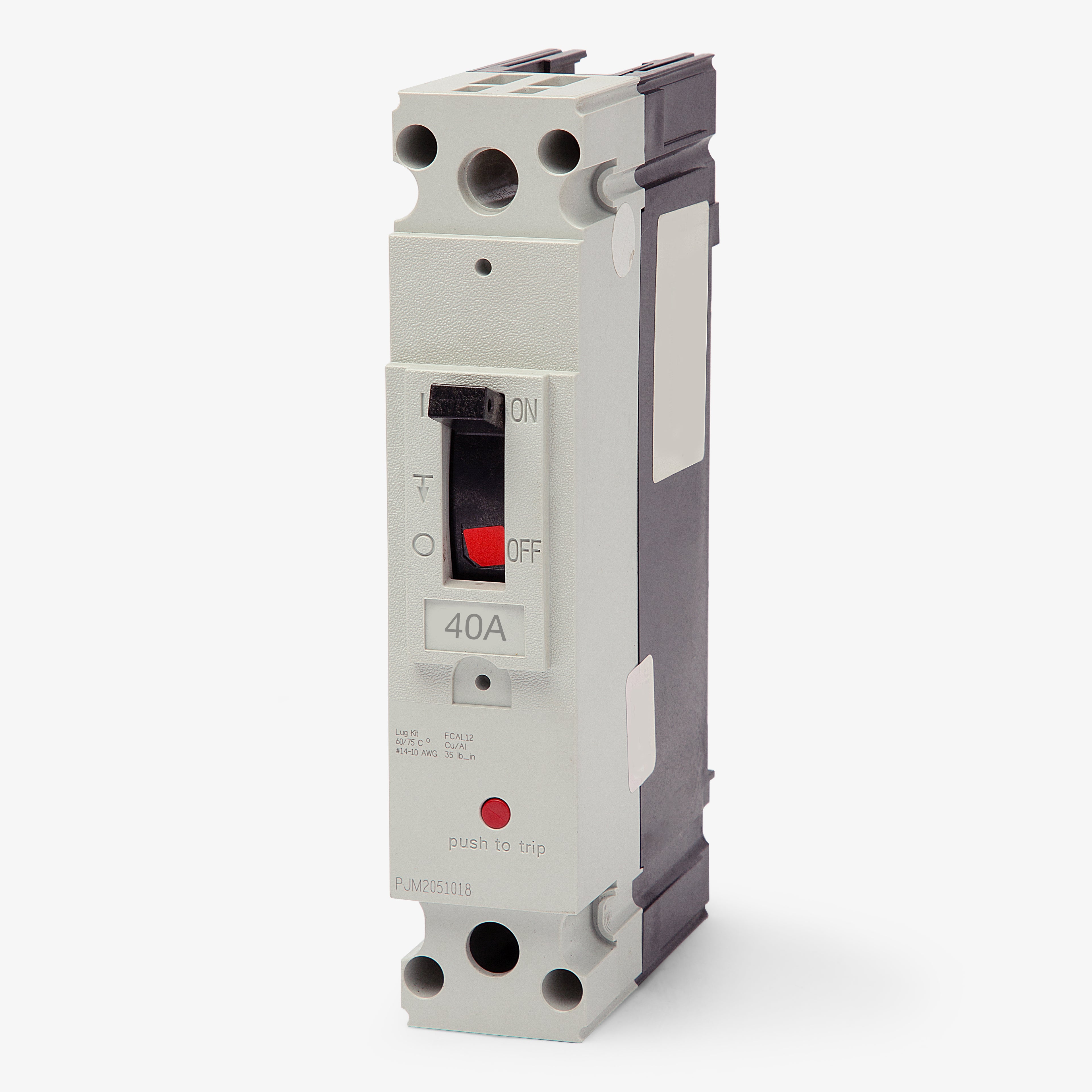

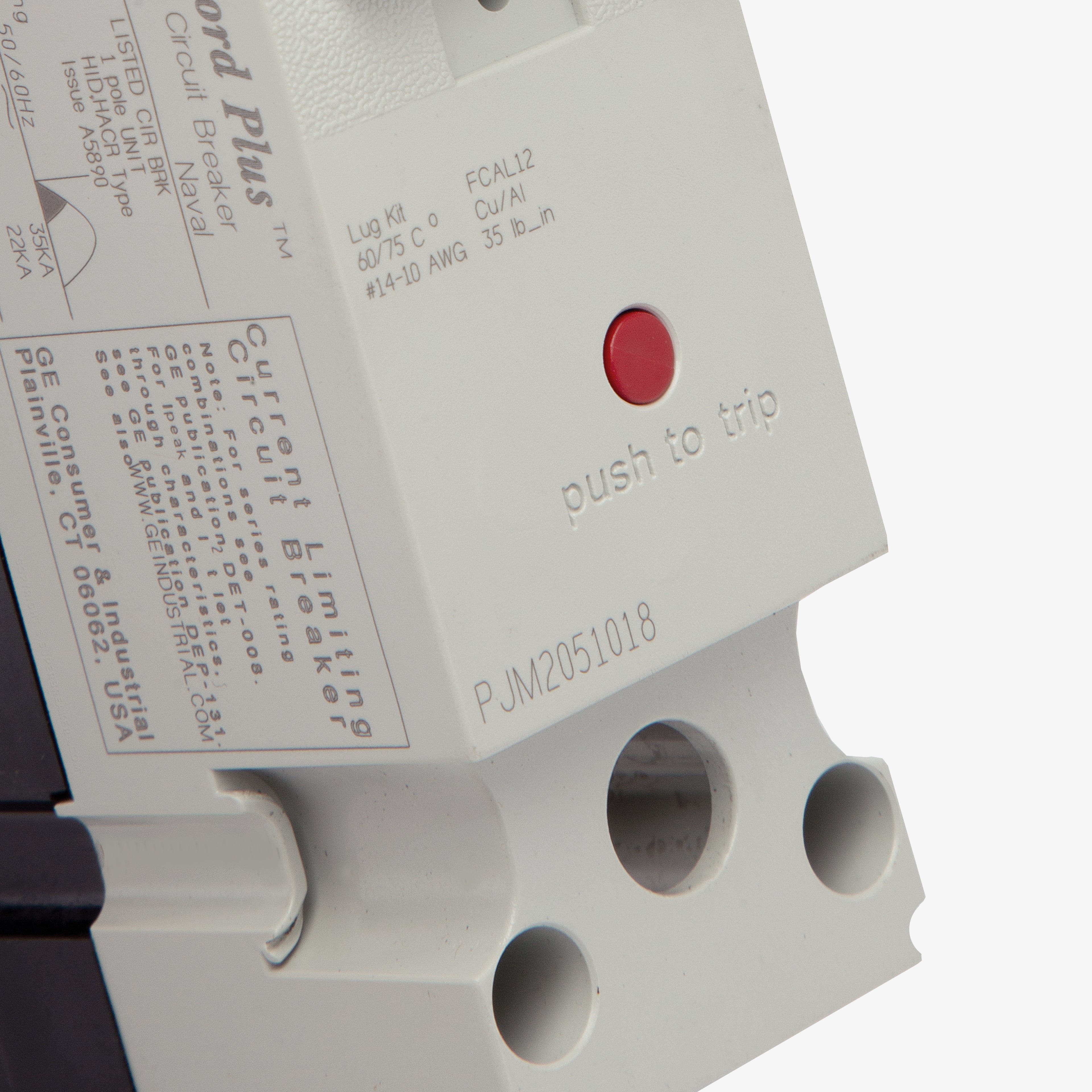

ABB / General Electric FBN16TE040RV - 40A 1 Pole Molded Case Circuit Breaker

New

$368.18 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

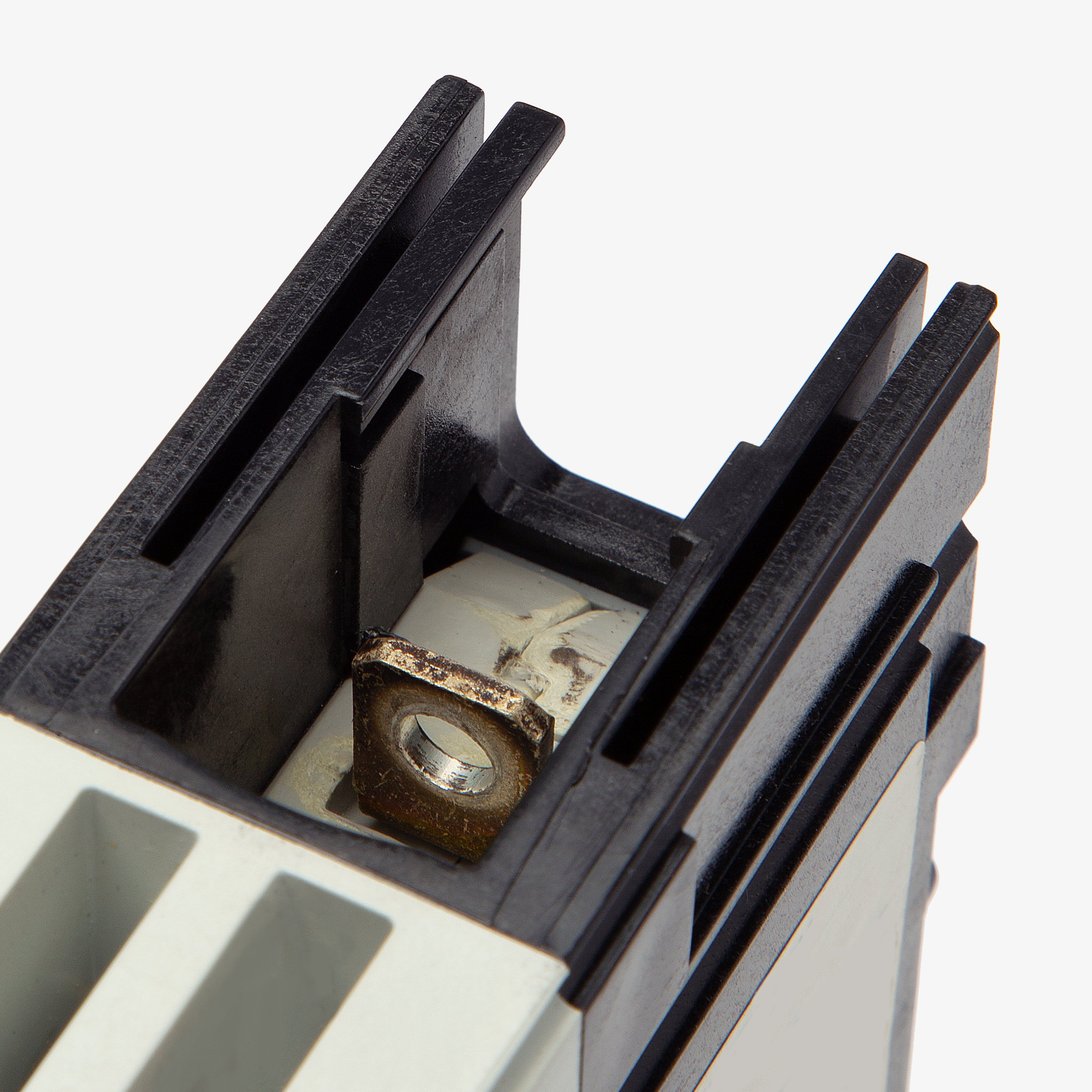

Engineered for commercial and industrial applications, this 40A Record Plus FBN series breaker provides robust current-limiting performance. It installs into GE Type AD and A-Series panelboards using a secure bolt-on connection and features a double-break rotary contact structure. Serving as a modern substitute for the discontinued TED114040, it maintains a 65kA interrupting capacity at 277VAC. The unit includes fixed thermal-magnetic trip functions and carries a HACR rating for HVAC systems.

Specifications

Brand ABB / General Electric
Series FBN
Part Number FBN16TE040RV
Amperage 40A
Voltage 240VAC, 277VAC, 347VAC
Poles 1
Phase 1
AIC Rating 65kA @ 240VAC, 65kA @ 277VAC, 25kA @ 347VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With GE Type AD Panelboards, GE A-Series Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 10-4 AWG (Cu/Al)
Max Wire 4 AWG
Min Wire 10 AWG
Available Options Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release
Accessories Load Side Lugs, Line Side Panel Connectors
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, HACR, UL
Temp Rating -40C to 80C
Construction Features Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism
