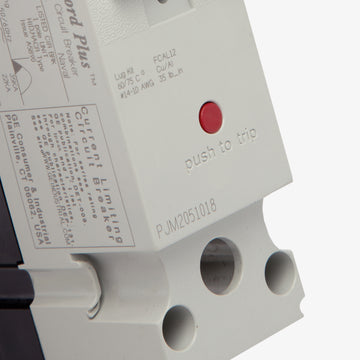

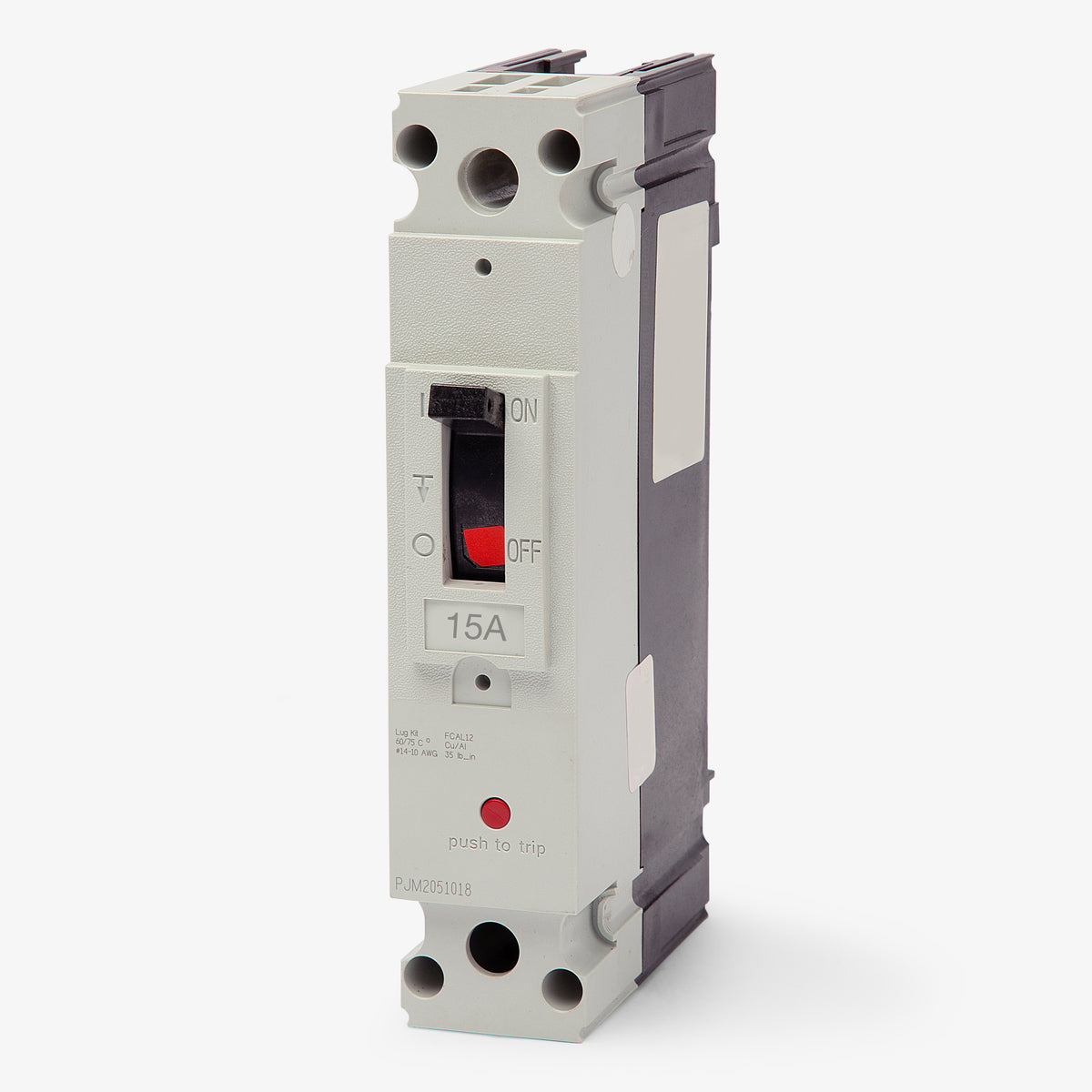

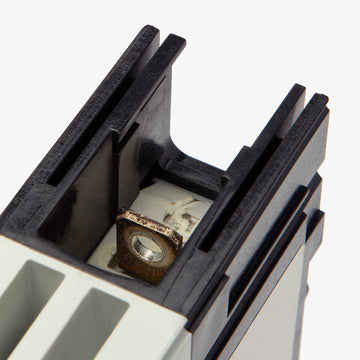

ABB / General Electric FBV16TE015RV Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
ABB / General Electric
FBV16TE015RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV16TE015RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBV16TE015RV - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV16TE030RV
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE015RV
15A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV36TE015RV
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the GE FBV16TE015RV is a 1-pole, 15A molded case circuit breaker from the Record Plus FBV series. It delivers robust thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This bolt-on MCCB is engineered for compatibility with GE A-Series Type AD panelboards. Rated at 35kAIC at 277V, it is HACR rated and reverse feed capable. Note that this legacy model is replaced by the Tmax XT series.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV16TE015RV |
| Series | FBV |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 35kA @ 277VAC, 22kA @ 347VAC |
| Frame Type | FBV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Type AD Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Naval Rated |
Product FAQs
5 answersWhich panelboards are compatible with the FBV16TE015RV?
This breaker is designed for use in GE A-Series Type AD panelboards. It features a bolt-on connection specific to these distribution panels.
What wire sizes are accepted by the lugs on this 15A breaker?
The factory-installed lugs accept 14 AWG to 10 AWG wire. They are rated for both copper (Cu) and aluminum (Al) conductors.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The Record Plus family, including the FBV frame, was originally developed by GE and is now manufactured and supported by ABB.
Can I adjust the trip settings on the FBV16TE015RV?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection settings are factory calibrated for 15 amps and cannot be modified in the field.
What does the V in the FBV frame designation indicate?
In the GE Record Plus nomenclature, the V designates the specific interrupting capacity tier for the FB frame. For this 1-pole breaker, it provides a 35kA rating at 277VAC and 22kA at 347VAC.
