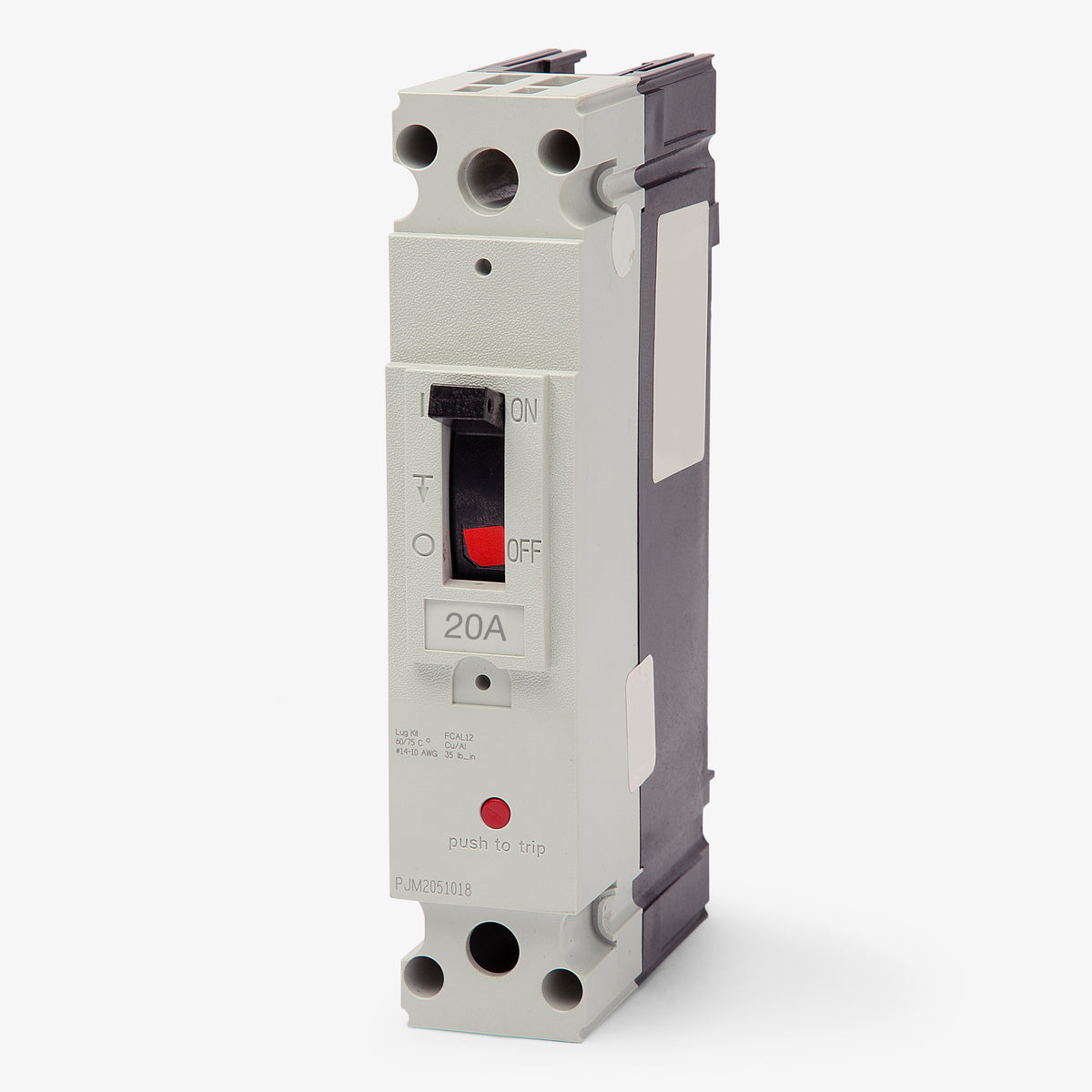

ABB / General Electric FBV16TE020RV Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
FBV16TE020RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV16TE020RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

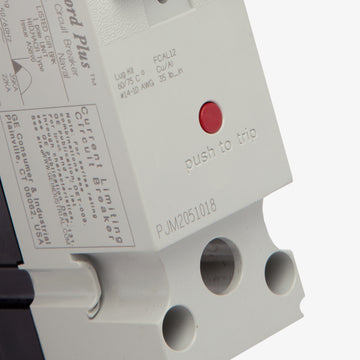

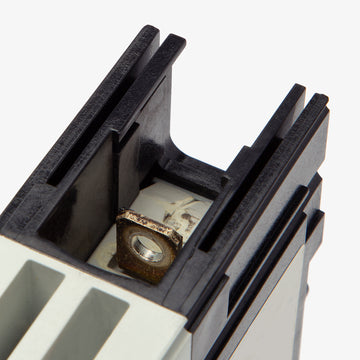

ABB / General Electric FBV16TE020RV - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV16TE030RV
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE020RV
20A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV36TE020RV
20A 3 Pole Molded Case Circuit Breaker
Description
Designed for high-performance electrical distribution, the GE FBV16TE020RV is a 1-pole, 20A molded case circuit breaker from the Record Plus family. It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) protection. This bolt-on MCCB installs into GE A-Series Type AD panelboards and is rated for 35kAIC at 277V. It includes advanced current-limiting capabilities, reverse feed functionality, and carries both HACR and HID ratings for specialized loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV16TE020RV |
| Series | FBV |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 35kA @ 277VAC, 22kA @ 347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series AD Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Connections for AD Panels |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, HID Rated, Reverse Feed, Double-Break Rotary Contact Structure, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the FBV16TE020RV circuit breaker?
This Record Plus FB-frame breaker is designed exclusively for bolt-on installation in commercial and industrial GE A-Series AD Panelboards. It is not compatible with standard residential Q-Line load centers.
Why might this breaker be branded as ABB instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the production date, your FBV16TE020RV may feature either ABB or GE branding. Both versions are identical in form, fit, and function.
Does the FBV16TE020RV require a separate trip unit to be installed?
No, this breaker includes a factory-sealed, fixed thermal-magnetic trip unit. It provides non-adjustable long-time and instantaneous (LI) overcurrent protection out of the box.
Is the FBV16TE020RV suitable for HVAC equipment protection?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration motor loads.
Can the FBV16TE020RV be used to switch lighting loads?
Yes, this breaker carries an HID (High-Intensity Discharge) rating, making it suitable for safely switching high-inrush lighting loads on a regular basis.
Can the FBV16TE020RV be reverse fed in a panel?
Yes, this thermal-magnetic MCCB supports reverse feed functionality, meaning line power can be connected to either the top or bottom terminals without compromising protection.
