ABB / General Electric FBV16TE030RV Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
FBV16TE030RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV16TE030RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

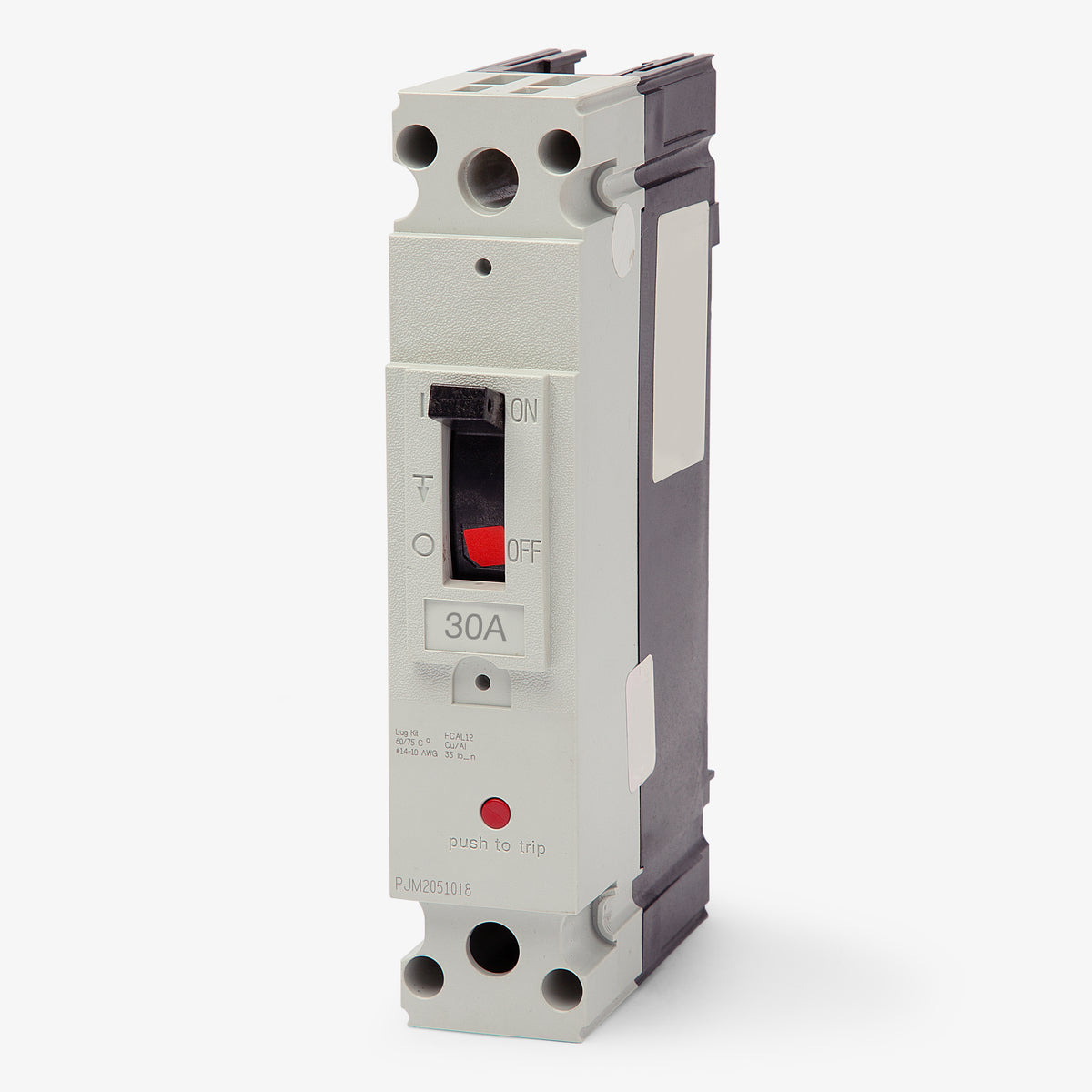

ABB / General Electric FBV16TE030RV - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV16TE015RV
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE030RV
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV36TE030RV
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the GE FBV16TE030RV operates as a 30A, single-pole molded case circuit breaker within the Record Plus family. This bolt-on MCCB installs into GE A-Series Type AD panelboards. It serves as a reliable component for new installations or as a replacement for aging infrastructure, though the series is eventually replaced by the Tmax XT line. Featuring thermal-magnetic trip technology, it provides a 35kAIC rating at 277V and is fully HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV16TE030RV |
| Series | FBV |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 35kA @ 277VAC, 22kA @ 347VAC |
| Frame Type | FBV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Naval Rated, Double-Break Rotary Contact Structure |
Product FAQs
7 answersWhat panelboards are compatible with the FBV16TE030RV?
This bolt-on circuit breaker is designed specifically for installation in GE A-Series Type AD panelboards.
Why might my FBV16TE030RV arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. As a result, Record Plus circuit breakers like the FBV16TE030RV may feature either ABB or GE branding depending on the manufacturing date. The form, fit, and function remain identical regardless of the label.
Is the FBV16TE030RV suitable for use with heating and air conditioning equipment?
Yes, this Record Plus circuit breaker is HACR rated, making it suitable and compliant for use with heating, air conditioning, and refrigeration equipment.
What are the lug wire size requirements for the FBV16TE030RV?

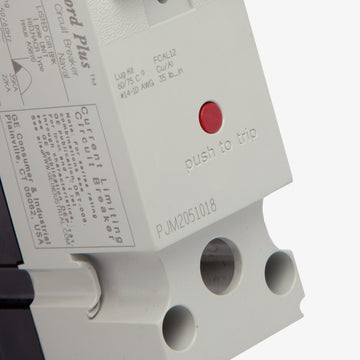

The factory-installed lugs are rated for both copper and aluminum conductors. They accommodate wire sizes ranging from 10 AWG to 4 AWG, providing flexibility for various commercial wiring applications.
Can the FBV16TE030RV be used in 480Y/277V commercial systems?
Yes, this 1-pole breaker is rated for 277VAC with a 35kAIC interrupting capacity, making it ideal for branch circuit protection in 480Y/277V commercial and industrial distribution systems.
How does the FBV16TE030RV mount into the panelboard?

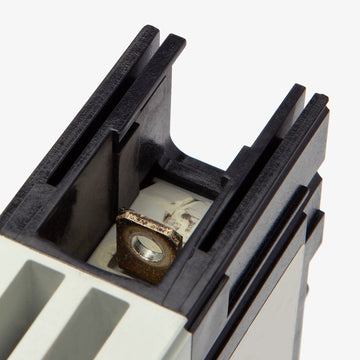

This is a bolt-on molded case circuit breaker that secures directly to the busbars of compatible GE A-Series Type AD panelboards using bolted connections, ensuring a secure and reliable contact.
What type of trip unit is installed in the FBV16TE030RV?
This breaker features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous (LI) trip functions for reliable overload and short circuit protection.
