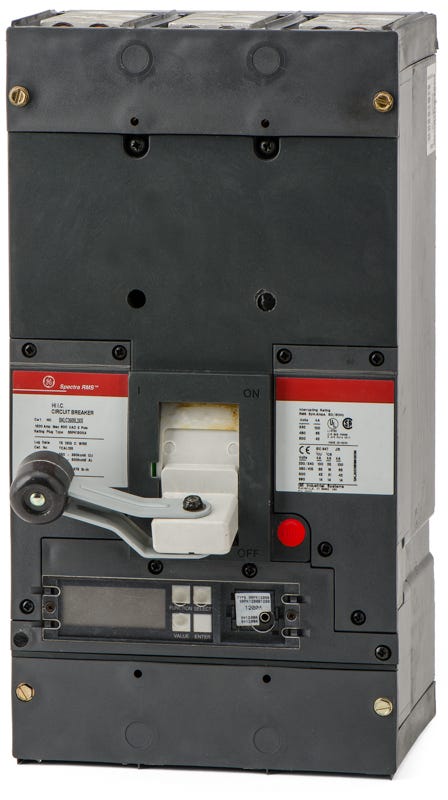

ABB / General Electric SKLC3608L3XX Molded Case Circuit Breaker
- 800A
- 3 Pole
- Bolt-On
ABB / General Electric
SKLC3608L3XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SKLC3608L3XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SKLC3608L3XX - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSKLC3612L4XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLC3612L5XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLC3612L7XX
1200A 3 Pole Molded Case Circuit Breaker
Description
Built for advanced system coordination, the GE SKLC3608L3XX is a 3-pole, 800A Spectra RMS MCCB. It features a microEntelliGuard trip unit with adjustable LSI functions. This bolt-on breaker installs into GE Spectra Series panelboards and switchboards. It can be upgraded to the ABB Tmax XT7 platform using a retrofit kit. Providing 65kAIC at 480V, it offers reliable current-limiting capabilities, reverse feed compatibility, and an interchangeable trip unit design.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLC3608L3XX |
| Series | SKLC |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 42kA @ 600VAC, 100kA @ 120/240VAC |
| Amperage Range | 400-800A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, GE Spectra Series Switchboards, GE Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs, Padlock Attachment |
|---|---|
| Accessories | No factory-installed accessories |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting, True RMS Sensing, Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards and switchboards are compatible with the SKLC3608L3XX?
This SK-frame breaker is designed specifically for use in GE Spectra Series panelboards, Spectra Series switchboards, and GE Motor Control Centers. It secures to the bus via a standard bolt-on connection.
What adjustments are available on the microEntelliGuard trip unit?
The SKLC3608L3XX features an electronic LSI trip unit, allowing electricians to adjust the Long-Time, Short-Time, and Instantaneous pickup and delay settings. This facilitates precise selective coordination in complex distribution systems. The unit also includes basic metering and communication capabilities.
What wire sizes are accepted by the standard lugs on this 800A breaker?
The factory lugs accept three conductors per phase, ranging from 3/0 AWG to 500 kcmil. They are rated for both aluminum and copper wire. Always verify the specific torque requirements printed on the breaker faceplate during installation.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, Spectra RMS series breakers like the SKLC3608L3XX may feature either GE or ABB branding depending on the manufacturing date. Regardless of the label, they are physically and electrically identical and fully interchangeable.
What precautions are required when adjusting the LSI settings on the trip unit?
Adjustments should only be made by qualified personnel following a facility coordination study. Altering the Long-Time, Short-Time, or Instantaneous settings on an active 800A circuit can cause unintended tripping or compromise established arc flash boundaries.
