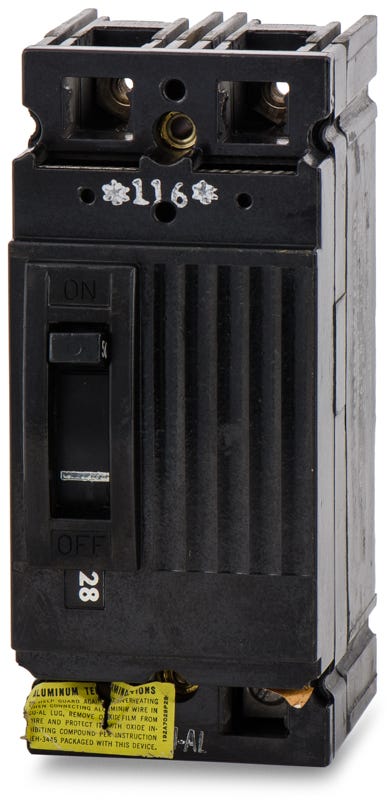

ABB / General Electric TE122050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Unit Mount
ABB / General Electric
TE122050
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE122050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE122050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHQC2150WL
50A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL2050B
50A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 50-amp Q-Line molded case circuit breaker provides robust thermal-magnetic protection. The unit features non-interchangeable trips and standard LI functions. It mounts into GE A-Series panelboards using a standard unit mount configuration. Facility managers often utilize this model to replace older TEB122050 units in existing electrical systems. Rated for 10kAIC at 240VAC, it includes factory-installed line and load lugs for wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE122050-R |
| Series | TE |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC, 10kA @ 120/240VAC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip |
Product FAQs
4 answersWhat panelboards are compatible with the TE122050 circuit breaker?
This breaker is designed specifically for use in GE A-Series panelboards. It uses a standard unit mount configuration for secure bolt-on installation.
Can the TE122050 be used to replace an older TEB122050 breaker?
Yes, the TE122050 is a direct replacement for the older TEB122050. Both are 50A, 2-pole molded case circuit breakers that mount in the same GE A-Series panelboards.
Does this breaker come with line and load lugs?
Yes, the TE122050 includes factory-installed line and load lugs. The terminals accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire.
Are the trip settings on the TE122050 adjustable?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions.
