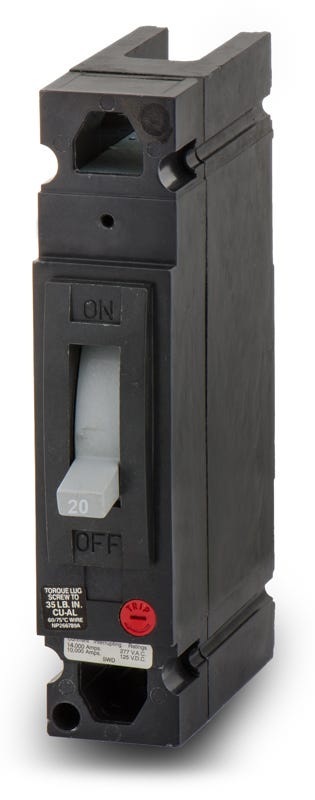

ABB / General Electric TEB111020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
TEB111020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB111020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB111020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB111020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111020 |
| Series | TEB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, SWD Rated |
Quantity
ABB / General Electric TEB111020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111020-R |
| Series | TEB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, SWD Rated |
Similar Items
ABB / General ElectricTEB111040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111050
50A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111060
60A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the GE TEB111020 is a 1-pole, 20A molded case circuit breaker. It belongs to the legacy E150 line and provides dependable overload and short-circuit protection for branch circuits. This bolt-on breaker mounts into GE A-Series panelboards. It features a compact E-frame design with standard lug terminals for secure wire connections. Rated for 10kAIC at 120VAC, it utilizes fixed thermal and magnetic trip elements for reliable safety.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111020 |
| Series | TEB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, SWD Rated |
Product FAQs
8 answersWhat panelboards are compatible with the TEB111020 circuit breaker?
This bolt-on breaker is specifically designed for use in GE A-Series panelboards, as well as compatible commercial switchboards and motor control centers. It will not fit in standard residential plug-on load centers.
Can the TEB111020 be used in reverse-feed applications?
Yes, GE E-Frame circuit breakers like the TEB series are suitable for reverse-feed installations.
How does the TEB series compare to TED and THED breakers?
TEB, TED, and THED breakers all share the exact same E150 physical frame size and mount identically in GE panels. The difference lies in their voltage ratings and maximum interrupting capacities (AIC), with TEB being the standard-tier option and TED or THED offering higher fault protection.
What are the physical dimensions of this 1-pole breaker?
As part of the GE E150 frame family, this 1-pole breaker measures approximately 1.375 inches wide, 6.31 inches high, and 3.37 inches deep.
Is the TEB111020 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration motor loads.
What wire sizes are accepted by the terminals on the TEB111020?
The standard lugs on this breaker accept 14 AWG to 8 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
What does the LI trip function mean on this breaker?
The LI designation indicates that the breaker is equipped with Long-Time (thermal) and Instantaneous (magnetic) trip functions. These fixed settings provide reliable protection against sustained overloads and sudden short circuits.
How is this circuit breaker secured inside the enclosure?
The TEB111020 requires a bolt-on connection to the panelboard busbar. This provides a mechanically secure and vibration-resistant installation suited for commercial and industrial environments.
