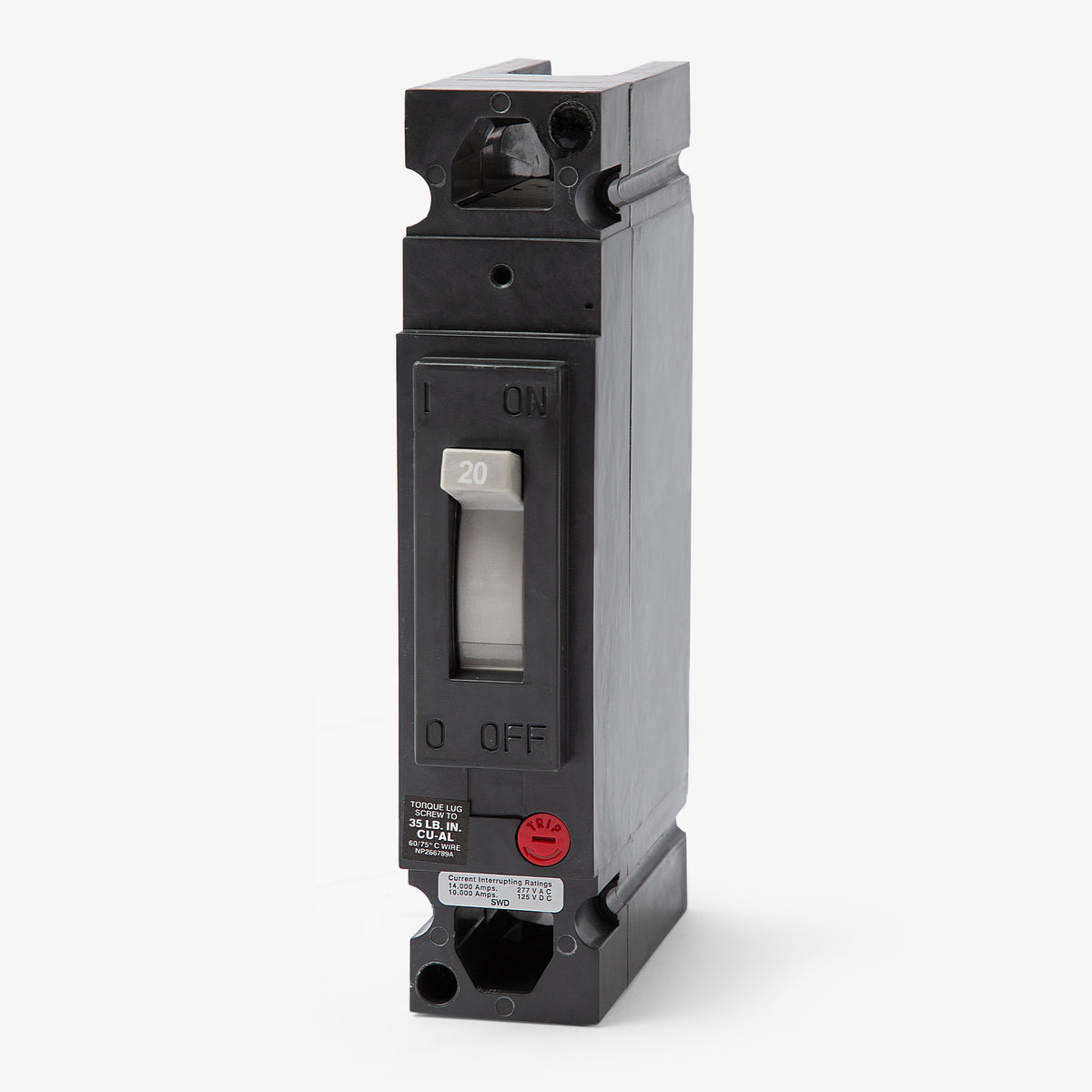

ABB / General Electric TED113020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
TED113020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED113020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113020 |
| Series | TED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TED113020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113020-R |
| Series | TED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED113030
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED114030
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113010
10A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the GE TED113020 is a 1-pole, 20A molded case circuit breaker belonging to the E150 line. It utilizes fixed thermal and magnetic trip elements to deliver precise long-time and instantaneous (LI) protection against overcurrents. This breaker mounts securely into GE A-Series and Spectra Series panelboards. It includes a factory-installed load side lug (TCAL12) for 14-8 AWG wire. Rated 14kAIC at 277VAC, it is both HACR and SWD rated for lighting loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113020 |
| Series | TED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are engineered to accept this breaker?
The TED113020 is a bolt-on branch breaker designed specifically for legacy GE A-Series panelboards and Spectra Series panelboards. It is also utilized in select General Electric motor control centers requiring E150 frame devices.
Can this breaker be installed in DC power systems?
Yes. While commonly applied in 277V AC commercial lighting and branch circuits, it is also rated for direct current control and distribution systems up to 125V DC, where it provides 10kA of short-circuit protection.
Is the GE TED113020 suitable for heating, air conditioning, and refrigeration loads?
Yes, this circuit breaker is HACR rated, making it fully approved for protecting dedicated branch circuits serving HVAC and refrigeration equipment.
Can the TED113020 be used as a switch for lighting circuits?
Yes. Like most 15A and 20A single-pole GE E-frame breakers, this model carries a Switching Duty (SWD) designation. This rating ensures it can be used to routinely switch 277V fluorescent lighting loads without damaging the internal contacts.
Does the TED113020 support reverse feeding?
Yes, General Electric TED frame molded case circuit breakers are suitable for reverse feed applications. They can be installed and safely backfed in configurations that require line power to enter from the bottom lugs.
What is the difference between the TED113020 and the THED113020?
Both breakers belong to the GE E150 legacy frame family and share identical physical dimensions and mounting requirements. However, the THED113020 features reinforced internal barriers to achieve a higher interrupting capacity (65kAIC at 277V). If your system fault current calculation exceeds the 14kAIC rating of the TED model, the THED is the direct high-interrupting upgrade.
