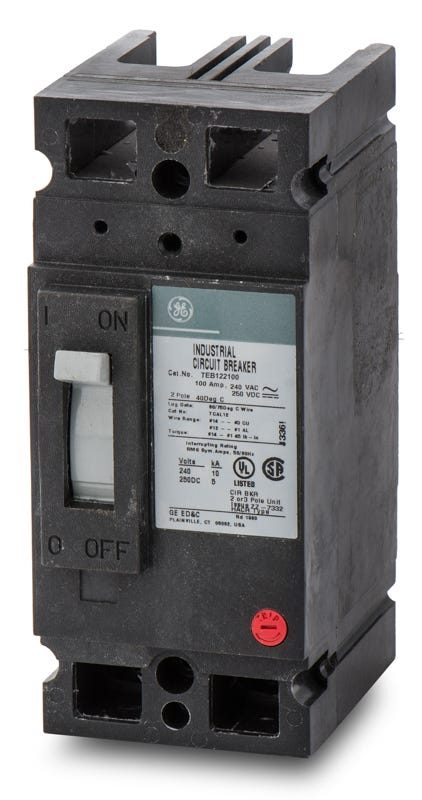

ABB / General Electric TEB122100WL Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
ABB / General Electric
TEB122100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB122100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB122100WL - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEB122030WL
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122020WL
20A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132100WL
100A 3 Pole Molded Case Circuit Breaker
Description
Designed for versatile installation, this 100A unit-mount component features factory-installed line and load lugs. It fastens securely into standalone enclosures, switchboards, and motor control centers without requiring a specific panelboard bus. The thermal-magnetic trip unit delivers reliable long-time and instantaneous protection with a 10kAIC rating at 240VAC. This reverse-feed capable model replaces the legacy TE122100WL while retaining full HACR compliance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122100WL |
| Series | TEB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 6-2/0 AWG (Cu), 4-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the "WL" suffix mean in the TEB122100WL catalog number?
The "WL" suffix indicates that the circuit breaker is factory-supplied with both line and load lugs for copper or aluminum wire. Breakers without this suffix may require lugs to be ordered separately.
Which panelboards are compatible with the TEB122100WL circuit breaker?
This E-frame molded case circuit breaker is designed to bolt into GE A-Series panelboards, Spectra Series panelboards, and compatible modular metering stacks.
Why might my TEB122100WL breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. As a result, E150 line breakers like the TEB122100WL may feature either ABB or GE branding. They are identical in form, fit, and function, and are fully interchangeable.
Can the TEB122100WL be used in reverse-feed applications?
Yes, GE TEB series circuit breakers are non-interchangeable trip devices that are UL listed as suitable for reverse-feed installations.
Is the TEB122100WL suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires HACR-certified circuit protection.
Can I use the TEB122100WL to replace an older TE122100 breaker?
Yes, the TEB122100WL serves as a direct replacement for legacy TE122100 and TE122100WL E-frame breakers in existing GE distribution panels.
