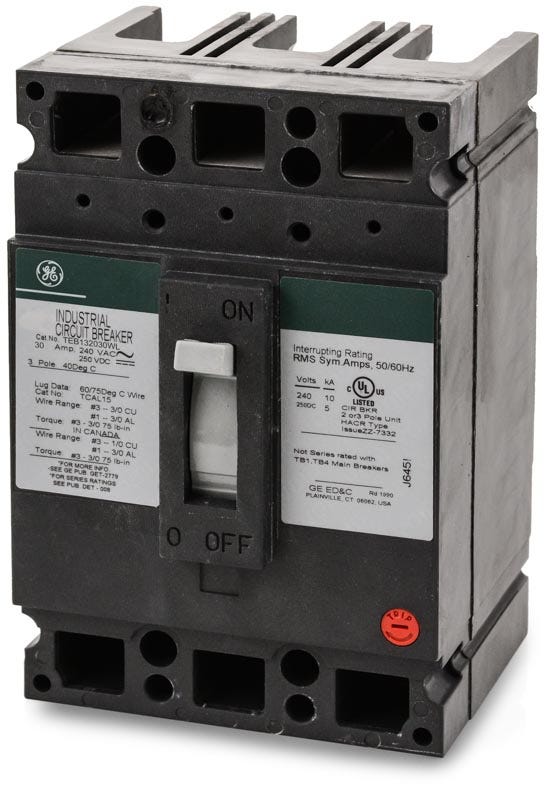

ABB / General Electric TEB132030WL Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
ABB / General Electric
TEB132030WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132030WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132030WL - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB132030WL - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132030WL |
| Series | TEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB132030WL - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132030WL-R |
| Series | TEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB132025WL
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132040WL
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132045WL
45A 3 Pole Molded Case Circuit Breaker
Description
Featuring a unit mount design, the GE TEB132030WL is a 3-pole, 30-amp molded case circuit breaker. It provides essential long-time and instantaneous (LI) protection for industrial power systems. The WL catalog suffix indicates this breaker includes both line and load lugs. This configuration allows it to mount into standalone enclosures, switchboards, and motor control centers. With a 10kAIC rating at 240VAC, it is reverse feed capable and replaces the legacy TE132030WL.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132030WL |
| Series | TEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat does the WL suffix indicate on the TEB132030WL catalog number?
The WL suffix indicates that the circuit breaker is factory-equipped with copper/aluminum (Cu/Al) lugs on both the line and load sides.
What types of equipment is the TEB132030WL compatible with?
This E150 line circuit breaker is designed for unit-mount installations and is commonly used in industrial enclosures, switchboards, motor control centers, and power panelboards.
Can the TEB132030WL be reverse fed?
Yes, GE TEB series circuit breakers are suitable for reverse feed applications.
Is the TEB132030WL rated for HVAC applications?
Yes, this breaker carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What is the temperature rating for the wire terminals on the TEB132030WL?
The terminals on this 30-amp breaker are rated for 60/75 degrees Celsius conductors.
What is the frame size for the TEB132030WL?
The TEB132030WL is built on the GE E150 frame, which supports a maximum capacity of 150 amps.
Why might this breaker be branded as either ABB or General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the TEB132030WL may feature either ABB or GE branding, but the physical dimensions, specifications, and compatibility remain identical.
