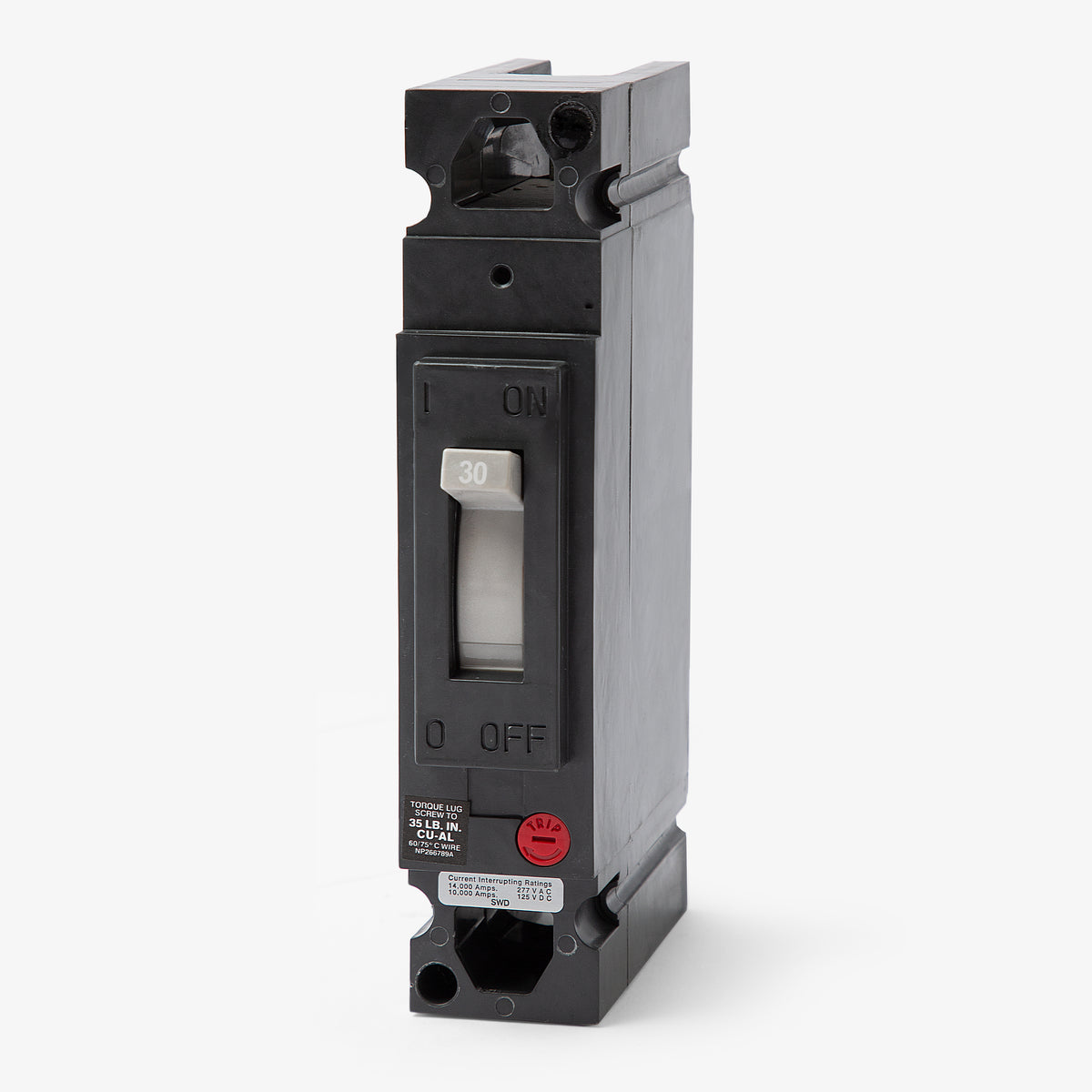

ABB / General Electric TED113030WL Molded Case Circuit Breaker

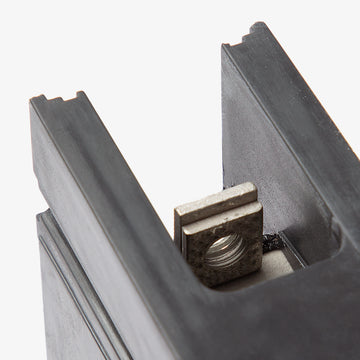

The WL suffix indicates that the circuit breaker comes factory-equipped with both line and load side lugs, making it ready for immediate wiring with copper or aluminum conductors.

Yes, this E150 frame circuit breaker is suitable for reverse feed applications.

ABB acquired GE Industrial Solutions. As a result, TED series breakers may feature either ABB or GE labels. The physical dimensions, fit, and electrical functions remain identical regardless of the brand name.

No, this breaker features a non-interchangeable thermal-magnetic trip unit. The long-time and instantaneous trip settings are fixed and cannot be adjusted in the field.

Yes, this breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment.

This unit mount breaker can be installed in individual GE enclosures such as the TE100S, TE100F, and TE100R, as well as compatible switchboards and motor control centers.

The quick-make, quick-break, trip-free mechanism prevents the contacts from being teased into position. It also ensures the breaker will trip under overload or short circuit conditions even if the operating handle is physically held in the ON position.

When the breaker trips, the handle moves to a center position. To reset the mechanism, move the handle to the extreme OFF position, then push it firmly back to the ON position.
