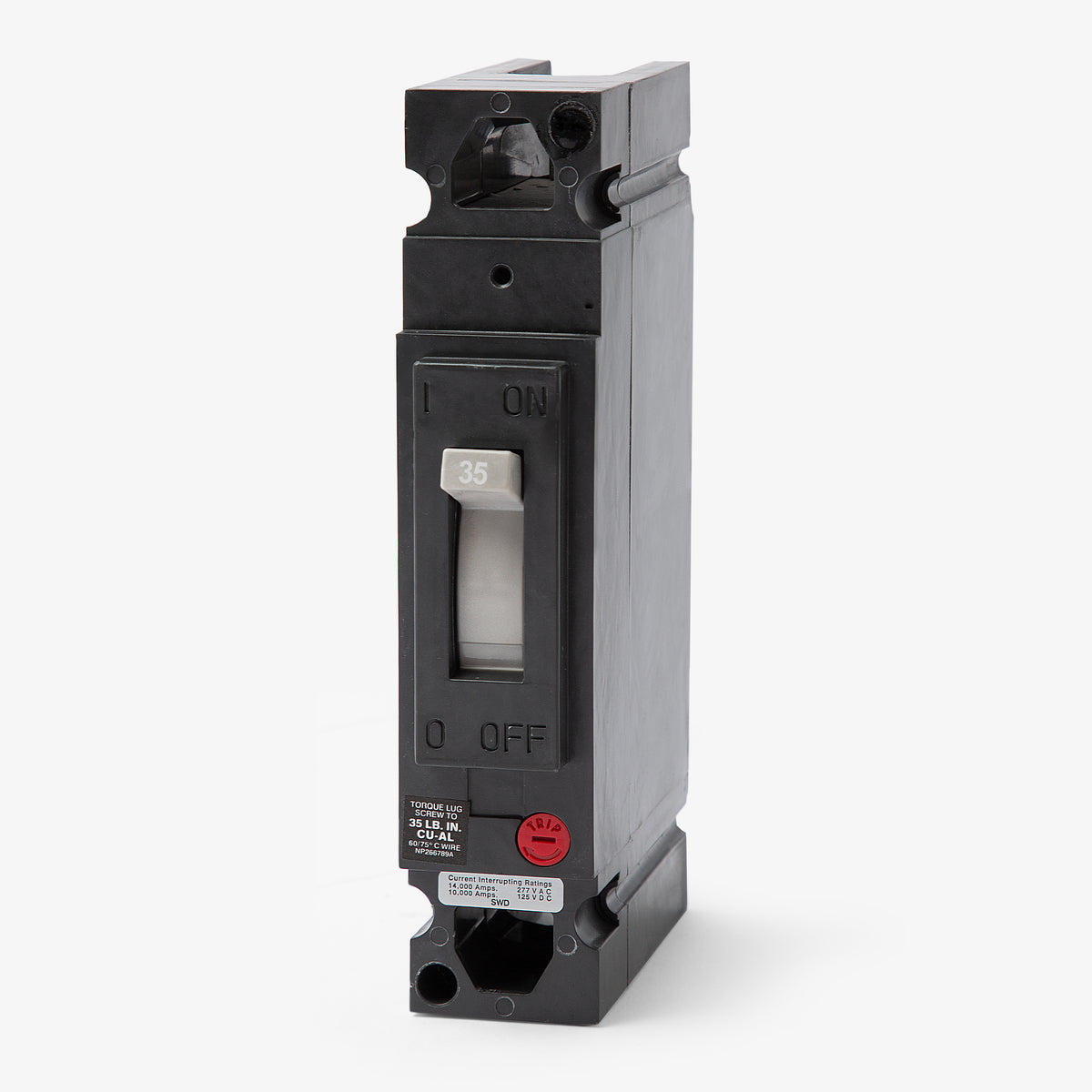

ABB / General Electric TED113035WL Molded Case Circuit Breaker
- 35A
- 1 Pole
- Unit Mount
ABB / General Electric
TED113035WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113035WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113035WL - 35A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113030WL
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113020WL
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134035WL
35A 3 Pole Molded Case Circuit Breaker
Description
Utilizing a rugged thermal-magnetic trip mechanism, this 35A molded case circuit breaker is designed for industrial switchboards and motor control centers. The unit-mount construction features factory-installed TCAL12 line and load lugs, facilitating straightforward wiring in individual enclosures. Capable of handling 14kAIC at 277VAC, the breaker incorporates a trip-free mechanism and reverse feed capabilities, ensuring reliable long-time and instantaneous protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |

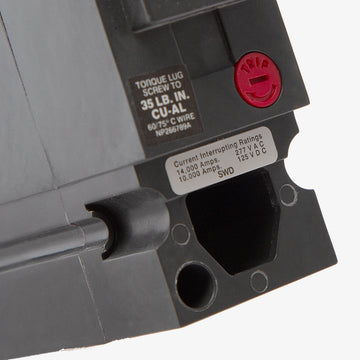

| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|

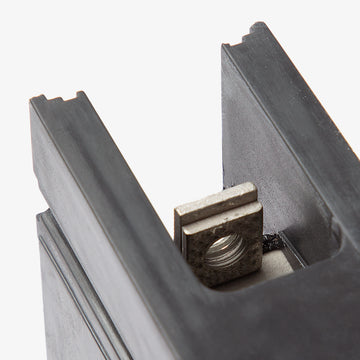

| Accessories | Line and Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the WL suffix mean on the TED113035WL circuit breaker?
The WL suffix indicates that the breaker is supplied from the factory with line and load lugs included. This eliminates the need to order a separate lug kit for termination.
What types of enclosures or panels accept the TED113035WL?
This E-Frame breaker is designed for unit mount or feed-thru installations. It is commonly used in individual enclosures, motor control centers, and industrial switchboards rather than standard load centers.
Is the TED113035WL suitable for reverse feed applications?
Yes, GE TED series molded case circuit breakers are suitable for reverse feed applications, allowing flexibility in how line and load connections are wired.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. Legacy GE E-Frame breakers like the TED series are now manufactured and supported under the ABB brand, but they remain direct replacements for existing GE installations.
Can I adjust the trip settings on the TED113035WL?
No, this breaker features a non-interchangeable, fixed thermal and fixed magnetic trip unit. The trip settings cannot be adjusted in the field.
Does the TED113035WL have a trip-free mechanism?
Yes, it features a trip-free mechanism that ensures the breaker will trip under short circuit or overload conditions even if the operating handle is physically held in the ON position.
