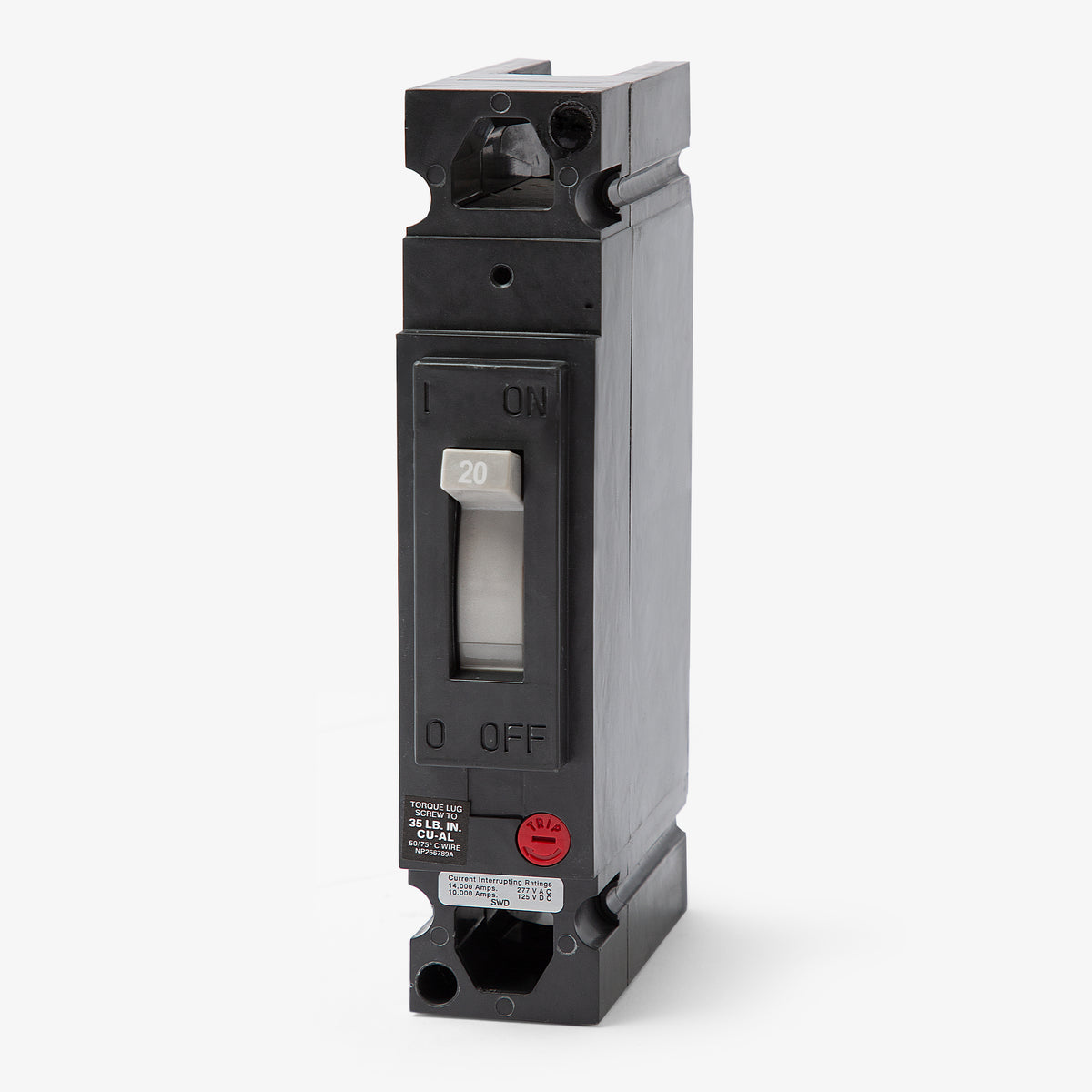

ABB / General Electric TED113020WL Molded Case Circuit Breaker
- 20A
- 1 Pole
- Unit Mount
ABB / General Electric
TED113020WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113020WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113020WL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED113020WL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113020WL |
| Series | TED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |

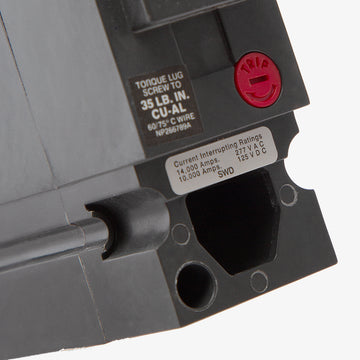

| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|

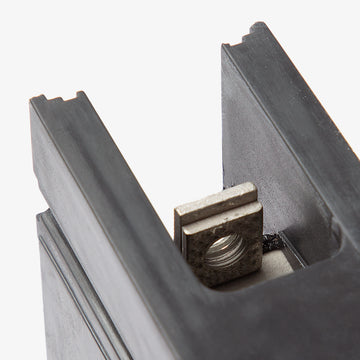

| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TED113020WL - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113020WL |
| Series | TED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED113035WL
35A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113040WL
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124020WL
20A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the GE TED113020WL 1-pole, 20A molded case circuit breaker belongs to the E150 frame family. It provides reliable long-time and instantaneous (LI) thermal-magnetic trip functions. This unit-mount breaker installs into individual enclosures, motor control centers, and switchboards. It features factory-installed line and load lugs (TCAL12). Rated for 14 kAIC at 277VAC, the breaker is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113020WL |
| Series | TED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the WL suffix mean in the TED113020WL catalog number?
The WL suffix indicates that the circuit breaker is factory-equipped with copper/aluminum (Cu/Al) line and load lugs. Part numbers without this suffix are typically shipped without lugs.
Which enclosures are compatible with the TED113020WL breaker?
As part of the GE E150 frame family, this breaker mounts in GE E150 line circuit breaker enclosures, including surface-mount models like the TE150R and TE150S. It is also used in compatible GE switchboards and motor control centers.
How is the TED113020WL installed in a panel?
This is a unit-mount, feed-thru circuit breaker. It does not plug into a busbar. Instead, it bolts directly to a mounting backpan or bracket, and conductors are terminated at the factory-installed line and load lugs.
Is the TED113020WL suitable for reverse feed installations?
Yes, GE E150 line breakers, including the TED series, are suitable for reverse feed applications. This allows flexibility when routing line and load conductors within an enclosure.
Can this breaker be used for HVAC equipment?
Yes, the TED113020WL is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires a breaker with this specific safety designation.
