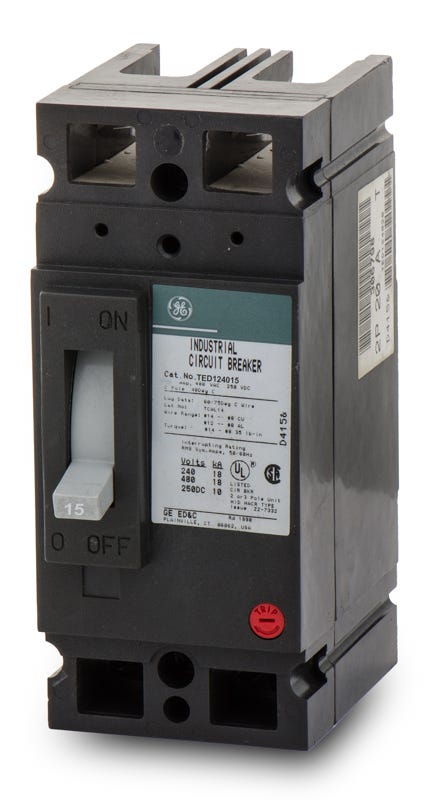

ABB / General Electric TED124015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
ABB / General Electric
TED124015
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED124015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED124015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED124015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124015 |
| Series | TED |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TED124015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124015-R |
| Series | TED |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED124025
25A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124030
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124035
35A 2 Pole Molded Case Circuit Breaker
Description
Built to support heavy-duty commercial environments, this 15-amp, 2-pole molded case breaker provides dependable long-time and instantaneous trip functions. The bolt-on configuration ensures a stable connection within GE A-Series and Spectra Series panelboards. With an 18kA interrupting capacity at 480VAC and reverse feed compatibility, it offers versatile installation options for facility managers maintaining existing infrastructure. Includes load side lugs for standard wire terminations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124015 |
| Series | TED |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards accept the TED124015 circuit breaker?
This E-Frame breaker is designed for installation in GE A-Series and Spectra Series commercial panelboards. It is not compatible with standard residential Q-Line load centers.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, the TED124015 may ship with either ABB or GE branding, but the physical form factor, specifications, and catalog number remain exactly the same.
What wire sizes are supported by the terminal lugs?
The factory lugs accommodate 14 to 3 AWG copper conductors or 12 to 1 AWG aluminum conductors.
Is the TED124015 rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC with a 10kA interrupting capacity for use in direct current systems.
Does this breaker offer adjustable trip settings?
No, the TED124015 features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection parameters cannot be adjusted in the field.
