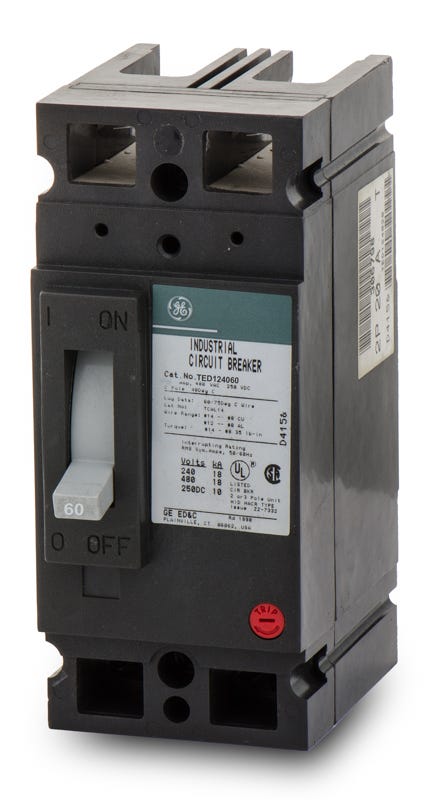

ABB / General Electric TED124060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
ABB / General Electric
TED124060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED124060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED124060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED124060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124060 |
| Series | TED |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TED124060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124060-R |
| Series | TED |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED124050
50A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124045
45A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124080
80A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE TED124060 is a 2-pole, 60A molded case circuit breaker from the E150 line. It provides dependable long-time and instantaneous (LI) overcurrent protection. This E-frame MCCB features a secure bolt-on mounting style. It is specifically designed to install into GE A-Series and Spectra Series panelboards, ensuring a precise fit for power distribution systems. Delivering an 18kAIC rating at 480VAC, it is HACR rated and supports reverse feed configurations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124060 |
| Series | TED |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat is the difference between the TED124060 and TED124060WL catalog numbers?
The WL suffix in GE catalog numbers indicates that the circuit breaker comes factory-equipped with copper/aluminum (Cu/Al) line and load lugs. Both part numbers refer to the same 60-amp E150 frame breaker, but the TED124060WL explicitly includes the terminal lugs.
Which panelboards are compatible with the TED124060 circuit breaker?
This E-frame molded case circuit breaker is designed for bolt-on installation in GE A-Series panelboards and Spectra Series switchboards or panelboards. It is also commonly used in standalone enclosed circuit breaker applications.
Is the GE TED124060 circuit breaker HACR rated?
Yes, all GE TED series circuit breakers above 10 amps, including this 60-amp model, are UL listed as HACR type for use with heating, air conditioning, and refrigeration equipment.
Can the TED124060 be reverse fed?
Yes, GE TEB, TED, and THED series molded case circuit breakers are suitable for reverse feed applications. This allows the breaker to be back-fed when used as a main breaker or in specific generator setups.
Can I upgrade to a THED series breaker if I need a higher interrupting rating?
Yes, the THED series is the high-interrupting (Hi-Break) version of the standard TED series. Both share the same E150 frame footprint and mounting dimensions, allowing a THED breaker to directly replace a TED breaker when a higher fault current rating is required.
How does the TED124060 mount into the panel?
This is a unit-mount, bolt-on circuit breaker. It secures directly to the panelboard bus or mounting bracket using bolts, rather than snapping or plugging into place.
Are the trip settings on the TED124060 adjustable?
No, this breaker features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous (LI) functions. The trip settings cannot be adjusted in the field.
