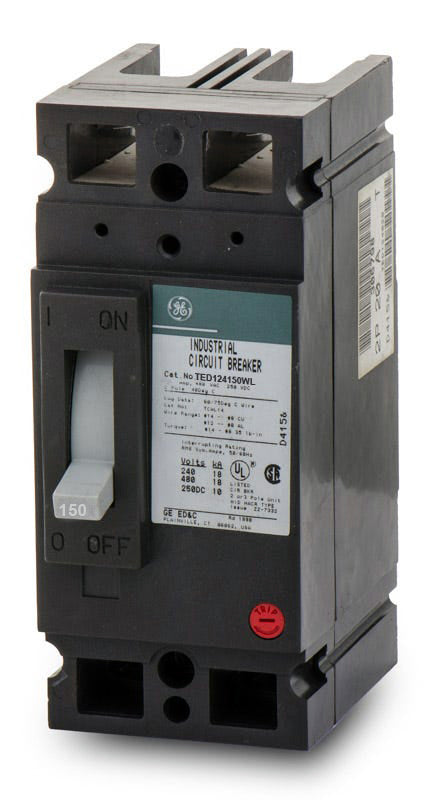

ABB / General Electric TED124150WL Molded Case Circuit Breaker
- 150A
- 2 Pole
- Unit Mount
ABB / General Electric
TED124150WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED124150WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED124150WL - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED124110WL
110A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124030WL
30A 2 Pole Molded Case Circuit Breaker
Description
Delivering reliable power distribution, the GE TED124150WL is a 150A, 2-pole MCCB. As part of the E150 line, it utilizes fixed thermal-magnetic trip technology (LI) to safeguard industrial circuits from overcurrents. Designed for unit-mount setups, it installs into enclosures, switchboards, and motor control centers. It comes equipped with TCAL15 line and load lugs, denoted by the "WL" suffix. With an 18kAIC rating at 480VAC, this HACR-rated breaker features reverse feed capabilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhy might this breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, TED frame breakers may feature either GE or ABB branding depending on the production date. Both versions share the exact same form, fit, and function, and are fully interchangeable under the manufacturer specifications.
What does the WL suffix indicate on the TED124150WL catalog number?
The WL suffix designates that the circuit breaker is factory-equipped with copper and aluminum (Cu/Al) line and load lugs. If a breaker does not have this suffix, it typically requires ordering the lugs separately.
Is the TED124150WL suitable for reverse feed applications?
Yes. General Electric TEB, TED, and THED frame molded case circuit breakers are designed to be suitable for reverse feed installations.
What types of equipment is the TED124150WL designed to be installed in?
This E150 line breaker features a unit mount, feed-thru design. It is commonly installed in individual enclosures, switchboards, and motor control centers rather than standard residential load centers.
What is the terminal temperature rating for this 150A breaker?
General Electric TED frame breakers rated above 100 amps, including this 150A model, carry a 75 degrees Celsius temperature rating for the terminal connections.
