ABB / General Electric TED134010 Molded Case Circuit Breaker
- 10A
- 3 Pole
- Bolt-On
ABB / General Electric
TED134010
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134010
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134010 - 10A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134010 - 10A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134010-R |
| Series | TED |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TED134010 - 10A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134010-R |
| Series | TED |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED136015
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134020
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136020
20A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable three-phase overcurrent defense, the GE TED134010 is a 10-amp molded case circuit breaker tailored for commercial and industrial facilities. It utilizes a fixed thermal-magnetic trip mechanism to handle standard electrical faults. This E-Frame component mounts into GE A-Series and Spectra Series panelboards via a secure bolt-on connection. With an 18kAIC rating at 480VAC, it provides substantial interrupting capacity and features a non-interchangeable trip design.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134010-R |
| Series | TED |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich GE panelboards accept the TED134010 circuit breaker?
This E-Frame breaker is engineered specifically for bolt-on installation in GE A-Series and GE Spectra Series panelboards. It is not compatible with standard residential plug-on load centers.
What does the E-Frame designation mean for the TED134010?
The TED134010 is part of the legacy GE E150 line. E-Frame breakers share identical physical dimensions for ratings up to 150 amps, allowing them to fit the same panelboard mounting hardware and spacing.
Will I receive an ABB or GE branded breaker when ordering the TED134010?
Following the acquisition of GE Industrial Solutions by ABB, this E150 line breaker may arrive with either ABB or GE branding. Both versions are manufactured to the exact same specifications and are fully interchangeable.
Can the trip settings on the TED134010 be adjusted in the field?
No, this breaker features a non-interchangeable, fixed thermal-magnetic trip unit. Both the long-time and instantaneous protection functions are factory set for 10 amps and cannot be modified.
Is the TED134010 suitable for reverse feeding?
Yes, standard GE TED frame breakers, including the TED134010, are suitable for reverse feed applications. This allows the breaker to be back-fed when used in specific panelboard configurations.
What is the difference between the TED134010 and the TED134010WL?
The base TED134010 catalog number typically includes load lugs only. The WL suffix indicates that the breaker is supplied from the factory with both line and load lugs installed.

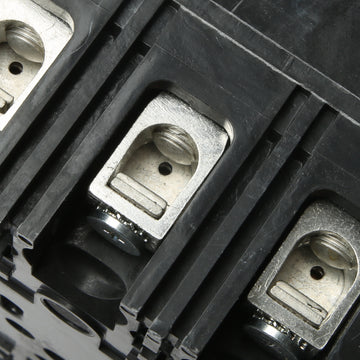

What type of conductors can be terminated on the TED134010 lugs?
The factory lugs are dual-rated for both copper (14 to 3 AWG) and aluminum (12 to 1 AWG) conductors. Always apply an approved oxide inhibitor when terminating aluminum wire to prevent corrosion.
