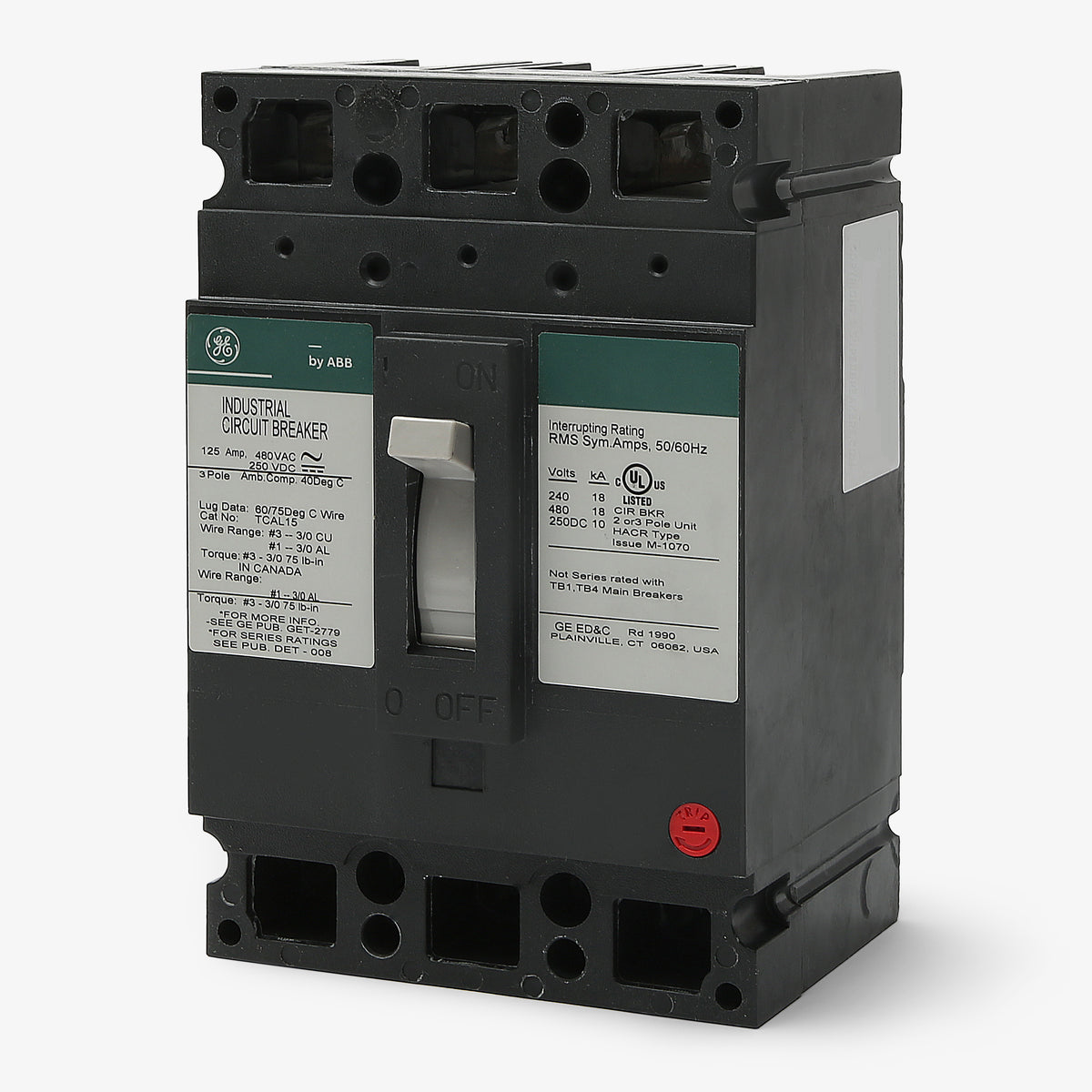

ABB / General Electric TED136015 - 15A 3 Pole Molded Case Circuit Breaker

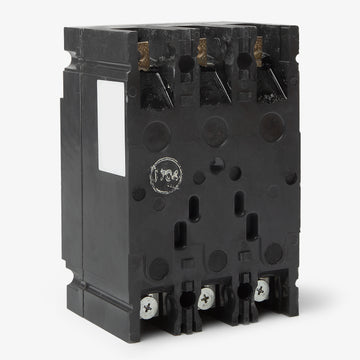

ABB / General Electric TED136015 - 15A 3 Pole Molded Case Circuit Breaker - view 2

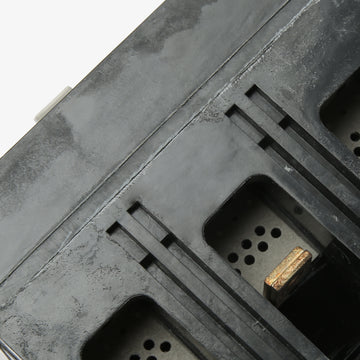

ABB / General Electric TED136015 - 15A 3 Pole Molded Case Circuit Breaker - view 3

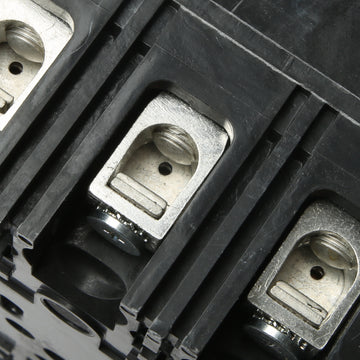

ABB / General Electric TED136015 - 15A 3 Pole Molded Case Circuit Breaker - view 4

ABB / General Electric TED136015 Molded Case Circuit Breaker

  • 15A
  • 3 Pole
  • Bolt-On
ABB / General Electric TED136015
Molded Case Circuit Breaker
Brand ABB / General Electric
SKU TED136015
Select Item Condition
Earn 235 SuperPoints
  • 15A
  • 3 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
ABB / General Electric TED136015 - 15A 3 Pole Molded Case Circuit Breaker

ABB / General Electric TED136015 - 15A 3 Pole Molded Case Circuit Breaker

Re-Certified

$235.10 In Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 4.9 (34)

Description

Part of the legacy E-150 line, this 15-amp molded case circuit breaker provides reliable long-time and instantaneous protection for commercial and industrial systems. It mounts into GE A-Series panelboards, Spectra series switchboards, and motor control centers. Featuring a non-interchangeable trip unit and reverse feed capability, the TED136015 delivers an 18kAIC rating at 480VAC. Load side lugs (TCAL14) are included to facilitate secure wire terminations for 14-8 AWG copper conductors.

Specifications

Key specifications
Brand ABB / General Electric
Part Number TED136015
Series TED
Amperage 15A
Poles 3
Mounting Style Bolt-On
Voltage 240VAC, 480VAC, 600VAC, 250VDC, 500VDC
Phase 3
AIC Rating 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC
Fit and installation
Frame Type TED
Terminal Type Lugs
For Use With GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers
Wire Gauge 14-8 AWG (Cu), 12-8 AWG (Al)
Max Wire 8 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Load Side Lugs Included (TCAL14)
Standards CSA C22.2 No. 5, HACR, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip

Product FAQs

6 answers
Which panelboards are compatible with the TED136015 circuit breaker?

The TED136015 is a bolt-on circuit breaker designed for use in GE A-Series panelboards, Spectra Series panelboards, switchboards, and motor control centers.

Can the TED136015 breaker be reverse fed?

Yes, GE TED frame circuit breakers, including the TED136015, are suitable for reverse feed applications.

What is the recommended lug torque for the TED136015?

The standard load lugs for this 15A breaker require a torque of 35 lb-in for 14-8 AWG copper or 12-8 AWG aluminum wire.

How is the TED136015 wired for 500VDC applications?

While the breaker is rated for 10kAIC at both 250VDC and 500VDC, utilizing the 500VDC rating requires the breaker poles to be wired in series.

What is the modern replacement for the legacy GE TED136015?

The GE TED series is a legacy product line now managed by ABB. The official modern replacement is the ABB Tmax XT1 series, which may require a retrofit hardware kit depending on your existing panelboard.

Does the TED136015 provide GFCI or AFCI protection?

No, the TED136015 is a standard thermal magnetic circuit breaker providing long-time and instantaneous (LI) protection against overloads and short circuits. It does not include ground fault or arc fault protection.
