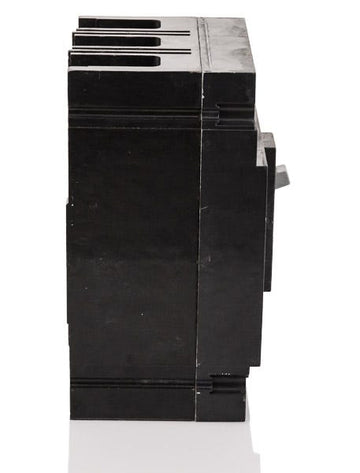

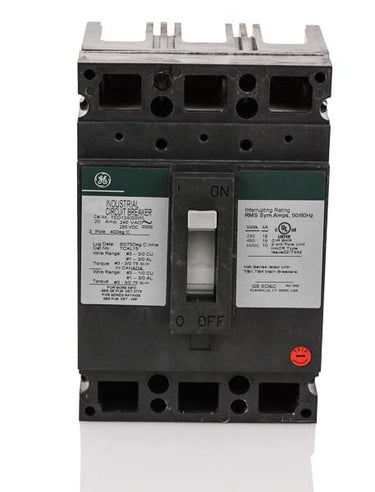

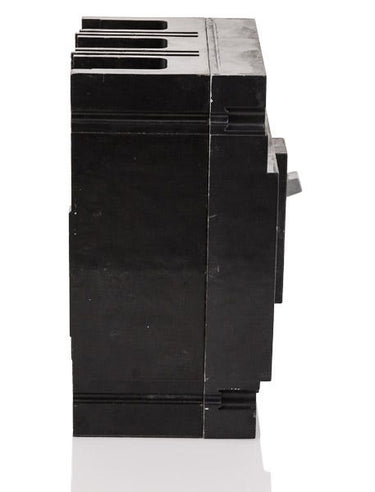

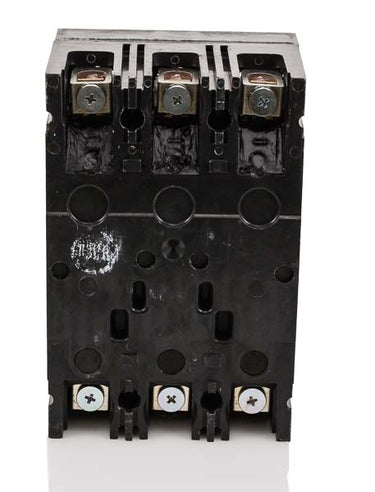

ABB / General Electric TED134020WL Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
ABB / General Electric
TED134020WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134020WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134020WL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134020WL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE E150 Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TED134020WL - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE E150 Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED136025WL
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134025WL
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136015WL
15A 3 Pole Molded Case Circuit Breaker
Description
Built for standalone and switchboard applications, the GE TED134020WL features factory-installed line and load lugs for straightforward unit mounting. This 3-pole, 20A MCCB utilizes a trip-free, quick-make/quick-break mechanism to ensure reliable thermal-magnetic protection. It mounts into GE E150 enclosures and motor control centers. While this legacy E-Frame breaker is discontinued, it can be replaced by the TEYD3020B when equipped with the proper lug kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE E150 Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the "WL" suffix in the TED134020WL catalog number indicate?
The "WL" suffix designates that this General Electric circuit breaker comes factory-equipped with copper/aluminum (Cu/Al) line and load lugs. Without this suffix, the breaker would typically require the lugs to be ordered and installed separately.
Which GE enclosures are designed for the TED134020WL breaker?
This E-frame breaker mounts directly into GE E150 series standalone enclosures, including the surface-mount TE150S and the flush-mount TE150F. It is also fully compatible with standard GE switchboards and motor control centers.
Can the TED134020WL be installed for reverse feed applications?
Yes, GE TED-frame molded case circuit breakers are suitable for reverse feed applications. This allows line power to be connected to either the top or bottom terminals without compromising the breaker's thermal-magnetic protection capabilities.
Is the TED134020WL circuit breaker HACR rated?
Yes, all GE TED series breakers above 10 amps are UL listed as HACR type. This 20-amp unit is fully compliant for protecting multi-motor and combination loads in heating, air conditioning, and refrigeration equipment.
How does this E-frame breaker mount inside a panel or enclosure?
The TED134020WL is a unit-mount, or bolt-on, circuit breaker. It bolts directly to the mounting pan or enclosure backplate rather than snapping onto a live busbar, making it ideal for standalone or feed-thru applications.
Are the trip settings adjustable on this molded case circuit breaker?
No, the TED134020WL features a non-interchangeable trip unit with fixed thermal and fixed magnetic parameters. The Long-Time (L) and Instantaneous (I) trip functions are permanently set at the factory and cannot be adjusted in the field.
