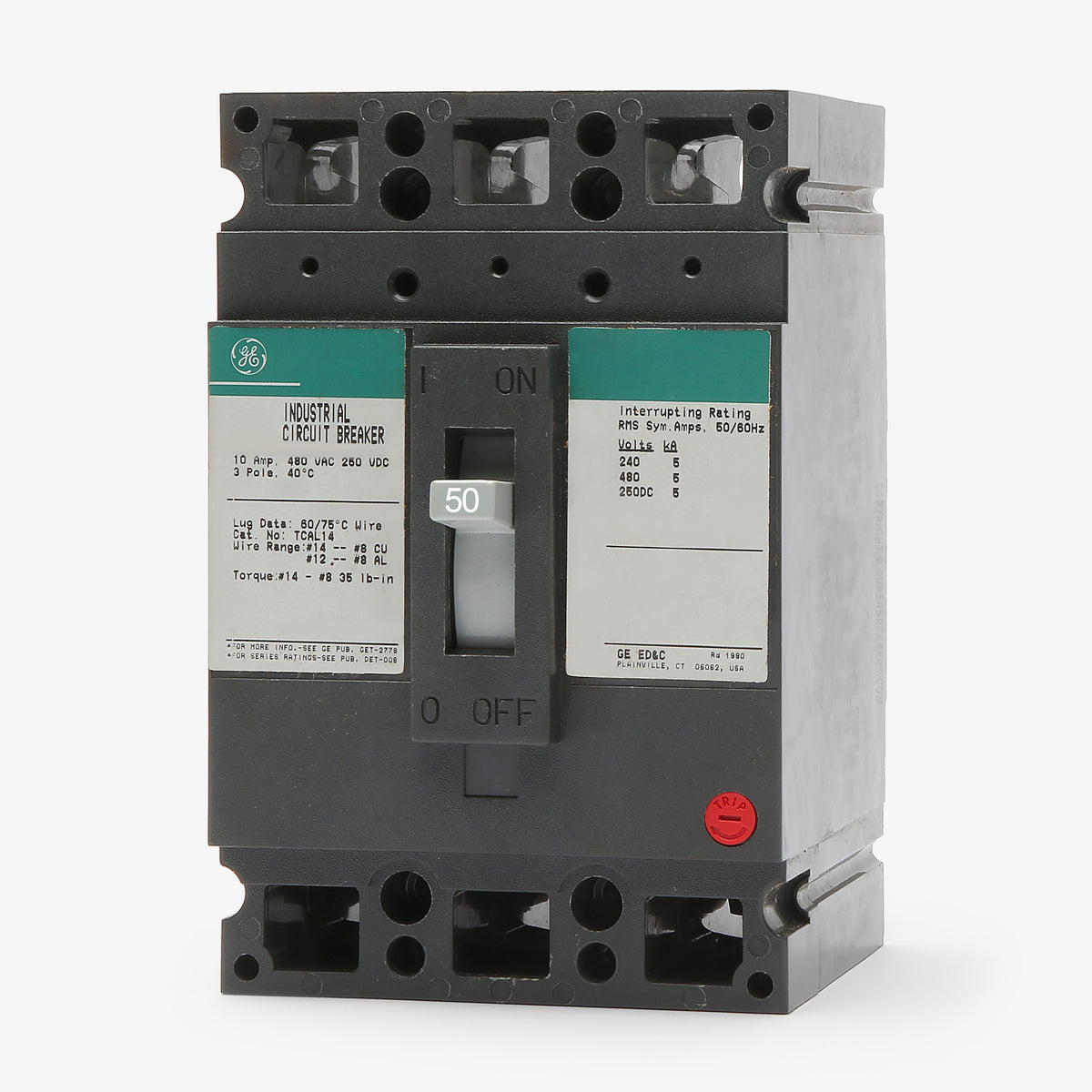

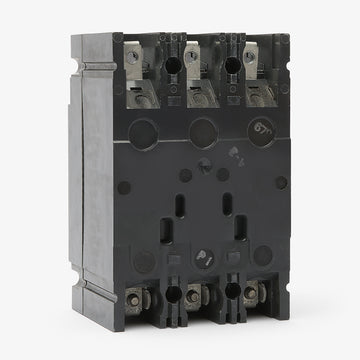

ABB / General Electric TED134050WL Molded Case Circuit Breaker
- 50A
- 3 Pole
- Unit Mount
ABB / General Electric
TED134050WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134050WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134050WL - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134050WL - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134050WL |
| Series | TED |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TED134050WL - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134050WL-R |
| Series | TED |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED134045WL
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136045WL
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134060WL
60A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the GE TED134050WL is a 3-pole, 50A molded case circuit breaker. It provides robust thermal-magnetic protection for reliable power distribution. Designed for unit mounting, this E-Frame breaker installs into individual enclosures, switchboards, and motor control centers. It can be replaced by the TEYD3050B using a mounting kit. Rated for 18kA at 480VAC, it includes factory-installed TCAL12 lugs and is HACR rated for HVAC applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134050WL |
| Series | TED |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat does the "WL" suffix mean on the TED134050WL breaker?

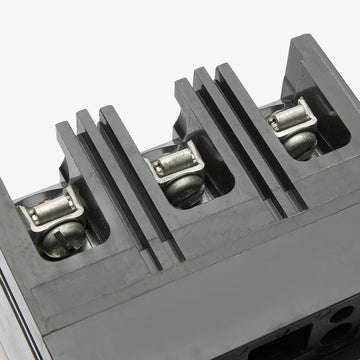

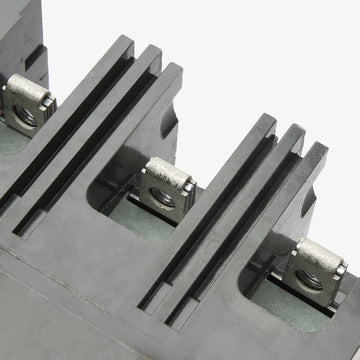

The "WL" suffix indicates that the circuit breaker comes from the factory with wire lugs already installed on both the line and load sides.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, legacy GE molded case circuit breakers, including the TED E-frame series, are now manufactured and supported under the ABB brand.
What types of panelboards are compatible with the TED134050WL?
This E-frame molded case circuit breaker is designed for use in GE A-Series and Spectra Series panelboards, as well as compatible motor control centers and switchboards.
Can I mount the TED134050WL in an individual standalone enclosure?
Yes, this unit mount breaker is compatible with GE E150-series surface or flush enclosures, such as the TE150S, for isolated standalone applications.
Is the trip unit on the TED134050WL interchangeable?
No, the TED series features a fixed thermal magnetic trip unit. The internal trip mechanism cannot be swapped or upgraded to a different amperage rating.
Can the TED134050WL be reverse fed?
Yes, GE TED frame thermal magnetic circuit breakers are suitable for reverse feed applications, allowing incoming line power to be safely supplied to the load terminals.
What wire sizes do the factory-installed lugs accept?
The included lugs on the 50-amp TED134050WL accept 14 to 3 AWG copper conductors and 12 to 1 AWG aluminum conductors.
Does the TED134050WL offer adjustable trip settings?
No, this breaker has a fixed thermal and fixed magnetic trip mechanism. Both the long time (L) overload and instantaneous (I) short-circuit protection functions are permanently preset from the factory.
