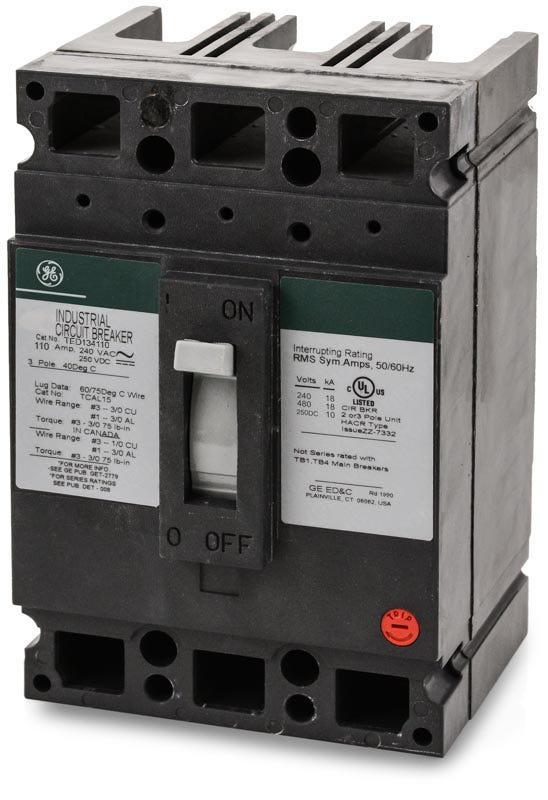

ABB / General Electric TED134110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
ABB / General Electric
TED134110
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric TED134110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134110 |
| Series | TED |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL15) |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TED134110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134110 |
| Series | TED |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL15) |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED134100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134125
125A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable overcurrent defense, the GE TED134110 is a 3-pole, 110A molded case circuit breaker designed for commercial and industrial facilities. It features a bolt-on mounting style specifically engineered for compatibility with GE A-Series and Spectra panelboards, as well as standard switchboards. This E-Frame breaker delivers an 18kAIC rating at 480VAC and utilizes fixed thermal magnetic trip technology (LI). It is HACR rated and fully capable of reverse feed applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134110 |
| Series | TED |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL15) |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TED134110 circuit breaker?
This breaker is designed for use in GE A-Series panelboards, GE Spectra panelboards, switchboards, and motor control centers.
What mounting hardware is required to install this breaker in a GE panelboard?
To install the TED134110 in compatible GE panelboards, you typically need the TED1DPK twin mounting hardware kit, which supports TED frame breakers up to 150A.
What wire sizes and materials are accepted by the lugs on the TED134110?
The factory lugs accept 3 AWG to 3/0 AWG copper wire, or 1 AWG to 3/0 AWG aluminum wire.
Can the TED134110 be used in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for DC applications. It provides a 10kAIC interrupting rating at both 250VDC and 500VDC.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, legacy GE E-Frame breakers like the TED134110 are now commonly branded and supported under the combined ABB / General Electric name.
What type of trip unit is installed in the TED134110?
It features a non-interchangeable thermal-magnetic trip unit with fixed thermal and fixed magnetic settings, providing standard Long-Time and Instantaneous (LI) protection.
