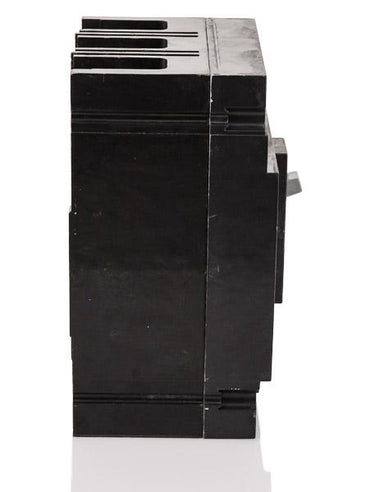

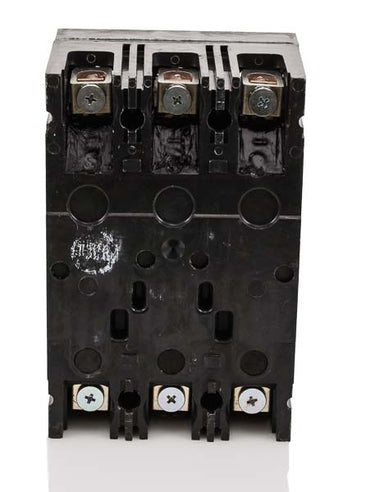

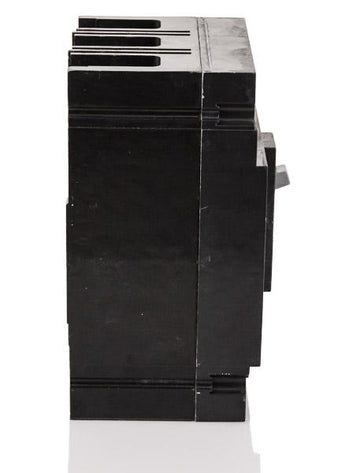

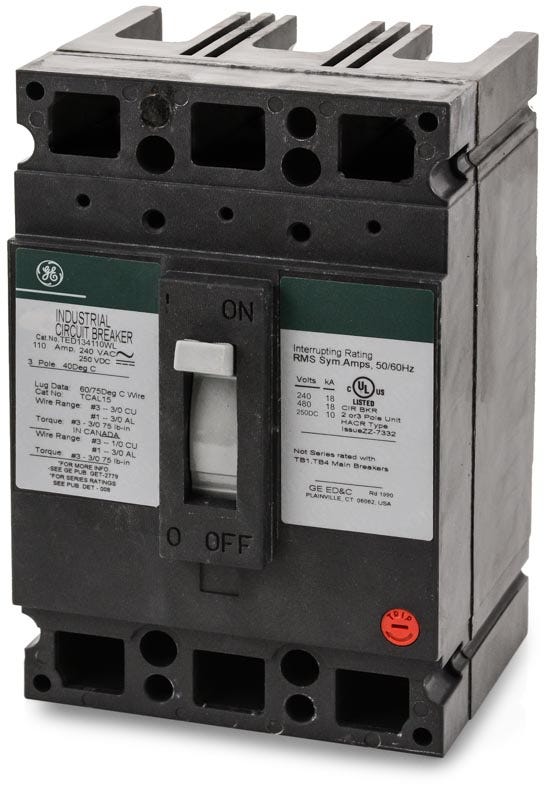

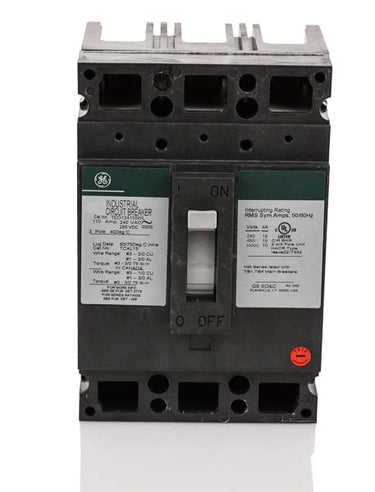

ABB / General Electric TED134110WL Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
ABB / General Electric
TED134110WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134110WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134110WL - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED134100WL
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136100WL
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136125WL
125A 3 Pole Molded Case Circuit Breaker
Description
Built for standalone industrial applications, this 110-amp thermal-magnetic breaker delivers reliable long-time and instantaneous protection. Unlike bolt-on variants, this unit-mount configuration installs into individual enclosures and switchboards. It includes TCAL15 line and load lugs, accommodating 3 AWG to 3/0 AWG conductors. With an 18kAIC rating at 480VAC, the device provides robust fault clearing and carries a HACR rating for heating and cooling equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134110WL |
| Series | TED |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5.1, HACR, UL 489, NEMA AB 1 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the "WL" suffix mean in the TED134110WL catalog number?
The "WL" suffix indicates that the circuit breaker includes factory-installed copper/aluminum (Cu/Al) line and load lugs for feed-through configurations.
Which panelboards are compatible with the TED134110WL circuit breaker?
This E150 frame breaker is designed to install into GE A-Series panelboards, Spectra Series panelboards, switchboards, and motor control centers.
Can the TED134110WL breaker be reverse fed?
Yes, GE TED series thermal magnetic circuit breakers are suitable for reverse feed applications.
Why might my TED134110WL breaker arrive with an ABB label instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this E150 frame breaker may be branded as either ABB or GE, but the physical dimensions, fit, and function remain identical.
Is the TED134110WL suitable for HVAC applications?
Yes, GE E150 line circuit breakers, including the TED series, are HACR rated for use with heating, air conditioning, and refrigeration equipment.
