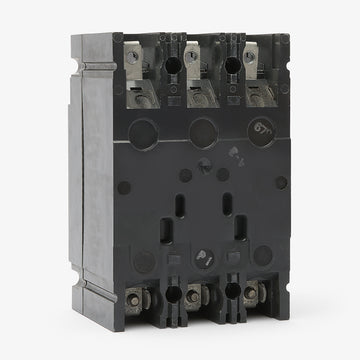

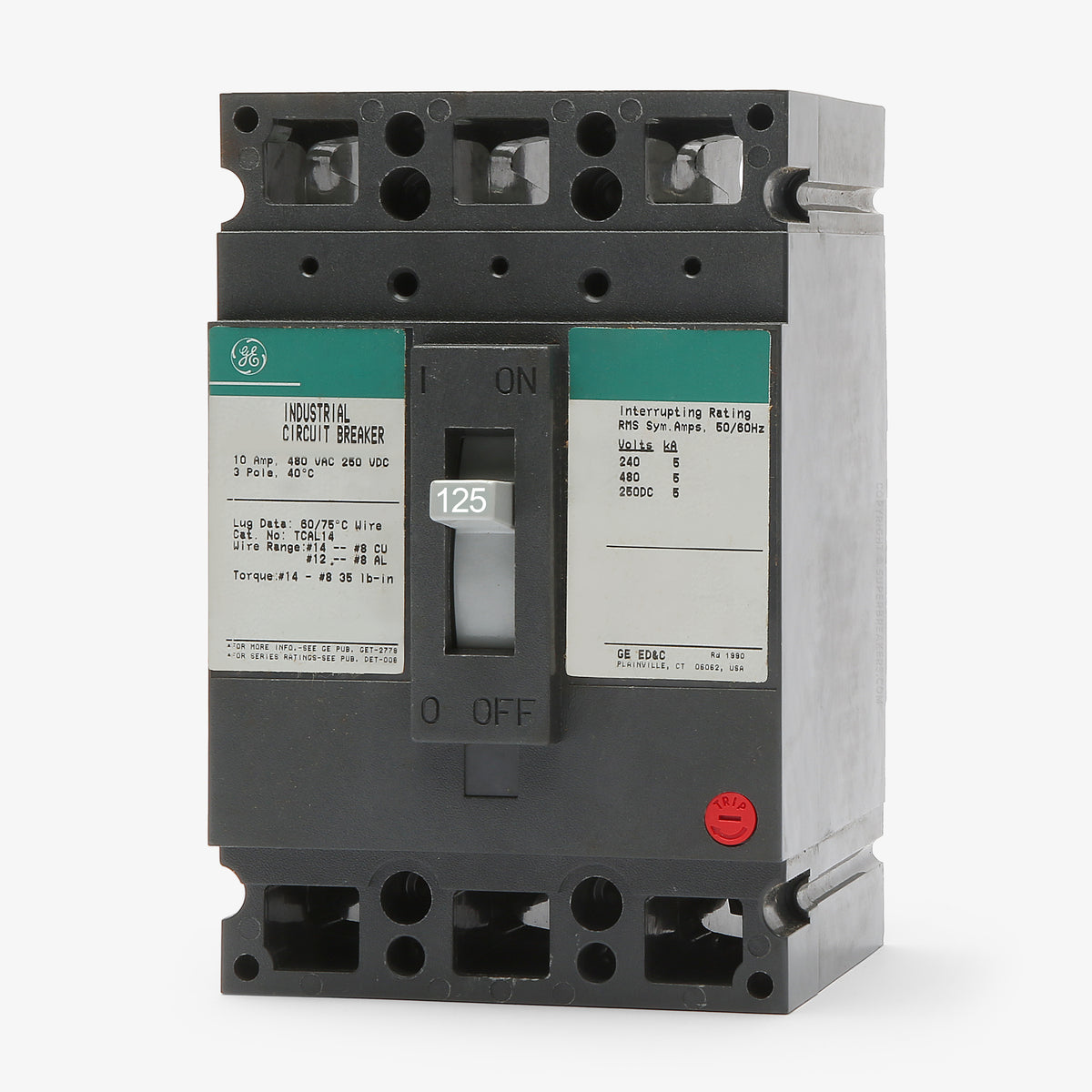

ABB / General Electric TED134125WL Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
ABB / General Electric
TED134125WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134125WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134125WL - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134125WL - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134125WL |
| Series | TED |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
ABB / General Electric TED134125WL - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134125WL-R |
| Series | TED |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED134110WL
110A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136110WL
110A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134150WL
150A 3 Pole Molded Case Circuit Breaker
Description
Designed for standalone applications, the GE TED134125WL is a 125A, three-pole molded case circuit breaker. The 'WL' suffix indicates it comes factory-equipped with line and load lugs (TCAL15), making it ready for immediate wiring in commercial and industrial settings. This unit mount MCCB is engineered for use in individual enclosures, switchboards, and motor control centers. It delivers 18kAIC interrupting capacity at 480VAC, utilizing a fixed thermal-magnetic trip unit for LI protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134125WL |
| Series | TED |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs

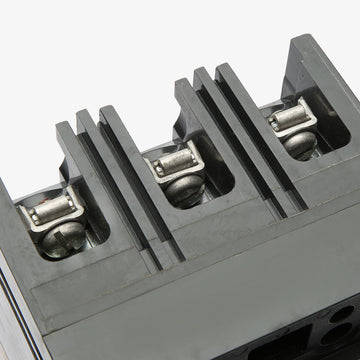

8 answersWhat does the WL suffix mean on the TED134125WL catalog number?
The WL suffix indicates that the circuit breaker is factory-equipped with copper/aluminum (Cu/Al) lugs on both the line and load sides.
Can the trip settings on the TED134125WL be adjusted?
No. This breaker features a fixed thermal-magnetic trip unit. It has a non-interchangeable trip design, meaning the trip thresholds cannot be modified in the field.
Is the TED134125WL suitable for reverse feed installations?
Yes. This GE E150 line breaker is suitable for reverse feed applications, meaning power can be safely supplied to either the line or load terminals.
Does this breaker carry a HACR rating?
Yes. Like most GE E150 frame breakers over 10 amps, the 125-amp TED134125WL is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
What type of mounting does the TED134125WL require?
This is a unit-mount circuit breaker. It is designed to be bolted or mounted directly into individual enclosures, motor control centers, and switchboards, rather than snapping onto a standard panelboard bus.

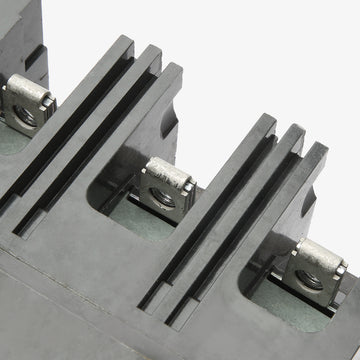

What wire sizes are supported by the factory lugs?
The standard factory lugs accept copper wire ranging from 3 AWG to 3/0 AWG, and aluminum wire from 1 AWG to 3/0 AWG.
Why is this product listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. Legacy GE molded case circuit breakers like the TED series are now produced under the ABB brand, but they maintain the exact same physical footprint, mounting, and catalog numbers for direct replacement.
What frame size family does this breaker belong to?
The TED134125WL is part of the legacy GE E150 product line, which is built on a 150-amp maximum E Frame footprint.
