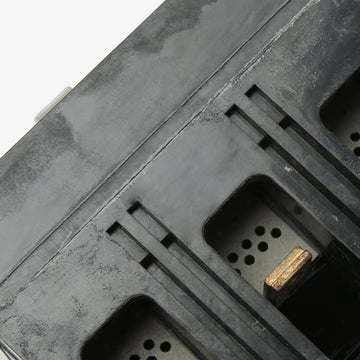

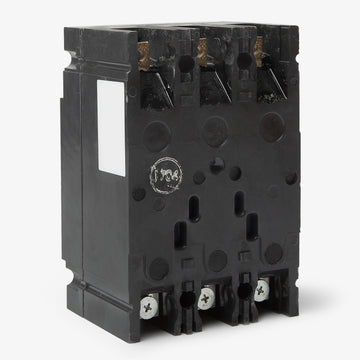

ABB / General Electric TED134150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
ABB / General Electric
TED134150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134150 |
| Series | TED |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Switchboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TED134150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134150 |
| Series | TED |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Switchboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED134125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136110
110A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the GE TED134150 is a 3-pole, 150A molded case circuit breaker. It provides robust overcurrent protection for demanding electrical systems. This bolt-on MCCB installs into GE A-Series panelboards and Spectra Series switchboards. As a legacy E-Frame component, it serves as a reliable replacement and can be substituted with the TEYD3150B. It features fixed thermal-magnetic trip technology, an 18kAIC rating at 480VAC, and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134150 |
| Series | TED |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Switchboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards are compatible with the TED134150 circuit breaker?
This bolt-on E-frame MCCB is designed for installation in GE A-Series panelboards and Spectra Series switchboards.
Are ABB and GE TED134150 breakers the exact same product?
Yes. ABB acquired GE Industrial Solutions, so this E-frame breaker may feature either ABB or General Electric branding. The breakers are identical in form, fit, and function, and are fully interchangeable.
Is the TED134150 breaker suitable for reverse feed installations?
Yes. GE TED frame molded case circuit breakers are suitable for reverse feeding, allowing flexibility in wiring line and load connections.

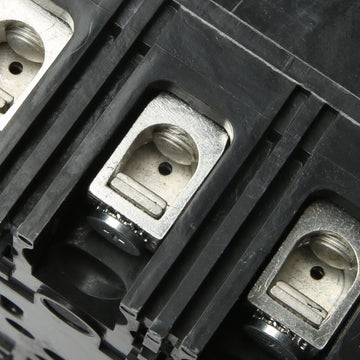

What is the correct replacement lug kit for the TED134150?
The standard lug terminal kit for GE 150A E-frame breakers is the TCAL15. It accommodates 3 to 3/0 AWG copper conductors or 1 to 3/0 AWG aluminum conductors.
Is the TED134150 circuit breaker HACR rated?
Yes, this thermal magnetic breaker is HACR rated, meaning it is certified to provide overcurrent protection for heating, air conditioning, and refrigeration equipment.
