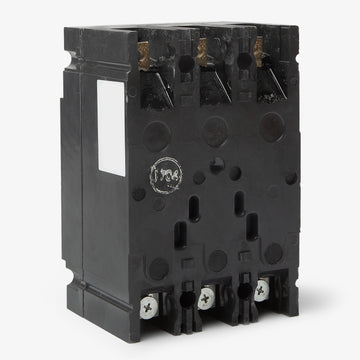

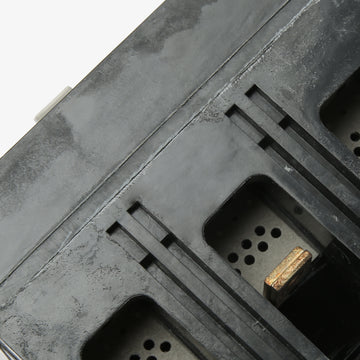

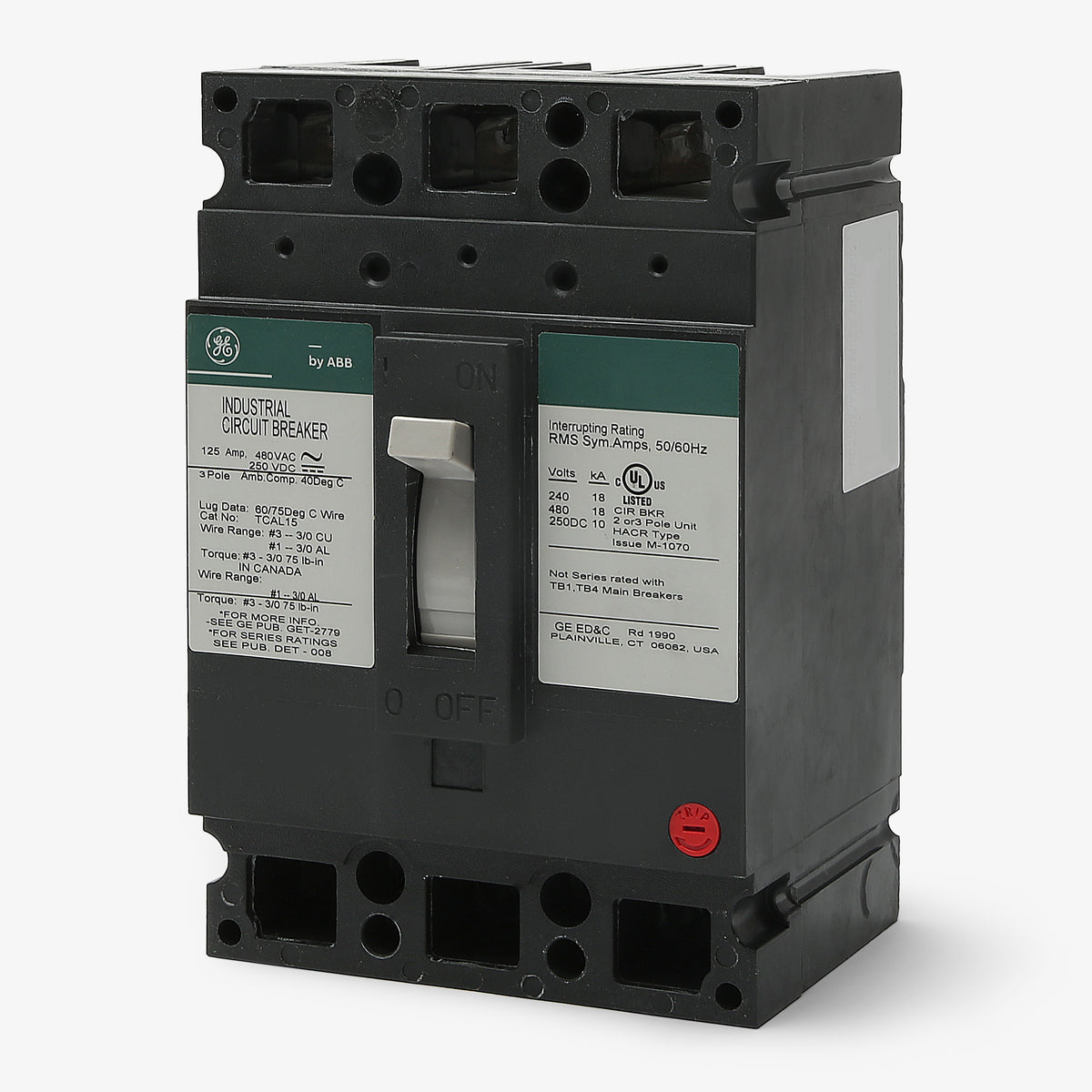

ABB / General Electric TED136125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
ABB / General Electric
TED136125
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED136125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED136125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED136125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TED136125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED136110
110A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134150
150A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE TED136125 is a 3-pole, 125A molded case circuit breaker. It delivers dependable thermal-magnetic protection within the legacy E-Frame family. This bolt-on unit installs into GE A-Series and Spectra Series panelboards. It serves as a replacement for THED136125 breakers, helping maintain existing infrastructure without full panel upgrades. Rated 18kAIC at 480V, it features reverse feed capability and HACR certification.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the TED136125 breaker?
This bolt-on breaker is designed for installation in GE A-Series and GE Spectra Series panelboards.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Legacy GE breakers like the TED series are now manufactured and supported under the ABB brand portfolio, but they retain their original GE catalog numbers for direct replacement.
What wire sizes are accepted by the standard lugs on this breaker?

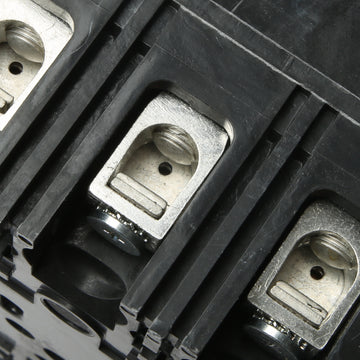

The factory lugs accept 3 AWG to 3/0 AWG copper wire, or 1 AWG to 3/0 AWG aluminum wire.
Is the TED136125 rated for direct current (DC) applications?
Yes, this thermal magnetic breaker is rated for DC systems. It provides a 10kA interrupting capacity at both 250VDC and 500VDC.
Are the thermal and magnetic trip elements adjustable on this model?
No. The TED136125 features fixed thermal and fixed magnetic trip elements. It does not offer adjustable dial settings for long time or instantaneous pickup.
What frame size classification does this breaker fall under?
It is part of the GE E150 frame family. Knowing the frame type is necessary when selecting compatible enclosures, handle mechanisms, or internal accessories.
